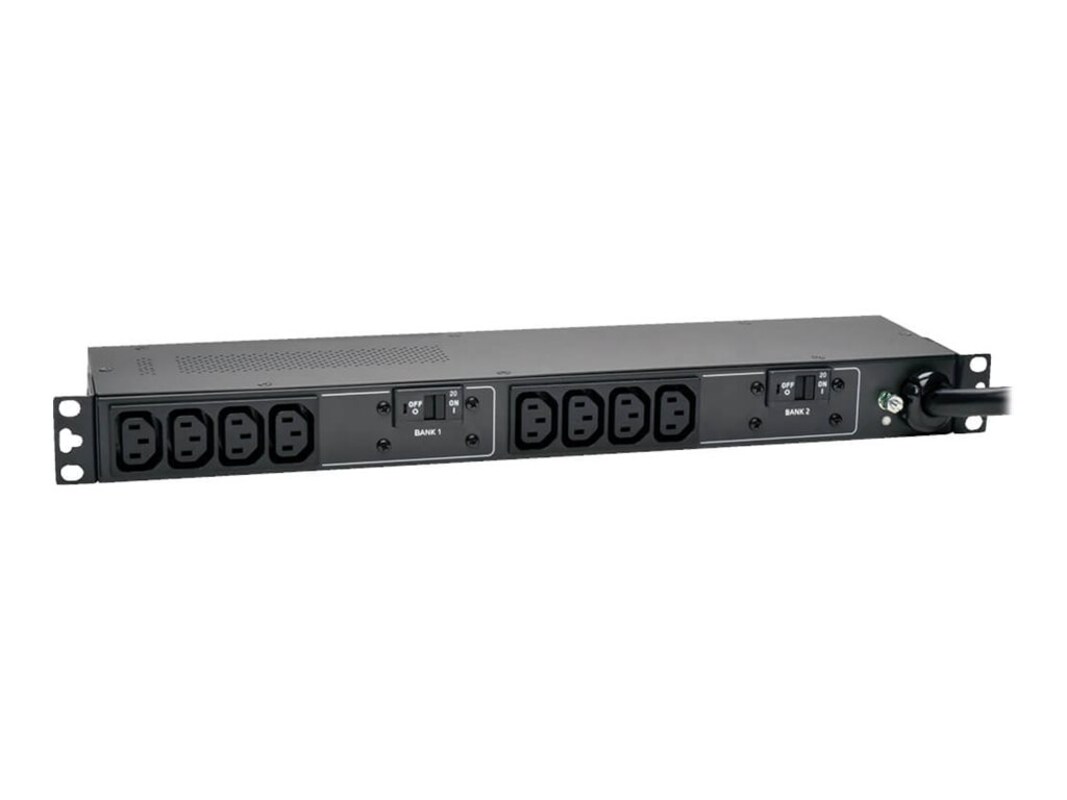

Tripp Lite Basic Power Distribution Units/PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
-
6.32 lbs
-
Key Features
32A single phase 230V Basic Power Distribution Unit/PDU
Attached Blue IEC-309 32A (2P+E) 230V input plug with 12ft/3.6m line cord
1U horizontal rackmount format installs in one rack space
(10) C13 outlets (8 front-facing/2 rear-facing)
Mounting flanges are reversible front or rear facing installation
Mounting flanges support installation in 2- and 4-post racks, with additional support for wall-mount and under-counter installation formats
Certifications
Tested to Tested to UL60950-1, CE (EN 60950-1), CE Class A, RoHS -
# Ports: 10Connector: Power IEC 309 EN 60309 32AConnector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 60309 32A
-
PDU, documentation
-
Color: BlackForm Factor: 1U RackmountForm Factor: Rack-mountableManufacturer Product Line: Eaton Tripp Lite SeriesModel: PDU Basic 230V 32A 7.4kW C13 10 Outlet IEC309 Blue Horizontal 1U
-
1.75"h x 17.5"w x 5.2"d
-
Output Receptacles: (10) C13
Outlet Type: IEC-C13
PDU Plug: IEC-309 32A BLUE (2P+E)
Input Cord Length: 12ft/3.6m -
Voltage Provided: 230VVoltage Provided: AC 220/230/240V
-
OUTPUT
Output Capacity: 7.4kW (230V), 7kW (220V), 7.7kW (240V); 32A maximum total output, 20A max per breakered load bank, 10A max per C13 outlet
Frequency Compatibility: 50/60Hz
Output Nominal Voltage: 200-240V nominal, single phase
Overload Protection: Two 20A double pole breakers power (5) C13 outlets each
INPUT
PDU Input Voltage: 200V, 208V, 220V, 230V, 240V
Recommended Electrical Service: 32A, 230V
Maximum Input Current: 32A
Input Phase: Single-Phase -
This product is subject to our return policy. Please see our complete return policy for details.
-
7.07 lbs
-
Compliant Standards: CE Class ACompliant Standards: EN 60950-1Compliant Standards: RoHSCompliant Standards: UL 60950-1
-
39121017
-
Warranty Period: 2 years
