Tripp Lite 8K 60Hz 40Gbps USB4 USB-C M M Cable with 240W PD Charging, Black, 1.2m

Print page
Item#: 41793915 // MFG Part#: U521-1P2M-BK // By: Tripp Lite

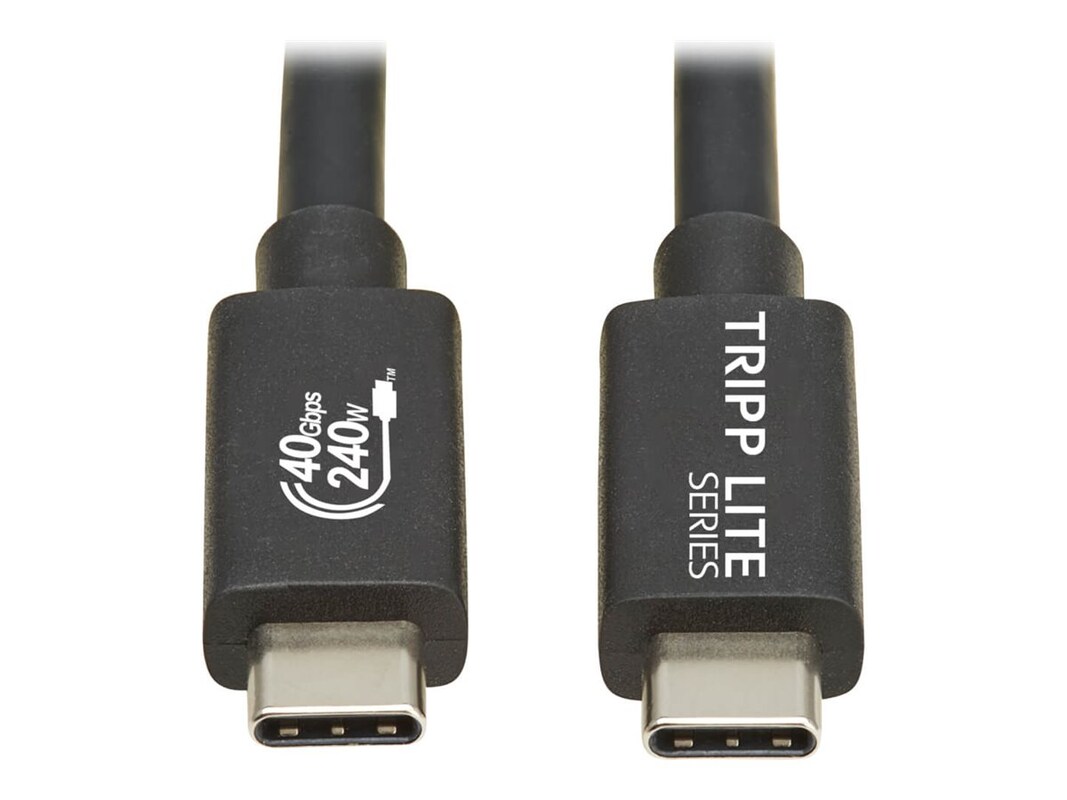

Tripp Lite U521-1P2M-BK Main Image from Front
Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
  • In Stock
  • Ships in 48 Hours
Color: Black Color: Black
Length: 3.9 ft Length: 3.9 ft
Ordering Information
$34.95
Qty:
  • 24 pin USB-CUSB Type C Connector(s)
  • USB 2.0
  • USB 3.0
  • USB 3.1
  • USB 3.2
  • USB4
  • Thunderbolt 3, RoHS, CE, FCC Part 15 A, UKCA, WEEE Compliant
  • Black

This USB4 40Gbps cable (M/M) transmits across two bidirectional lanes, supporting speeds up to 40 Gbps, which is eight times faster than USB 3.0/3.1/3.2. Unlike previous USB generations, the USB4 40Gbps cable has the ability to allocate resources. Instead of splitting video and data equally between its two lanes, this cable allows the connected display as much bandwidth as it needs, while saving all remaining bandwidth for high-speed data transfers. This makes the cable perfectly suited for 4K or 8K video streaming and editing, as well as transferring large RAW video or CAD files.



By connecting a 4K or 8K display to a host device that supports DisplayPort Alt Mode 2.1, this cable can use both high-speed lanes to transmit 4K or even 8K video at 60 Hz in one direction at 80 Gbps maximum speed with 30-bit Deep Color, HDR and 4:4:4 chroma subsampling. Connected to a host that supports DisplayPort Alt Mode 1.4, the U521-1P2M-BK can transmit 8K at 30 Hz.



Though both connected devices must support USB4 40Gbps for the cable to reach its full potential, this cables is backward compatible with USB 3.x, USB 2.0 and Thunderbolt 3 devices. It connects two USB-C devices, including MacBooks, Chromebooks, Windows laptops, Kindles, game consoles, smartphones, external hard drives, docking stations and wall chargers. It is compatible with all USB-C and Thunderbolt 3 devices, enabling use in existing installations while preparing for future upgrades.



The cable supports Power Delivery (PD) 3.1 charging of the connected PD Charging-compliant device. It carries power output up to 48V 5A (240W), which is sufficient for fast-charging and powering your MacBook or other mobile device, including the latest iPhone and other smartphones with a USB-C connector.



This cable meets the high standards of USB-IF (USB Implementers Forum, Inc.), a non-profit organization consisting of companies that developed the USB specification. Receiving USB-IF certification means the cable meets the industry’s highest environmental, mechanical and electrical standards. It operates with your USB peripherals, adapters and cables with top efficiency and safety.
