Tripp Lite Uninterruptible Power Supply (UPS) Finder
-
In Stock
- Ships in 1-2 Business Days
Ideal protection for PCs, workstations and other devices running Windows NT and other operating systems requiring contact closure serial interface for unattended shutdown.
Ordering Information
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details

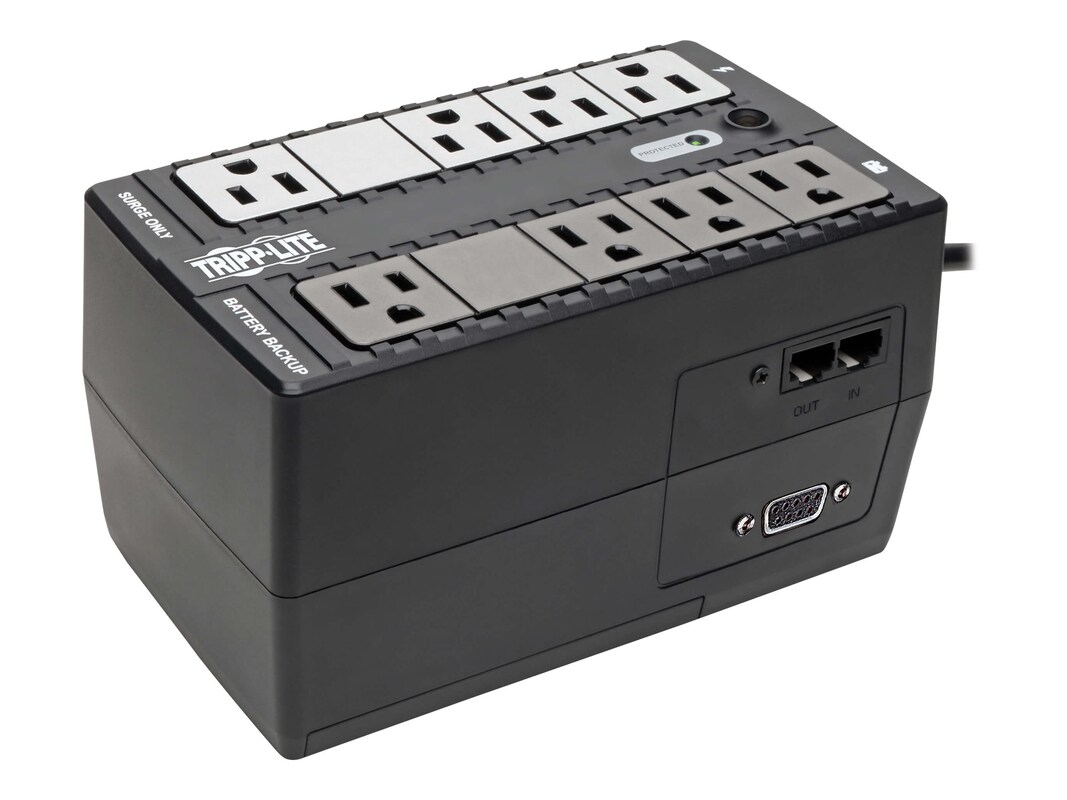

The INTERNET550SER ultra-compact standby UPS with a built-in DB-9 serial monitoring port protects PCs, network workstations, and other systems reliant upon a basic communications interface for UPS monitoring and unattended system shutdown. This UPS maintains AC output during blackouts and brownouts starting at 99V. The item includes the DB-9 monitoring port with cabling, TEL/DSL line surge suppression jacks, surge only outlets and LED indicators.
-
6.50 lbs
-
LEDS ALARMS & SWITCHES
LED Indicators: (2) LEDs indicate power status and overload/check battery status
Alarms: Audible alarm indicates power-failure and overload status
Switches: Combination switch controls on/off power status and self-test operation
SURGE / NOISE SUPPRESSION
AC surge suppression: 420 joules
AC suppression response time: Instantaneous
Dataline suppression: (1) line TEL/DSL protection (1 in / 1 out)
EMI / RFI AC noise suppression: Yes
PHYSICAL
Installation form factors supported with included accessories: Tower; Ultra-compact desktop; Wallmount (using keyhole mounting tabs)
Primary form factor: Desktop
COMMUNICATIONS
Communications interface: DB9 Serial
PowerAlert software: Free download from www.tripplite.com
Communications cable: DB9 interface cable included
WatchDog compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer time: 2-4 milliseconds
Low voltage transfer to battery power (setpoint): 99V
High voltage transfer to battery power (setpoint): 139V
SPECIAL FEATURES
Cold Start (startup in battery mode during a power failure): Cold-start operation supported
CERTIFICATIONS
UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); Meets FCC Part 68 / Industrie Canada (telecommunications); RoHS (Reduction of Hazardous Substances) -
# Ports: 8Communication Interface: Serial (RS-232)Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-15 (M)Connector: Power NEMA 5-15P
-
UPS, DB9 serial cable, documentation
-
Attributes: RJ-11 line protectionAttributes: StandbyColor: BlackEnclosure Type: InternalForm Factor: DesktopForm Factor: ExternalManufacturer Product Line: Eaton Tripp Lite SeriesModel: UPS 550VA 300W Desktop Battery Back Up Compact 120V 50/60Hz DB9 RJ11 PCWarranty Period: 3 yearsWeight Taxonomy: 11.02lbs
-
3.1"h x 10.9"w x 5.7"d
-
(8) NEMA 5-15R outlets (4 UPS/surge, 4 surge only)
(1) NEMA 5-15P input cord, 6ft; Space saving right angled input plug
(1) DB-9 serial interface
(2) RJ-11 protection (1-in, 1-out) -
Battery Run Time (max): 1.2minBattery Run Time (max): 3.5minPower Capacity (VA): 550VAPower Provided: 300Power Provided: 300WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 12VVoltage Provided: 120V
-
OUTPUT
Output Capacity: 550VA/300W
Nominal Output Voltages Supported: 115v; 120v
Frequency compatibility: 60Hz
Output voltage regulation (Battery mode): 115V (+/- 5%)
Output AC waveform (AC mode): Sine wave
Output AC waveform (battery mode): PWM sine wave
INPUT
Rated input current (at maximum load): 10A
Nominal Input Voltages Supported: 120VAC
Recommended Electrical Service: 15A, 120V
BATTERY
Full load runtime: 3.5 minutes (300W)
Half load runtime: 10 minutes (150W)
DC system voltage: 12VDC
Battery recharge rate (included batteries): Less than 15 hours from 10% to 90% -
This product is subject to our return policy. Please see our complete return policy for details.
-
6.85 lbs
-
Compliant Standards: CULCompliant Standards: FCC Class B certifiedCompliant Standards: FCC Part 68Compliant Standards: NOMCompliant Standards: UL 1778
-
