- QSFP-DD Connector(s)
- SFF-8665, RoHS, REACH Compliant
- SilverBlack
Connect Network Equipment at Speeds Up to 400 Gbps

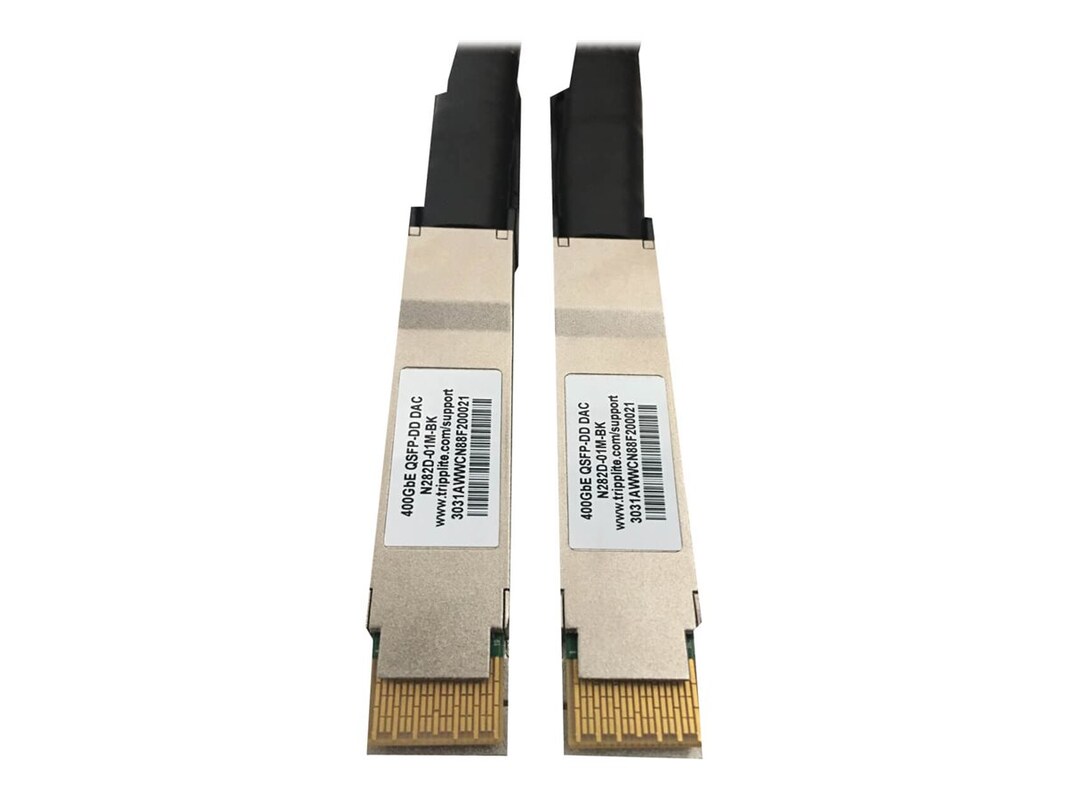

The N282D-01M-BK QSFPDD to QSFPDD 400GbE Passive DAC Copper InfiniBand Cable provides next-generation performance by combining four 28 Gbps SFP channels into one high-density cable. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets.
Top-of-the-Line Construction
This one-meter copper cable integrates a 400G Ethernet-optimized (400 GbE) 38-position "board-as-connector" design with zinc die-cast QSFPDD connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 400-Gigabit Ethernet (100GBASE-CR4), 128G Fibre Channel and EDR 4x InfiniBand. Flexible30 AWG conductors maintain a smooth high-frequency response. The N282D-01M-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss.
Fully Compliant and Compatible
It's fully compliant with the MSA (Multi-Source Agreement) SFF-8665 architecture for guaranteed compatibility with all QSFP and QSFP+ ports, as well as RoHS and IEEE 802.3bj.
The N282D-01M-BK QSFPDD to QSFPDD 400GbE Passive DAC Copper InfiniBand Cable provides next-generation performance by combining four 28 Gbps SFP channels into one high-density cable. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets.
Top-of-the-Line Construction
This one-meter copper cable integrates a 400G Ethernet-optimized (400 GbE) 38-position "board-as-connector" design with zinc die-cast QSFPDD connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 400-Gigabit Ethernet (100GBASE-CR4), 128G Fibre Channel and EDR 4x InfiniBand. Flexible30 AWG conductors maintain a smooth high-frequency response. The N282D-01M-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss.
Fully Compliant and Compatible
It's fully compliant with the MSA (Multi-Source Agreement) SFF-8665 architecture for guaranteed compatibility with all QSFP and QSFP+ ports, as well as RoHS and IEEE 802.3bj.
-
Supports data speeds up to 400 Gb for newer switches and network devices
Recommended for high-density switches that support QSFP-DD transceivers
Push/pull tabs on QSFP-DD plugs for easy one-handed connection/disconnection
Backward compatible with 40/100 GbE networks to facilitate future-proofing
Ideal for short connections in data centers, telco rooms and enterprise wiring closets -
Connectivity Technology: TwinaxialConnector: QSFP-DDNetwork Cable Type: 400GBase direct attach cable
-
cable, documentation
-
Color: BlackColor: SilverColor Family: BlackColor Family: SilverLength: 3.3ftManufacturer Product Line: Eaton Tripp Lite SeriesMaterial: PVCModel: 400G Passive Twinax Direct-Attach Cable (QSFP-DD/QSFP-DD), Black/Silver, 1 m
-
(2) QSFP-DD (M)
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0.51 lbs
-
Compliant Standards: REACHCompliant Standards: RoHSCompliant Standards: SFF-8665
-
26121600
-
Warranty Period: Limited lifetime
