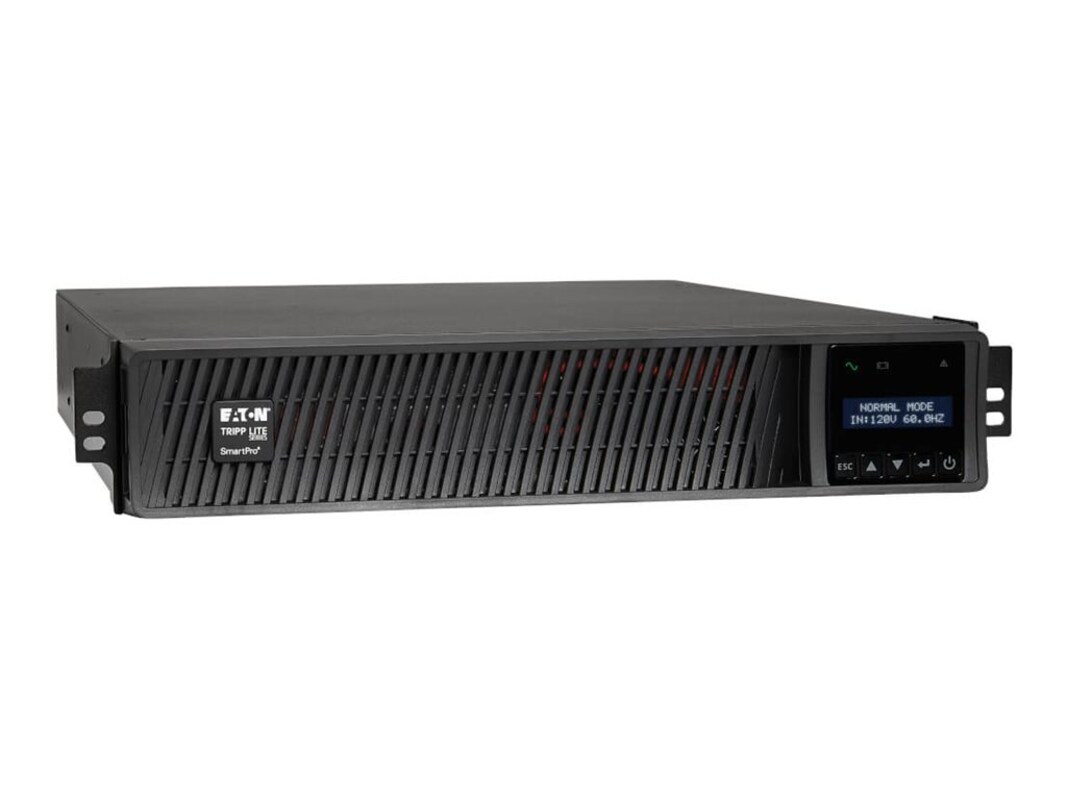

Tripp Lite 3KVA 120V Line-Interactive Sine Wave UPS Extended-Run SNMP 2U LCD USB RS-232 EPO (Smart3000RMXLN)
Ordering Information
Was
$2,311.20
$119.48 (5%)
Now
$2,191.72
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details
Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 95% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and Pre-installed SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options.
-
46.50 lbs
-
Key Features
Tripp Lite SMART3000RMXLN line interactive 2U rack/tower UPS with 3000VA / 3kVA capacity and extended runtime options
Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V
NEMA L5-30P input plug; 8 NEMA 5-15/20R and 1 L5-30R output receptacles, Two independently switchable output load banks
Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
Internal batteries offer 10 minutes at 50% load (1440W) and 3 minutes at 100% load (2880W)
Extended runtime is available with optional BP48V24-2U (limit 1) OR BP48V60RT3U (no limit) external battery packs
External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
LCD interface also supports a number of advanced user setup and operating preferences
Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
Built-in USB, RS-232 and pre-installed SNMPWEBCARD accessory monitoring options
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable
LEDs, ALARMS & SWITCHES
Front panel LCD: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
Alarms: Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Alarm cancel operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Switches: 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
PHYSICAL
Installation form factors supported with included accessories: 4 post 19 inch rackmount (mounting rail kit included)
Installation form factors supported with optional accessories: 2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND)
Primary form factor: Rackmount
Installed whole system total rack space height (rack spaces): 2U
Secondary form factor: Tower (requires optional 2-9USTAND)
UPS housing material: Steel
Cooling method: Fan
SPECIAL FEATURES
Cold Start (startup in battery mode during a power failure): Cold-start operation supported
High availability UPS features: Hot swappable batteries
Green & high efficiency features: Greater than 95% efficiency - GREEN UPS; Individually controllable load banks; Schedulable daily hours of economy mode operation
CERTIFICATIONS
UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI) -
# Ports: 9Communication Interface: EthernetCommunication Interface: Serial (RS-232)Communication Interface: USBConnector: Power NEMA 5-15 (F)Connector: Power NEMA 5-20 (F)Connector: Power NEMA L5-30Connector: Power NEMA L5-30 (F)Connector: Power NEMA L5-30 (M)
-
UPS, SNMP web card, PowerAlert Software with USB, Serial & EPO cabling, 4-post rackmount installation kit, documentation
-
Attributes: Line interactiveColor: BlackEnclosure Type: Plug-in moduleForm Factor: 2U RackmountForm Factor: ExternalManufacturer Product Line: Eaton Tripp Lite SeriesModel: SmartPro 3000VA 3000W 120V Line-Interactive Sine Wave Battery BackupWeight Taxonomy: 72.97lbs
-
3.5"h x 17.3"w x 13.5"d
-
Built-in UPS output receptacles: (8) 5-15/20R, (1) L5-30R outlets
Built-in controllable switched load banks: Two switchable single outlet 5-15/20R load banks
UPS input connection type: L5-30P
UPS Input cord length: 10ft (3m) -
Battery Run Time (max): 3minBattery Run Time (max): 4.9minPower Capacity (VA): 3000VAPower Provided: 2.88kWPower Provided: 2880WPower Provided: 3kWSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 120VVoltage Provided: 48V
-
OUTPUT
Output Capacity: 3000VA/2880W
Output power factor: 0.96
Nominal Output Voltage Supported: 120V
Frequency compatibility: 60Hz
Output voltage regulation (line mode): 120V (+6%, -14%)
Output voltage regulation (battery mode): +/-5%
Output AC waveform (AC mode): Pure Sine wave
Output AC waveform (battery mode): Pure Sine wave
INPUT
Rated input current (at maximum load): 24A
Nominal Input Voltage Supported: 120VAC
Recommended Electrical Service: 30A, 120V
BATTERY
Full load runtime: 3 min (2880w)
Half load runtime: 10 min. (1440w)
Expandable battery runtime: Extended runtime supported via optional external battery packs
External battery pack compatibility: BP48V24-2U (limit 1); BP48V60-3U (multi-pack compatible)
DC system voltage: 48VDC
Battery recharge rate (included batteries): Less than 4.5 hours from 10 to 90%
Replacement battery cartridge (internal UPS battery replacement): RBC58-2U
Battery Access: Front panel battery access door
Battery replacement description: Hot-swappable, replaceable batteries
VOLTAGE REGULATION
Voltage regulation description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145V
Overvoltage correction: Input voltages between 127 and 145V are reduced by 12%
Undervoltage correction: Input voltages between 104 and 83V are boosted by 14%
SURGE / NOISE SUPPRESSION
UPS AC suppression rating: 570 Joules
EMI / RFI AC noise suppression: Yes
AC suppression response time: Instantaneous -
Remote Management Protocol: SNMP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
85.9 lbs
-
Compliant Standards: CSACompliant Standards: FCC Part 15 ACompliant Standards: NOMCompliant Standards: UL 1778
-
39121011
-
Warranty Information: Requires product registrationWarranty Period: 3 years
