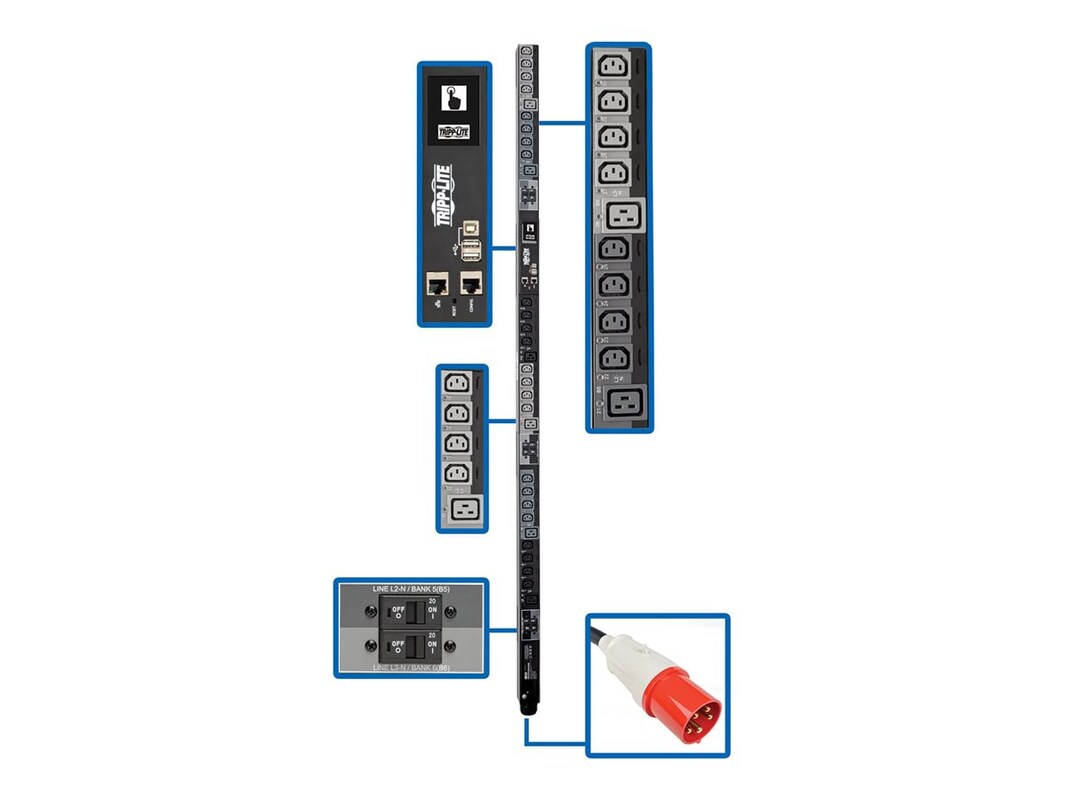

Distributes, Monitors and Manages Network-Grade AC Power
? 27.7kW 380/220V 400/230V switched PDU with 3-phase input
? Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components
? IEC 309 63A Red 380/400V plug with 1.8m cord connects to compatible AC power source
? Firmware upgrades support future product enhancements
30 Switched 220/230V Outlets Distribute AC Power
? 24 C13 and 6 C19 outlets split into 6 separately breakered load banks
? Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
? Plug-lock insert sleeves prevent cables from becoming accidentally disconnected
Color Touchscreen LCD
? Reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy
? Generates unique QR code for read-only access to PowerAlert Device Manager via mobile device
? Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials
Built-In LX Platform Interface
? Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
? Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
? Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
? No Java required
Broad Communications Compatibility
? Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
? Supports automatic and manual assignment of IP address
Essential Safety Features
? Tiered access allows administrator and guest to log in via web browser
? Immediate alert notifications via email or SNMP traps
? Supports user-specified alarm notification thresholds
? Real-time clock backup maintains day/date even if PDU is unpowered
Easy 0U Installation in EIA-Standard 19 in. Racks
? Mounts vertically using included toolless buttons or rack-mounting brackets
? Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant
? Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
? 27.7kW 380/220V 400/230V switched PDU with 3-phase input
? Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components
? IEC 309 63A Red 380/400V plug with 1.8m cord connects to compatible AC power source
? Firmware upgrades support future product enhancements
30 Switched 220/230V Outlets Distribute AC Power
? 24 C13 and 6 C19 outlets split into 6 separately breakered load banks
? Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
? Plug-lock insert sleeves prevent cables from becoming accidentally disconnected
Color Touchscreen LCD
? Reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy
? Generates unique QR code for read-only access to PowerAlert Device Manager via mobile device
? Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials
Built-In LX Platform Interface
? Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
? Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
? Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
? No Java required
Broad Communications Compatibility
? Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
? Supports automatic and manual assignment of IP address
Essential Safety Features
? Tiered access allows administrator and guest to log in via web browser
? Immediate alert notifications via email or SNMP traps
? Supports user-specified alarm notification thresholds
? Real-time clock backup maintains day/date even if PDU is unpowered
Easy 0U Installation in EIA-Standard 19 in. Racks
? Mounts vertically using included toolless buttons or rack-mounting brackets
? Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant
? Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
-
Connector: Power IEC 60309 63A
-
Color: BlackForm Factor: Rack-mountableManufacturer Product Line: Eaton Tripp Lite SeriesModel: 27.7kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309 63A Red 380/400V, 0U, TAAWeight Taxonomy: 17.7lbs
-
Power Provided: 27.7kWVoltage Provided: AC 220-230V
-
Remote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: SMTPRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2Remote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
24.91 lbs
-
Compliant Standards: TAACompliant Standards: Yes
-
39121017
-
Warranty Period: 2 years
