Temporarily Out-of-Stock
- Call for next available delivery
Ordering Information
$199.71
Quick View
Getting Details
- MTP/MPO multi-modeMTP Connector(s)
- IEEE 802.3ae/OM4, RoHS Compliant
- Magenta

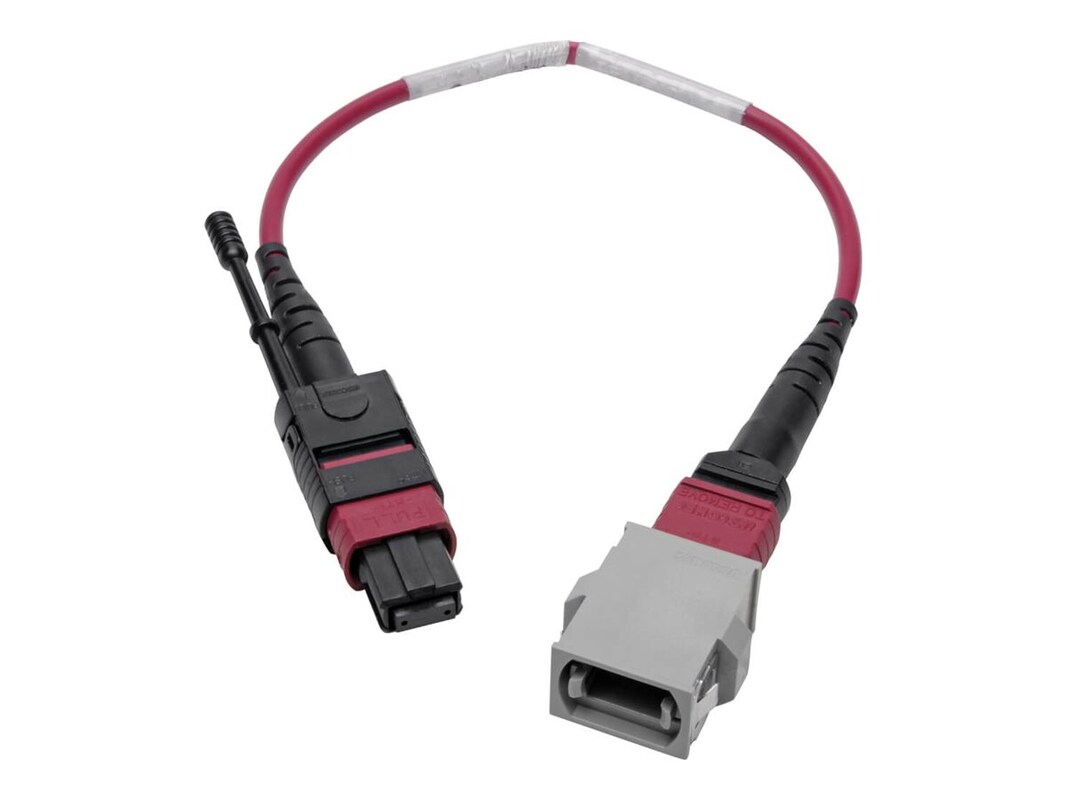

The N846-08N-A2B MTP/MPO Parallel Optics Base-8 Migration Fiber Adapter (M/F) is an eight-inch patch cable that supports 40 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers. It saves you time and money by converting legacy 12-fiber Method A cables to Method B Polarity for compatibility with Parallel Optics fiber mapping in Base-8 40GBASE-SR4 and 100GBASE-SR4 applications.
It’s colored magenta for instant identification as an OM4 cable. The N846-08N-A2B is ideal for use with high-density feed-through cassettes, such as Tripp Lite’s N482 and N484 Series.
The cable has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards. The push/pull tab connector makes the cable easy to install and remove with one hand.
Backward compatible with existing 50/125 fiber, the N846-08N-A2B has 50/125 duplex (zipcord) fiber made from glass, as well as a plenum-rated OFNP jacket for connecting network components in drop ceilings, walls and ducts.
It’s colored magenta for instant identification as an OM4 cable. The N846-08N-A2B is ideal for use with high-density feed-through cassettes, such as Tripp Lite’s N482 and N484 Series.
The cable has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards. The push/pull tab connector makes the cable easy to install and remove with one hand.
Backward compatible with existing 50/125 fiber, the N846-08N-A2B has 50/125 duplex (zipcord) fiber made from glass, as well as a plenum-rated OFNP jacket for connecting network components in drop ceilings, walls and ducts.
-
Designed to extend high-density connections between network equipment in telecommunication rooms and data centers
Converts legacy 12-fiber Method A Polarity cables to Method B Polarity for use in Base-8 applications
Supports speeds up to 40 GbE/100 GbE
Backward compatible with existing 50/125 fiber
Magenta-colored for identification as an OM4 cable
12-fiber male/female connectors
Push/pull tab connector easy to install and remove with one hand
100% tested for low insertion loss and back reflection
50/125 duplex glass fiber construction
Meets current IEEE 802.3ae and TIA standards
Plenum-rated OFNP jacket perfect for ceilings, walls and ducts
Jacket features serial number for quality control and traceability -
Connectivity Technology: Fiber opticConnector: MTPConnector: MTP/MPO multi-modeNetwork Cable Type: Fiber opticNetwork Cable Type: Network adapter cable
-
adapter, documentation
-
Color: MagentaLength: 7.9inLength: 8inManufacturer Product Line: Eaton Tripp Lite SeriesModel: MTP/MPO Parallel Optics Base-8 Migration Fiber Adapter, Polarity A to B, 12 Fiber, 40 GbE, OM4 M/F, Magenta, 8 in.Warranty Period: Limited lifetime
-
(1) 12-Strand MTP (M)
(1) 12-Strand MTP (F) -
This product is subject to our return policy. Please see our complete return policy for details.
-
0.1 lbs
-
Compliant Standards: IEEE 802.3ae/OM4Compliant Standards: RoHS
-
43201552
