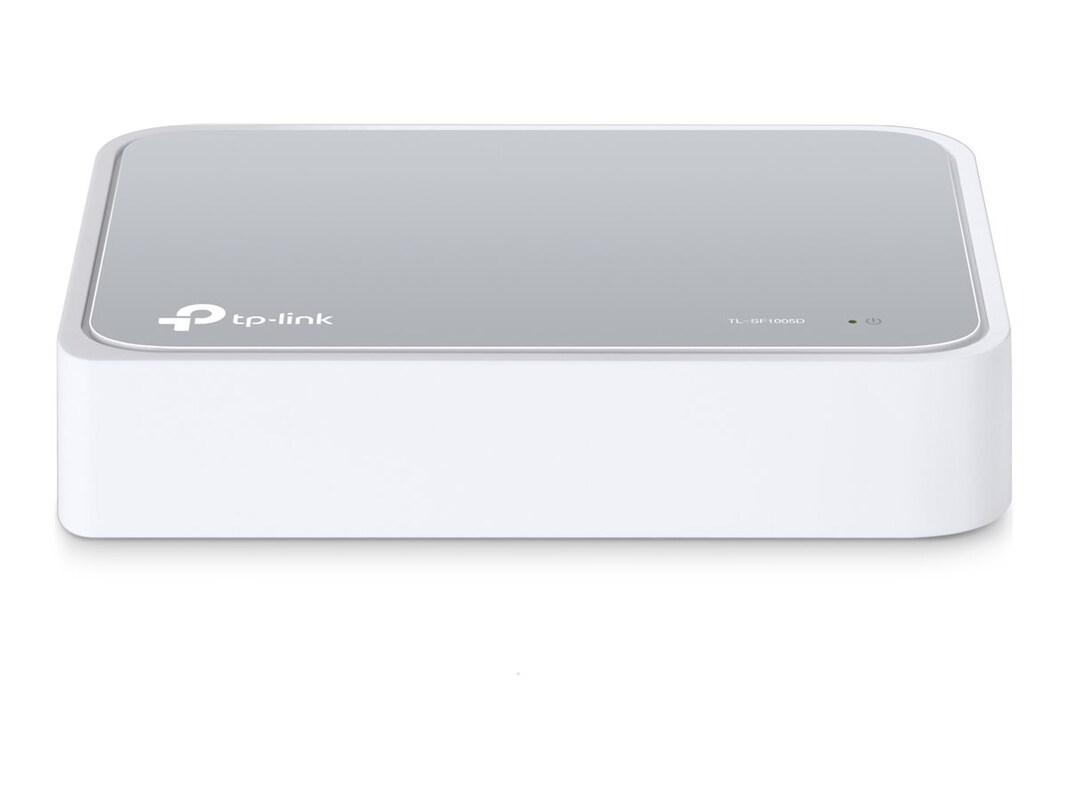

The TL-SF1005D 5-port 10/100Mbps Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ-45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play, and each port can be used as general ports or Uplink ports and can be simply plugged into a server, hub, or switch, using straight cable or crossover cable.
The TP-LINK TL-SF1005D 5-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.
The TP-LINK TL-SF1005D 5-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.
-
# Ports: 5Cabling Type: Ethernet 100Base-TXCabling Type: Ethernet 10Base-TConnectivity Technology: Wired
-
Switch, power adapter, installation guide, documentation
-
Chassis Form Factor: DesktopColor Family: WhiteForm Factor: DesktopManufacturer Product Line: TP-LinkModel: TL-SF1005D 5-Port 10/100Mbps Desktop Switch
-
Features:
Innovative energy-efficient technology saves power up to 68%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps and 100Mbps hardware
Fanless design ensures quiet operation
Desktop design
Plug and Play design simplifies installation
Environmental properties:
Operating Temperature: 32 to 104 F (0 to 40 C)
Storage Temperature: -40 to 158 F (-40 to 70 C)
Operating Humidity: 10 to 90%, non-condensing
Storage Humidity: 5 to 90%, non-condensing -
Networking Type: Switch
-
I/O:
(5) 100Base-TX RJ-45
(1) Power in -
(1) External power adapter
Maximum Power Consumption: 1.48W (220V/50Hz)
External Power Adapter Output: 5.0V DC/0.6A -
Networking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xSwitching Protocol: Ethernet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0.54 lbs
-
Compliant Standards: CECompliant Standards: FCCCompliant Standards: IEEE 802.3Compliant Standards: IEEE 802.3uCompliant Standards: IEEE 802.3xCompliant Standards: RoHS
-
43222612
-
Warranty Period: 2 years
