- DB9 (M) Connector(s)
- TAA, RoHS Compliant

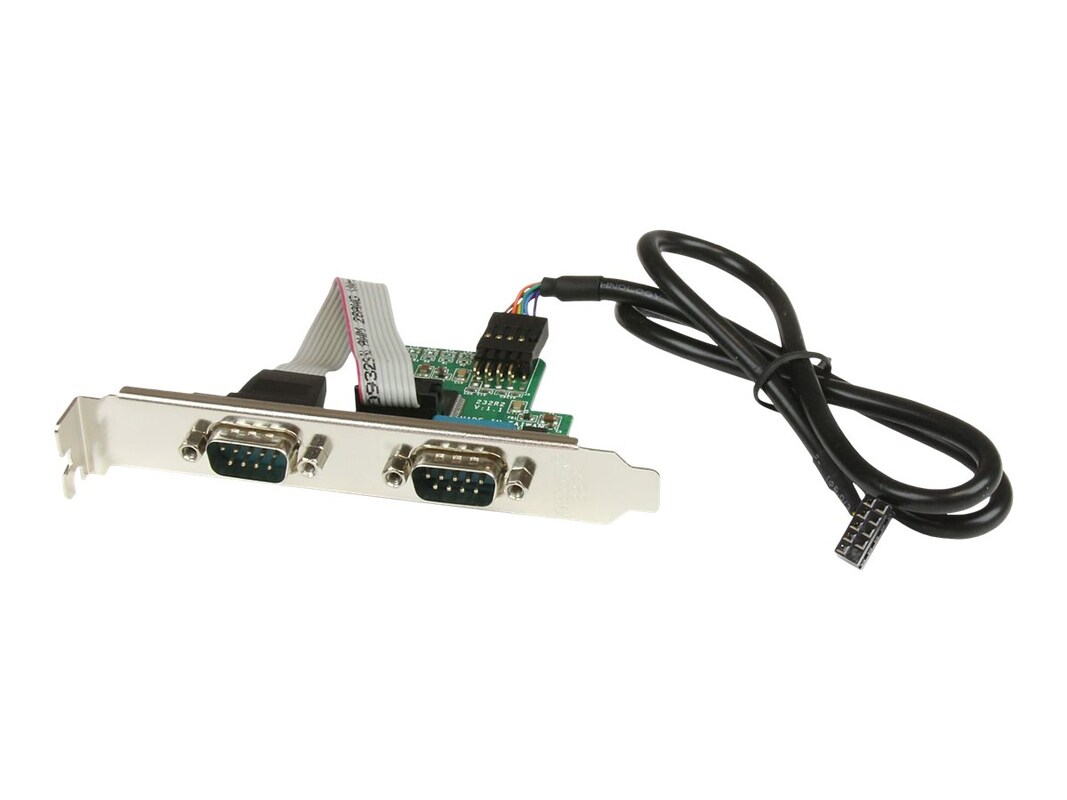

The ICUSB232INT2 USB to Serial Adapter lets you add (2) RS-232 ports to any desktop system that is equipped with an available motherboard USB header. Unlike standard USB to serial cables, this adapter is designed for use inside the PC case, affording an entirely internal solution with no extra adapters needed. This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.
-
2.22 oz
-
Features
Bus Powered -- no separate power supply or battery required
FIFO receive and transmit buffers for high data throughput.
Single chip USB to asynchronous serial data transfer interface
Supports COM port retention
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
UHCI/OHCI/EHCI host controller compatible
USB 2.0 Full Speed compatible
Applications
Connect a satellite receiver, serial modem, or PDA with serial sync
Connect bar code scanners, receipt printers and other serial devices to an internal USB motherboard header
Connect, monitor and control industrial/automotive sensors and equipment
Perfect for system builders looking to add legacy functionality to newer motherboards that lack an integrated RS-232 port -
Connectivity Technology: WiredConnector: DB9 (M)I/O Cable Type: Serial adapterSlot Type: USB
-
Adapter, documentation
-
Form Factor: InternalLength: 2ftWarranty Period: 2 yearsWeight Taxonomy: 2.22oz
-
Networking Type: Serial adapter
-
Chipset ID: FTDI FT232R
Microsoft WHQL Certified: Yes
OS Compatibility: Windows 98/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2
Windows XP Embedded/ CE 4.2/ CE 5.0/ CE 6.0
Mac OS 8, 9, 10.4.x/ Linux 2.4, 2.6 -
Data Transfer Rate: 115.2Kbps
-
4.7"h x 0.75"w x 2.7"d
-
Cable Length: 24"/609.6mm
Connector Types: (2) DB-9 (9-pin; D-Sub) Male
Interface: Serial
Number of Ports: (2) -
Networking Protocol: RS-232
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0.34 lbs
-
Compliant Standards: RoHSCompliant Standards: TAACompliant Standards: WHQL
-
OS Required: Apple macOS 11.0OS Required: Apple macOS 11.0 Big SurOS Required: Apple macOS 12.0OS Required: Apple macOS 13.0OS Required: Apple MacOS X 10.6 - 10.15OS Required: Linux Kernel 3.0 or laterOS Required: Linux LTS versions onlyOS Required: Microsoft Windows 10OS Required: Microsoft Windows 11OS Required: Microsoft Windows 2000OS Required: Microsoft Windows 2000/XP/Vista/7/8/8.1/10OS Required: Microsoft Windows 7OS Required: Microsoft Windows 8OS Required: Microsoft Windows 8.1OS Required: Microsoft Windows 98 Second EditionOS Required: Microsoft Windows CE 4.2OS Required: Microsoft Windows CE 5.0OS Required: Microsoft Windows CE 6.0OS Required: Microsoft Windows Server 2003OS Required: Microsoft Windows Server 2008 R2OS Required: Microsoft Windows Server 2012OS Required: Microsoft Windows Server 2012 R2OS Required: Microsoft Windows Server 2016OS Required: Microsoft Windows Server 2019OS Required: Microsoft Windows VistaOS Required: Microsoft Windows XPOS Required: Microsoft Windows XP Embedded
-
