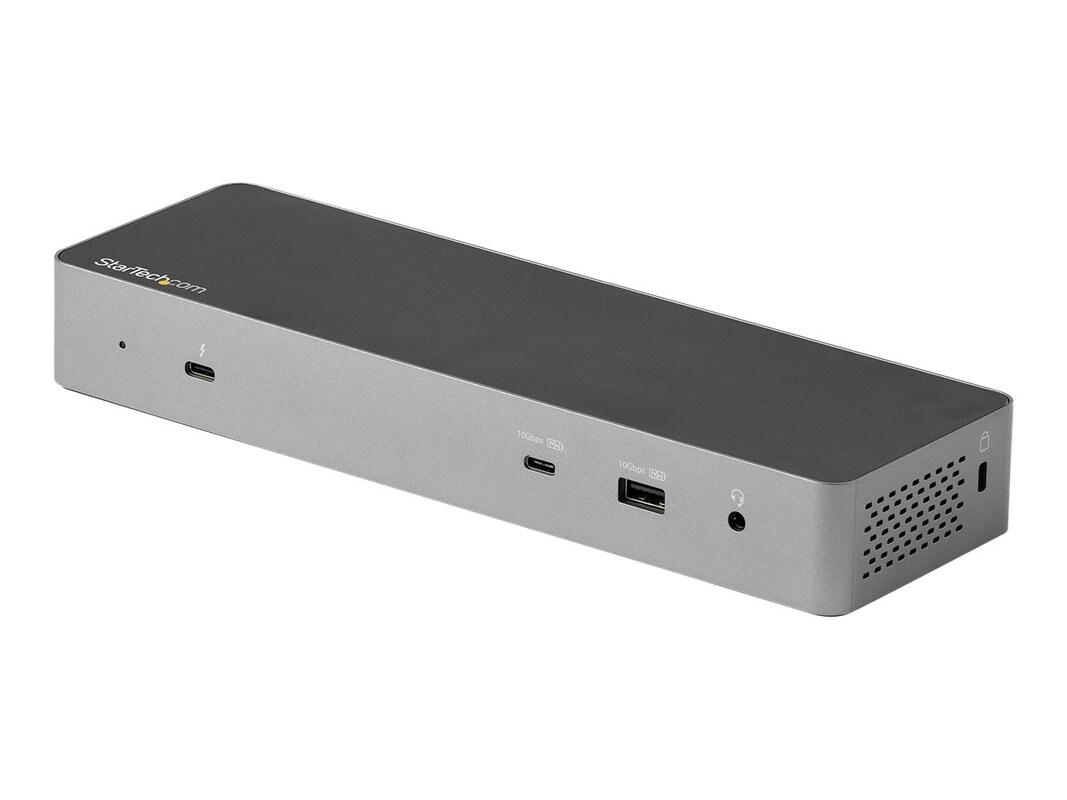

StarTech.com Dual 8K 4K 60Hz DP 1.4 or HDMI Thunderbolt 3 Dock w USB-C Compatibility - 96W PD

Dual DP 4K 60Hz or Dual HDMI 2.0 Monitors - macOS & Windows - 5x USB 3.0 Ports - 96W PD - 0.8 m Cable

A high-performance Thunderbolt 3 Certified docking station with USB Type-C compatibility featuring dual monitor 4K 60Hz DSC support from either dual DisplayPort or dual HDMI 2.0 video outputs, 96W Power Delivery (100W peak power), 5x USB 3.2 Hub with 2x BC 1.2 fast charging ports, gigabit Ethernet & headset ports.

Flexible Dual Display Outputs

This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways:

DisplayPort + DisplayPort

HDMI + HDMI

DisplayPort + HDMI

Resolutions and video outputs are host-dependent.

Host Output

DSC Status

Single Video

Dual Video

Thunderbolt with DP 1.4 (nVidia Graphics)

Off

8K (7680 x 4320) @ 30Hz (DP Only)

n/a

Thunderbolt with DP 1.4 (nVidia Graphics)

Off

n/a

2x 4K (3840x2160) @60Hz

Thunderbolt with DP 1.4 (nVidia Graphics)

On

4K (3840x2160) @144Hz

n/a

Thunderbolt with DP 1.4 (nVidia Graphics)

On

n/a

2x 4K (3840x2160) @60Hz

Thunderbolt with DP 1.4 (Intel Graphics)

n/a

5K (5120x2880) @60Hz (DP Only)

n/a

Thunderbolt with DP 1.4 (Intel Graphics)

n/a

n/a

2x 4K (3840x2160) @60Hz

Thunderbolt with DP 1.2

n/a

4K (3840x2160) @60Hz

n/a

Thunderbolt with DP 1.2

n/a

n/a

2x 4K (3840x2160) @60Hz

USB Type-C DP Alternate Mode DP 1.4

Off

4K (3840x2160) @30Hz

n/a

USB Type-C DP Alternate Mode DP 1.4

Off

n/a

2x QHD (2560x1440)

USB Type-C DP Alternate Mode DP 1.4

On

5K (5120x2880) @60Hz (DP Only)

n/a

USB Type-C DP Alternate Mode DP 1.4

On

n/a

2x 4K (3840x2160) @60Hz

USB Type-C DP Alternate Mode DP 1.2

n/a

4K (3840x2160) @30Hz

n/a

USB Type-C DP Alternate Mode DP 1.2

n/a

n/a

2x 1080p (1920x1080) @ 60Hz

More Downstream USB Ports

Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports:

Front Facing:

• 1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A, 5V) Charging

• 1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C. 1.2 Fast-Charging

Back Facing:

• 2x USB 3.2 Gen 1 Type-A (5 Gbps)

• 1x USB 3.2 Gen 2 Type-C (10 Gbps)

Easy to Set Up & Manage

This universal Thunderbolt 3 / USB-C Dock has an automatic driver setup and includes a longer 0.8 meter (2.6 ft) Thunderbolt 3 host cable, front-facing TB3/USB-C host port, front-facing LED indicator, mounting holes for the optional bracket, k-slot for security lock & MAC address changer utility.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
