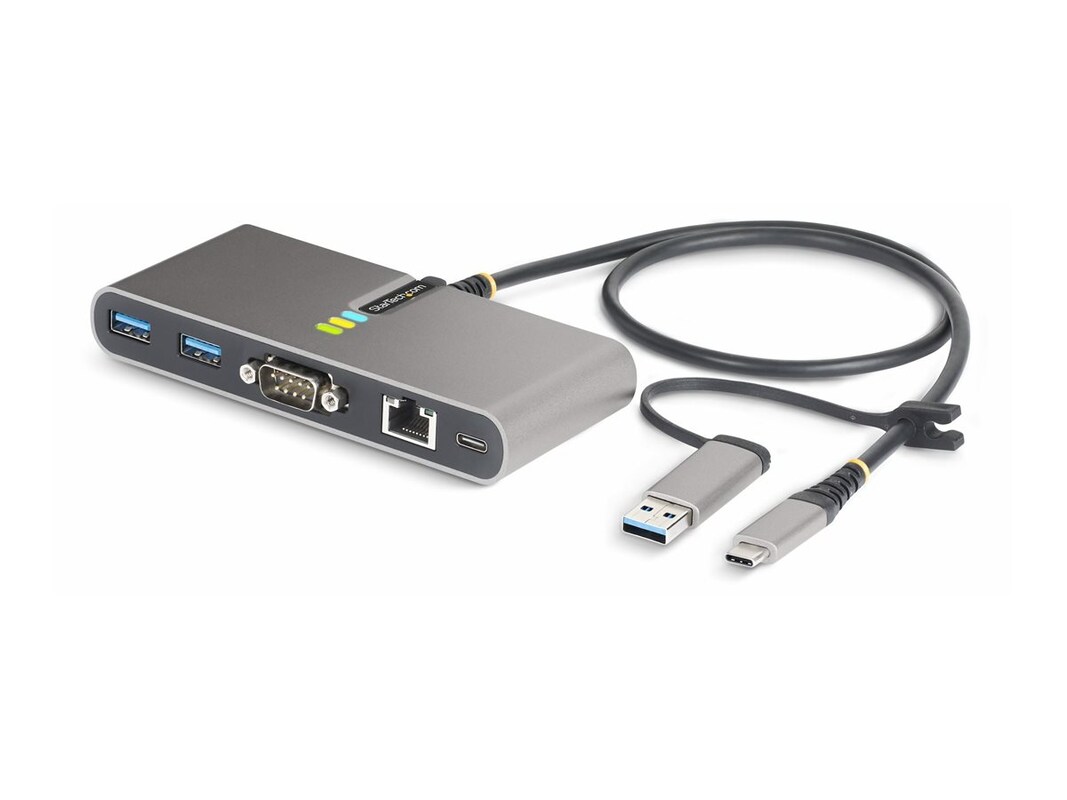

This USB Type-C Hub with RS-232 Serial, Gigabit Ethernet, and 100W USB-C Power Delivery Pass-Through adds two USB 3.2 Gen 1 (5Gbps) Type-A ports to a USB enabled computer. The attached 2ft (60cm) USB-C host cable includes a tethered USB-C to USB-A adapter that enables the USB Hub to easily connect to both USB-A and USB-C host computers.
The USB Hub adds an RS-232 serial DB/DE-9M (male) connector to a desktop or laptop. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.
The USB hub features a Gigabit Ethernet Network Interface Controller (NIC). The Ethernet adapter is compatible with the IEEE 802.3u/ab standards and supports Wake-on-LAN (WoL), Jumbo Frames, and V-LAN Tagging. The network adapter enhances laptop network reliability, security, and performance, by utilizing wired 10/100/1000Mbps Ethernet.
This USB hub features 100W USB Power Delivery 3.0 pass-through (85W laptop charging). Connect a power source to the USB-C PD pass-through port to power the connected host device. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when switching power sources (USB-C power adapter to bus power).
The USB hub features Overcurrent Protection (OCP) for added protection to the USB hub and any connected devices. OCP prevents faulty USB peripherals from drawing more power than is safely allocated.
This device is compatible with most major operating systems, including Windows, macOS, and Linux. The Hub is automatically detected, configured, and installed upon connection to a host computer.
-
3.70 oz
-
2-PORT USB-C HUB: Portable USB 5Gbps expansion hub features a built-in 2ft USB-C host cable & attached USB-C to USB-A dongle; 2-Port USB Type-A (5Gbps) Hub; Overcurrent Protection; 1x RS-232 Serial Adapter (FTDI); 1x Gigabit Ethernet; 100W PD Pass-Through
RS-232 SERIAL: RS232 serial adapter with FTDI chip and COM retention; USB Enumeration/Transmit/Receive LEDs offer real-time port activity; Max Baud Rate: 115.2 Kbps; 256 Byte FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits
GIGABIT ETHERNET: Built-in GbE converter to provide the reliability and security of wired Ethernet to a laptop or desktop; GbE controller is fully compatible with IEEE 802.3u/ab standards and supports WoL, Jumbo Frames, and V-LAN Tagging; 10/100/1000 Mbps
RELIABLE PERFORMANCE: Connect an external USB-C power adapter (not included) for 100W Power Delivery 3.0 pass through; 15W is reserved for the adapter to avoid device dropouts or power overdraw that's common in other hubs; Up to 85W for laptop charging
-
# Ports: 2Connector: RJ-45Connector: RS-232Connector: USB Type AConnector: USB Type CConnector Type: EthernetConnector Type: RS-232Connector Type: USB 3.2 Gen 1
-
hub, documentation
-
Color: Space grayForm Factor: DesktopWarranty Period: 2 yearsWeight Taxonomy: 3.7oz
-
Networking Type: Hub
-
Data Transfer Rate: 5Gbps
-
(2) USB Type A (F)
(1) RJ-45 (F)
(1) DB9 RS-232C (F)
(1) USB Type C (F)
(1) USB Type A (M)
(1) USB Type C (M)
-
Consumption: 15W (typ.)
-
Processor Manufacturer: ASIX / VIA / FTDIProcessor Model Number: VL817-Q7 / VL103-Q4 / AX88179A / FT232RL
-
Networking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3azNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3x
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0.24 lbs
-
Compliant Standards: CECompliant Standards: RCMCompliant Standards: RoHSCompliant Standards: WEEE
-
Compatible OS:
Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 10 ARM, 11, 11 ARM
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
macOS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux Kernel 3.0.x and up - LTS Versions only
OS Required: Apple macOS 10.15 - 10.6OS Required: Apple macOS Big Sur 11.0OS Required: Apple macOS Monterey 12.0OS Required: Apple macOS Sonoma 14.0OS Required: Apple macOS Ventura 13.0OS Required: Linux Kernel 3.0 or laterOS Required: Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11OS Required: Microsoft Windows CE .NET 4.2OS Required: Microsoft Windows CE .NET 5.0OS Required: Microsoft Windows CE .NET 6.0OS Required: Microsoft Windows Server 2003OS Required: Microsoft Windows Server 2008 R2OS Required: Microsoft Windows Server 2012OS Required: Microsoft Windows Server 2012 R2OS Required: Microsoft Windows Server 2016OS Required: Microsoft Windows Server 2019OS Required: Microsoft Windows Server 2022OS Required: Microsoft Windows XP Embedded -
43211600
