In Stock
- Ships in 1-2 Business Days
Ordering Information
$214.60
Quick View
Getting Details
- Fiber to Ethernet Media Converter extends networks & converts optical fiber to RJ45 Copper/CAT6
- Industrial Hardened -40 to 75C temp
- 1Gbps (Gigabit)
- Open SFP
- 12V-56VDC
- Single Mode (SMF) or Multimode Fiber (MMF)
- IP-30 Case 2 Year Warranty
- Ethernet 1000Base-SXEthernet 1000Base-T Transceiver
- 1Gbps Transfer Rate
- Ethernet, Fast Ethernet, Gigabit Ethernet Protocol(s)
- CE, RoHS, FCC Compliant

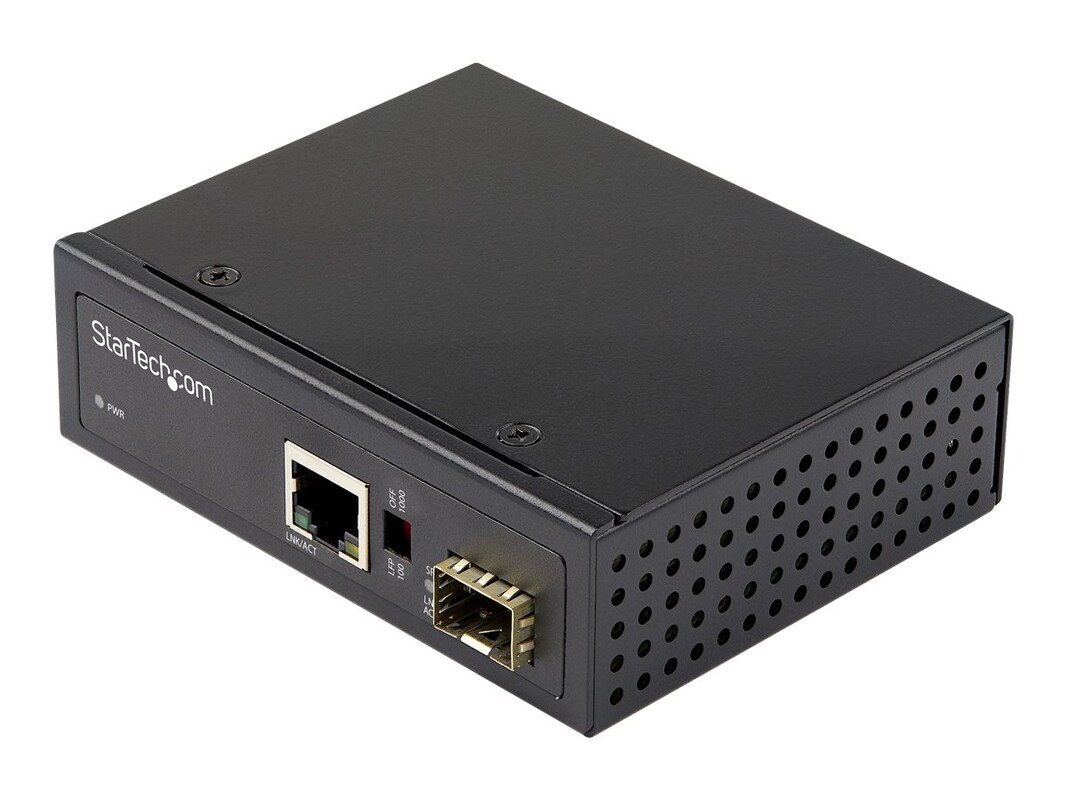

Gigabit Media Converter SFP to RJ45 (Cat6) MTBF: 500,000+hrs @ 50°C 12V-56VDC. An industrial media converter that converts fiber to copper at a network endpoint.
A Flexible Solution Covering Different Requirements
This media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting.
For Mission-Critical Applications
Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32
The IMC1GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
A Flexible Solution Covering Different Requirements
This media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting.
For Mission-Critical Applications
Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32
The IMC1GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
-
5.10 oz
-
INDUSTRIAL FIBER TO ETHERNET MEDIA CONVERTER: Extends & converts 1Gbps fiber to RJ45 copper w/ hardened operating temp -40C to 75C; powered by 12V-56V DC for compatibility with solar, auto & rail
STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; this media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
OPEN SFP SLOT: Compatible with any standard SFP and can be used for multimode or single mode fiber connections; easy deployment across applications, fiber distances or fiber cable types -
Cabling Type: Ethernet 1000Base-SXCabling Type: Ethernet 1000Base-TConnectivity Technology: Wired
-
converter, Terminal Block, Terminal Block to Barrel Power Connector Adapter, Mounting Hardware Kit, documentation
-
Color: BlackForm Factor: DIN rail mountableWarranty Period: 2 yearsWeight Taxonomy: 5.08oz
-
Networking Type: Fiber media converter
-
Data Transfer Rate: 1Gbps
-
(1) SFP Slot
(1) Ethernet Gigabit
(1) Terminal Block (4 Wire) -
Networking Protocol: Fast EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: Ethernet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0.85 lbs
-
Compliant Standards: CECompliant Standards: EN 60068-2-27Compliant Standards: EN 60068-2-32Compliant Standards: EN 60068-2-6Compliant Standards: EN 60950-1Compliant Standards: FCCCompliant Standards: IEC 61000-4-2Compliant Standards: IEC 61000-4-4Compliant Standards: IEC 61000-4-5Compliant Standards: IP30Compliant Standards: MSACompliant Standards: RoHSCompliant Standards: WEEE
-
