- PCI Express 2.1 x1PCI-Express
- 2.5Gbps2500Mbps Transfer Rate
- 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.3at, IEEE 802.3af (PoE), IEEE 802.3ab, IEEE 802.3u, IEEE 802.3i (10BASE-T), IEEE 802.1Q Protocol(s)
- RCM, RoHS, WEEE, CE Compliant

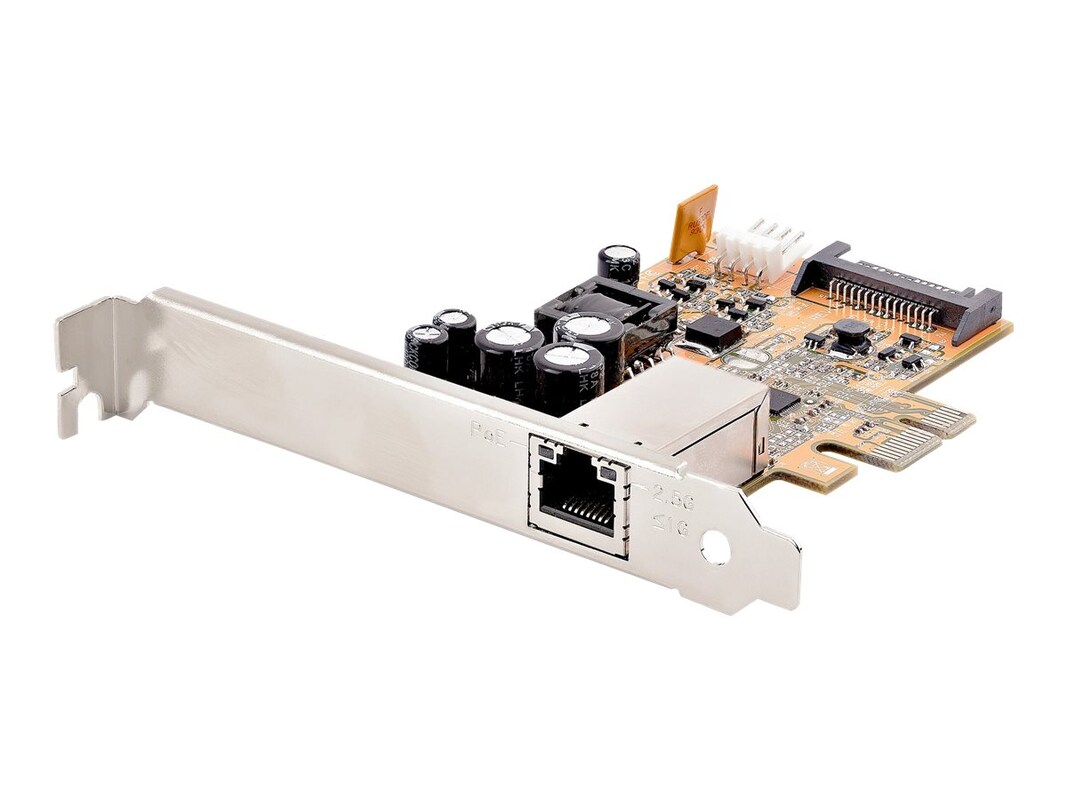

The Power over Ethernet PCIe network card enables multigigabit speeds of 2.5/1Gbps and 100/10Mbps. This PoE LAN adapter can provide up to 25.5 W of power to a connected device. It combines a network data connection and power over a single Cat5e (or better) Ethernet cable. This PoE NIC is the ideal solution to provide both power and network communication to a remote installation.
The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48 V DC and 25.5 W of power to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.
The network interface card connects to an available x1 PCIe 2.1 (or higher) expansion slot. The card is shipped with a standard-profile bracket. It includes a low-profile bracket for installation in various computer chassis. Access up to 2.5 Gbps (NBASE-T) speeds using Cat5e cabling to utilize existing networks and equipment.
Take advantage of advanced features such as Audio-Video Bridging (AVB) for transmitting real-time content over Ethernet, VLAN tagging, 16K jumbo frame, full-duplex, and PXE.
The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48 V DC and 25.5 W of power to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.
The network interface card connects to an available x1 PCIe 2.1 (or higher) expansion slot. The card is shipped with a standard-profile bracket. It includes a low-profile bracket for installation in various computer chassis. Access up to 2.5 Gbps (NBASE-T) speeds using Cat5e cabling to utilize existing networks and equipment.
Take advantage of advanced features such as Audio-Video Bridging (AVB) for transmitting real-time content over Ethernet, VLAN tagging, 16K jumbo frame, full-duplex, and PXE.
-
7.80 oz
-
2.5G NETWORK CARD WITH POE: This PCI Express x1 Network Card enables 2.5Gbps network speeds and supplies (PSE) 30W PoE over a single CAT5e (or later) cable - Leverage existing copper cabling without the use of a Power over Ethernet (PoE) injector
POE+ COMPLIANT: Card provides up to 30W PSE and 25.5W PD at 48V DC to a connected device - Supports IEEE 802.3af (PoE) and 802.3at (PoE+) to power remote devices such as access points, RFID readers, and IP cameras
MULTI-GIGABIT CONNECTIVITY: The Network PoE Card features 2.5GBASE-T (802.3bz) and will auto negotiate to the connected device's highest possible speed - The PCIe Network Card supports Wake-on-LAN and RealWoW for remote wake up of the host computer
TECH SPECS: 2.5Gbps/1Gbps/100Mbps/10Mbps - NBASE-T - 1x RJ45 Port - Realtek RTL8125B - IEEE 802.3af/at - 802.3az EEE - PCIe 2.1 x1 - SATA & SP4 Power Connectors - Link/PoE LED Indicators - 16K Jumbo Frame - VLAN - PXE Boot - Full and Low-Profile Brackets
VERSATILE POE NETWORK CARD: The PCIe Ethernet Adapter supports Windows and Linux - Variable speed options and includes a low-profile bracket for Small Form Factor (SFF) systems ensures compatibility of the PoE NIC with current and legacy devices -
Cabling Type: Ethernet 1000Base-TCabling Type: Ethernet 100Base-TXCabling Type: Ethernet 10Base-TCabling Type: Ethernet 2.5GBase-TCabling Type: NBase-TConnectivity Technology: WiredConnector: RJ-45Slot Type: PCI Express 2.1 x1Slot Type: PCI-Express
-
card, Low-profile Bracket, documentation
-
Color: SilverForm Factor: Plug-in cardWarranty Period: 2 yearsWeight Taxonomy: 7.76oz
-
Networking Type: Network adapter
-
Data Transfer Rate: 2.5GbpsData Transfer Rate: 2500Mbps
-
0.6"h x 3.7"w x 2.5"d
-
(1) RJ-45
-
# Processors Installed: 1Processor Manufacturer: Realtek SemiconductorProcessor Model Number: RTL8125B
-
Networking Protocol: 2.5 Gigabit EthernetNetworking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3af (PoE)Networking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3i (10BASE-T)Networking Protocol: IEEE 802.3u
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0.48 lbs
-
Compliant Standards: CECompliant Standards: RCMCompliant Standards: RoHSCompliant Standards: WEEE
-
Compatible OS:
Windows 11
Windows 10
Windows 8.1
Windows 7
Windows Server 2019
Windows Server 2012 R2
Windows Server 2008 R2
Linux Kernel 2.4.20 and up - LTS Versions onlyOS Required: Linux Kernel 2.4.20 or later (LTS versions only)OS Required: Microsoft Windows 10OS Required: Microsoft Windows 11OS Required: Microsoft Windows 7OS Required: Microsoft Windows 7 / 8.1 / 10OS Required: Microsoft Windows 8.1OS Required: Microsoft Windows Server 2008 R2OS Required: Microsoft Windows Server 2012 R2OS Required: Microsoft Windows Server 2019 -
