- Ethernet 1000Base-TEthernet 1000Base-XEthernet 100Base-TXEthernet 100Base-XEthernet 10Base-T Transceiver
- 1Gbps Transfer Rate
- Ethernet, Fast Ethernet, Gigabit Ethernet, High PoE Protocol(s)

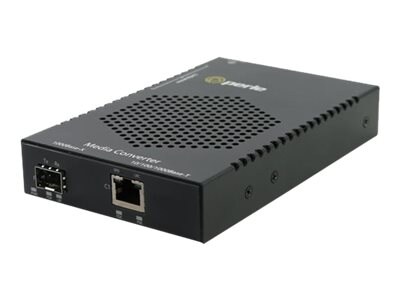

Perle S-1110HP-SFP Fiber Media Converters transparently connect copper to fiber while providing up to 100 Watts of IEEE 802.3bt compliant Hi-PoE PSE power to standards-based compliant devices such as pan-tilt-zoom (PTZ) security cameras with heaters, LED lighting in building management, and 802.11ax/ac wireless access points.
Perle Hi-PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, Perle Hi-PoE media converters provide power to Powered Devices (PDs) that support the IEEE 802.3bt PoE standard (up to 100W of power) or pre-standard solutions including UPoE, 4PPoE, PoE++, UltraPoE, 4 Pair PoE, etc. As this standard is fully backwards compatible with the existing IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, all of those PD's are also supported. The S-1110HP-SFP Fiber Media Converter features single or dual 10/100/1000Base-T RJ45 ports to power one or two PD's per converter.
Perle Hi-PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, Perle Hi-PoE media converters provide power to Powered Devices (PDs) that support the IEEE 802.3bt PoE standard (up to 100W of power) or pre-standard solutions including UPoE, 4PPoE, PoE++, UltraPoE, 4 Pair PoE, etc. As this standard is fully backwards compatible with the existing IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, all of those PD's are also supported. The S-1110HP-SFP Fiber Media Converter features single or dual 10/100/1000Base-T RJ45 ports to power one or two PD's per converter.
-
Cabling Type: Ethernet 1000Base-TCabling Type: Ethernet 1000Base-XCabling Type: Ethernet 100Base-TXCabling Type: Ethernet 100Base-XCabling Type: Ethernet 10Base-TConnectivity Technology: Wired
-
Color: BlackForm Factor: ExternalWarranty Period: Limited lifetimeWeight Taxonomy: 14.11oz
-
Networking Type: Fiber media converter
-
Data Transfer Rate: 1Gbps
-
Power Provided: 120
-
Networking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: High PoE
-
This product is subject to our return policy. Please see our complete return policy for details.
-
3 lbs
-
Compliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24:2010Compliant Standards: CISPR 32:2012Compliant Standards: EN 55022 Class ACompliant Standards: EN 55024:2010Compliant Standards: EN 55032:2012 Class ACompliant Standards: EN 61000-3-2Compliant Standards: EN 62368-1:2014Compliant Standards: EN55024Compliant Standards: FCC Part 15 ACompliant Standards: IEC 62368-1 Second EditionCompliant Standards: IP20Compliant Standards: MIL-HDBK-217FN2Compliant Standards: REACHCompliant Standards: RoHSCompliant Standards: WEEE
-
