The power of a gigabit ethernet converter... in a tiny package
Ordering Information
$539.84
Quick View
Getting Details
- Miniature Gigabit Ethernet media converter with Plug-and-Play capability
- Small and lightweight
- Cost-effective
- Ethernet 1000Base-TEthernet 1000Base-X Transceiver
- 1.0Gbps1Gbps Transfer Rate
- Gigabit Ethernet, IEEE 802.3ab Protocol(s)
- FCC Class A certified, Plug and Play, UL Compliant

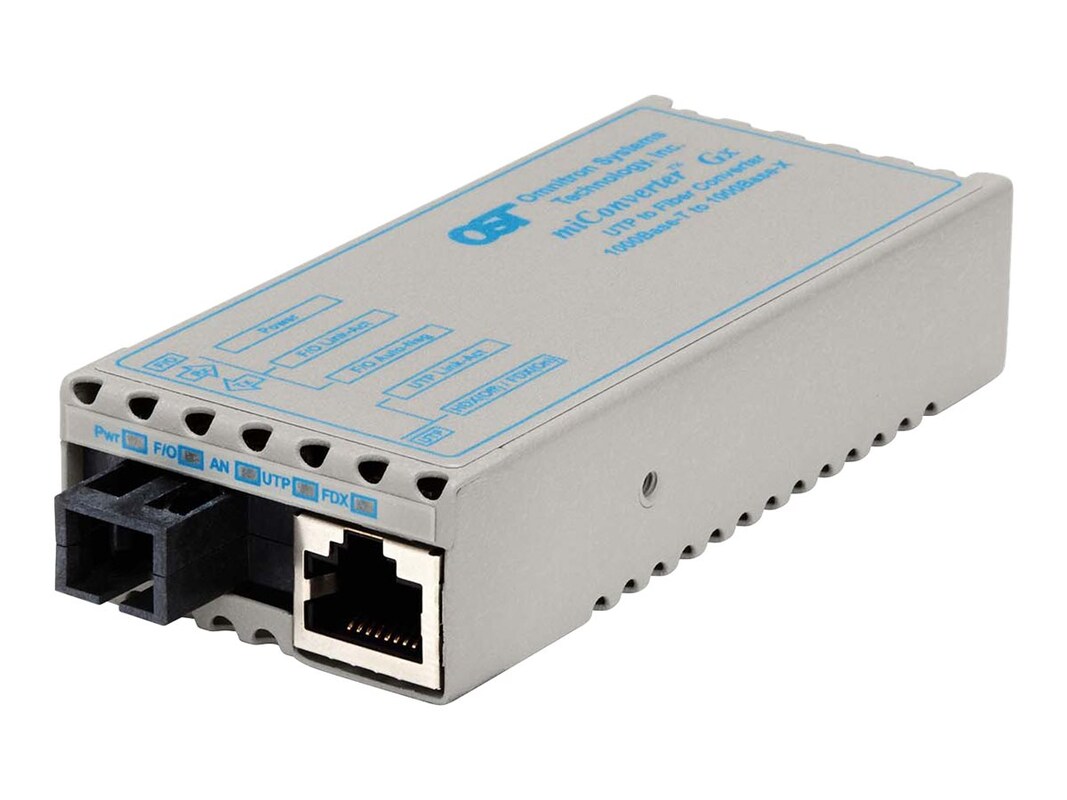

The miConverter Gx is a miniature 1000BaseT UTP copper to 1000BaseX fiber Gigabit Ethernet media converter. The miConverter Gx provides cost-effective fiber connectivity from Gigabit switches to diagnostic equipment, desktop and laptop computers, and is the first Gigabit media converter powered by a USB port (1.0, 1.1, and 2.0).
The miConverter Gx can be powered by a computer’s USB port using the optional USB Power Adaptor Cable, which reduces the module’s weight and eliminates the need to tether the miConverter Gx to an electrical outlet.
The Plug-and-Play capability of the miConverter Gx simplifies fiber-to-the-laptop and fiber-to-the-desktop deployments. The miConverter Gx features Auto-Negotiation, which allows connected network devices to auto-negotiate their Duplex and Pause modes. The miConverter Gx also offers manual configuration with built-in DIP-Switches for compatibility with legacy Gigabit fiber products. These features ensure the miConverter Gx is compatible with the widest range of Gigabit fiber equipment.
The miConverter Gx can be powered by a computer’s USB port using the optional USB Power Adaptor Cable, which reduces the module’s weight and eliminates the need to tether the miConverter Gx to an electrical outlet.
The Plug-and-Play capability of the miConverter Gx simplifies fiber-to-the-laptop and fiber-to-the-desktop deployments. The miConverter Gx features Auto-Negotiation, which allows connected network devices to auto-negotiate their Duplex and Pause modes. The miConverter Gx also offers manual configuration with built-in DIP-Switches for compatibility with legacy Gigabit fiber products. These features ensure the miConverter Gx is compatible with the widest range of Gigabit fiber equipment.
-
5.00 oz
-
Description: 1000BaseT UTP to 1000BaseX Fiber Converter with Auto-Negotiation
Multimode [MM] or Single-Mode [SM] / Dual Fiber [DF] or Single-Fiber [SF] : SM / SF
Distance: 20km
SC Connector: 1211-1-x
Tx Lambda [nm]: 1550
Rx Lambda [nm]: 1310
Min. Tx Power [dBm]: -9
Max. Tx Power [dBm]: -3
Min. Rx Sense [dBm]: -20
Max. Rx Power [dBm]: -3
Link Budget: 11
-
Cabling Type: Ethernet 1000Base-TCabling Type: Ethernet 1000Base-XConnectivity Technology: WiredConnector: RJ-45
-
Converter, documentation
-
Color: GrayForm Factor: ExternalManufacturer Product Line: Omnitron miConverterModel: GxWeight Taxonomy: 4.94oz
-
Networking Type: Fiber media converter
-
Data Transfer Rate: 1Gbps
-
0.8"h x 1.7"w x 4.1"d
-
Cable Types:
- UTP: EIA/TIA 568A/B, Category 5 and higher
- Fiber: Multimode: 50/125, 62.5/125, 100/140 um, Single-mode: 9/125 um
Connector Types:
- UTP: RJ45
- Dual fiber: SC, ST Single fiber: SC -
DC Power: 5VDC/500mA
DC Power Connector 2.5mm DC Jack
AC Power Adapter [US] 100-120VAC/60Hz/100mA
AC Power Adapter [International] 100-240VAC/50-60Hz/500mA -
Networking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.3ab
-
This product is subject to our return policy. Please see our complete return policy for details.
-
1 lbs
-
Compliant Standards: FCC Class A certifiedCompliant Standards: Plug and PlayCompliant Standards: UL
-
26121609
-
Warranty Period: Limited lifetime
