Omnitron 19 MODULE CHASSIS ICONVERTER W

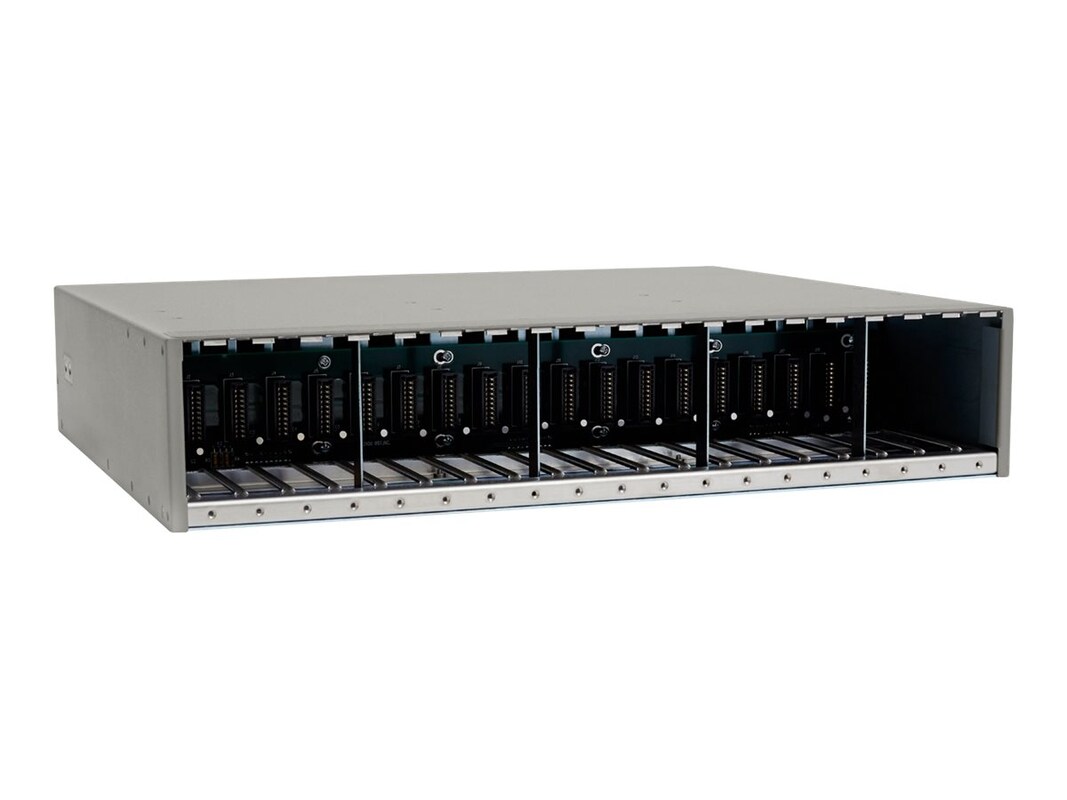

The 2U (3.5 inch) high iConverter 19-Module Chassis has triple redundant power supplies and can be mounted in a 19-inch or 23-inch rack. It is designed for Enterprise Local Area Network (LAN) and Metropolitan Area Network (MAN) applications where fault tolerance and a high-density rack footprint are essential.

Omnitron's exclusive triple-redundant power supplies operate in load-sharing mode to reduce the burden on each power supply to extend the lifetime and fault tolerance.

Power is provided to the nineteen iConverter modules installed in the chassis via the chassis backplane. When used with an iConverter management module, the management capabilities include the ability to monitor the voltage, current and temperature of each power supply. Any out-of-range violation can trigger an SNMP trap to allow quick corrective maintenance.

In addition to handling the power and management data for each iConverter module, the 19-Module Chassis backplane allows sharing of Ethernet data between the individual modules. iConverter modules that are installed in adjacent slots and equipped with Ethernet backplane ports have the ability to connect to each other via the chassis' Ethernet backplane and facilitate a variety of flexible network applications including unmanaged, out-of-band managed, in-band managed and multiport configurations.

The iConverter 19-Module Chassis is the ideal choice in the core of an enterprise, in a Central Office (CO) or for Point of Presence (POP) applications where reliability and space are critical.
