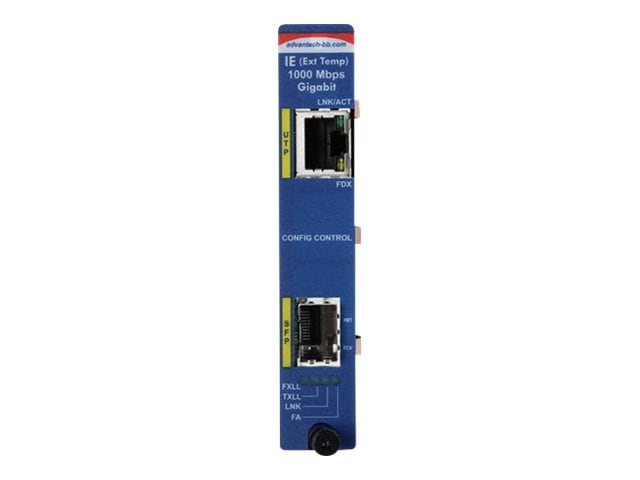

IMC IE-IMCV-GIGABIT TX SFP REQ 1

The IMC-771/771 series are slide-in module Ethernet-to-fiber media converter for IMC-7xx chassis, which supports hot-swappable and easy installation, it allows network operators to incorporate multiple fiber types and wavelengths within a network. The IMC-770/771 can be monitored and controlled via central site with IMC-710 SNMP management module by iView2, Telnet or CLI while installed in IMC-71x series chassis. Offering a range of speed up to Gigabit Ethernet and available with SFP or build-in fiber connector: multi-mode, single-mode fiber or double fiber capacity with single-strand which supports the transmission distance from 550 m to 70 km. The IMC-770/771 series feature in the Link Fault Pass Through (LFPT) functionality, a diagnostic feature that can enable or disable links to assist the end user in troubleshooting a failed segment and configuration control to retain the latest configuration regardless of how the initial configuration was setup. The IMC-770I-2SFP converter is protocol-independent with dial SFP ports which can provide a single conversion between different wavelengths or single-mode and multi-mode fiber, single-mode to single-mode fiber or multi-mode to single-strand fiber. Its SFP port must use an SFP of the same speed while allowing different fiber types.
