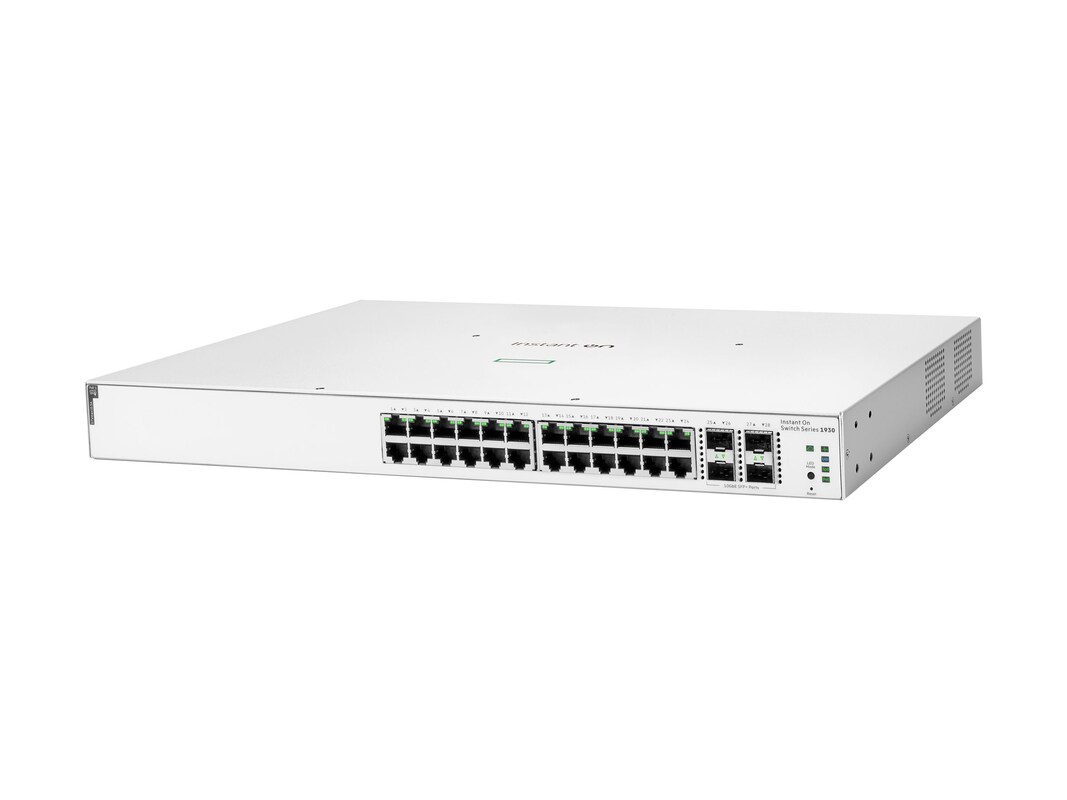

The HPE Networking Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely.
-
8.10 lbs
-
Switch, power supply, documentation
-
Chassis Form Factor: 1U RackmountColor: WhiteForm Factor: Rack-mountableModel: 1930 24G Class4 PoE 4SFP/SFP+ 370W SwitchWeight Taxonomy: 8.09lbs
-
Switching capacity: 128 Gbps
Throughput: 95.23 Mpps
Latency (1 Gbps): 2.4 µs
Latency (10 Gbps): 1.3 µs
Link aggregation ports: 8
IPv4 routes (static): 32
VLANs supported: 256
Access Control Entries (ACEs) per ACL: 480
Packet buffer size: 1.5 MB
-
RAM (installed): 512MBRAM Technology: SDRAM
-
ARM 800Mhz CPU
512GB SDRAM
256MB Flash memory
-
Networking Type: Switch
-
1.7"h x 17.4"w x 10.4"d
-
I/O:
(24) 10/100/1000Base-T RJ-45 PoE 370W(4) 1/10GbE LAN SFP+
(1) Power in -
Internal power supply, 120V AC, 50/60Hz, 439 operational power consumption
370W PoE budget
-
# Processors Installed: 1Processor Manufacturer: ARMProcessor Speed: 800MHz
-
Networking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.2afNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3azNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: PoERemote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: RADIUSRemote Management Protocol: RMONRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Remote Management Protocol: TFTPRouting Protocol: Static IP routing
-
This product is subject to our return policy. Please see our complete return policy for details.
-
11.5 lbs
-
Compliant Standards: CISPR 24Compliant Standards: CISPR 35Compliant Standards: EN 55024:2010Compliant Standards: EN 55035:2017Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: IEC 61000-3-2Compliant Standards: IEC 61000-3-3Compliant Standards: IEC 61000-4-11Compliant Standards: IEC 61000-4-2Compliant Standards: IEC 61000-4-3Compliant Standards: IEC 61000-4-4Compliant Standards: IEC 61000-4-5Compliant Standards: IEC 61000-4-6Compliant Standards: IEC 61000-4-8Compliant Standards: SSL
-
Hard Drive Capacity: 256MBHard Drive Type: Flash
-
43222612
-
Warranty Period: Limited lifetime
