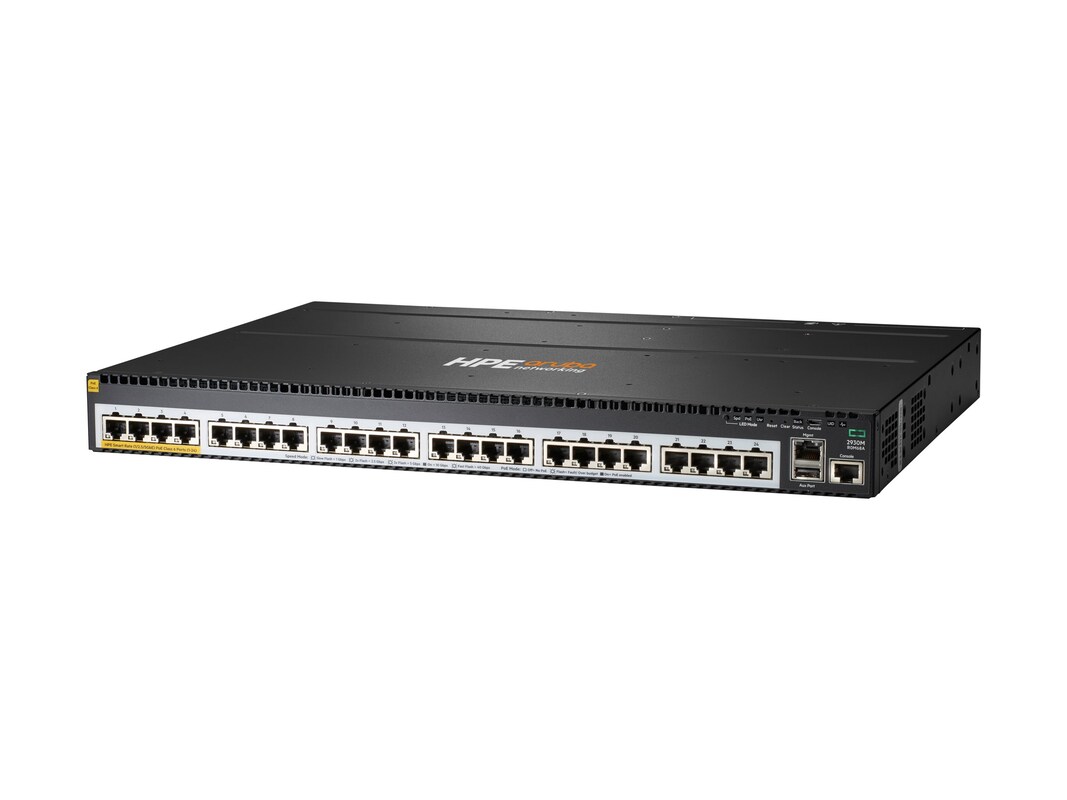

The Aruba 2930M switch series is designed for customers, creating digital workplaces, that are optimized for mobile users with an integrated wired and wireless approach. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools. With support from cloud-based Aruba Central, you can quickly set up remote offices with little or no IT support. A powerful Aruba ProVision ASIC delivers performance and value with support of the SDN apps with future-proof programmability for tomorrow's applications. High-performance modular stacking provides simplicity, scalability with a pay-as-you-grow approach.
-
9.90 lbs
-
# Ports: 24
-
Switch, documentation
-
Chassis Form Factor: 1U RackmountColor: BlackForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 9.92lbs
-
Latency (1 Gbps): 3.1 µs
Latency (2.5 Gbps): 6.5 µs
Latency (5 Gbps): 4.2 µs
Latency (10 Gbps): 3.4 µs
Throughput: 112 Mpps
Stacking bandwidth: 100 Gbps
Switching capacity: 320 Gbps
IPv4 routing table entries: 2000
IPv6 routing table entries: 1000
OSPF routes: 200
RIP routes: 10000
Static routes: 256
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9220 bytes -
RAM (installed): 1GBRAM Technology: DDR3 SDRAM
-
ARM Cortex-A9 1.016GHz processor
1GB DDR3 SDRAM
4GB Flash memory -
Networking Type: Switch
-
1.7"h x 17.4"w x 12.8"d
-
Expansion slots:
(1) Stacking module slot
(1) Expansion slot
I/O:
(24) 1/2.5/5GBase-T PoE+
(1) Serial console
(1) USB Type-B
(1) 1000Base-T management
(2) Power in -
# Power Supplies Installed: 0# Power Supplies Supported: 2
-
There are no power supplies pre-installed; supports 2 maximum.
Voltage required: 120 to 230V AC, 50 to 60Hz
PoE budget: 860W -
# Processors Installed: 1Processor Manufacturer: ARMProcessor Speed: 1.016GHzProcessor Type: Cortex-A9
-
Networking Protocol: 2.5 Gigabit EthernetNetworking Protocol: 5 Gigabit EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1adNetworking Protocol: IEEE 802.1AXNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1vNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3azNetworking Protocol: IEEE 802.3bzNetworking Protocol: IEEE 802.3xNetworking Protocol: IGMPNetworking Protocol: IGMP v2Networking Protocol: IGMP v3Networking Protocol: OSPFNetworking Protocol: PoE+Networking Protocol: RIPNetworking Protocol: SSHRemote Management Protocol: CLIRemote Management Protocol: HTTPRemote Management Protocol: RMON 1Remote Management Protocol: SNMPRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: SSH-2Remote Management Protocol: TelnetRemote Management Protocol: XRMONRouting Protocol: CIDRRouting Protocol: ECMPRouting Protocol: IGMPRouting Protocol: IGMPv2Routing Protocol: IGMPv3Routing Protocol: MLDRouting Protocol: OSPFRouting Protocol: OSPFv2Routing Protocol: OSPFv3Routing Protocol: RIPRouting Protocol: RIP-1Routing Protocol: RIP-2Routing Protocol: RIPngRouting Protocol: Static IP routingRouting Protocol: Static IPv4 routingRouting Protocol: Static IPv6 routing
-
This product is subject to our return policy. Please see our complete return policy for details.
-
16 lbs
-
Compliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: CNS 13438Compliant Standards: CSA C22.2 No. 60950-1-07 Second EditionCompliant Standards: EN 55022:2010Compliant Standards: EN 55024:2010Compliant Standards: EN 60825-1:2007Compliant Standards: EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: FCC CFR47 Part 15 ACompliant Standards: ICES-003 Class ACompliant Standards: IEC 60825-1:2007Compliant Standards: IEC 60950-1:2005 + A1:2009 + A2:2013Compliant Standards: IEC 61000-3-2Compliant Standards: IEC 61000-3-3Compliant Standards: IEC 61000-4-11Compliant Standards: IEC 61000-4-2Compliant Standards: IEC 61000-4-3Compliant Standards: IEC 61000-4-4Compliant Standards: IEC 61000-4-5Compliant Standards: IEC 61000-4-6Compliant Standards: IEC 61000-4-8Compliant Standards: UL 60950-1 Second EditionCompliant Standards: VCCI Class A
-
Hard Drive Capacity: 4GBHard Drive Type: Flash
-
