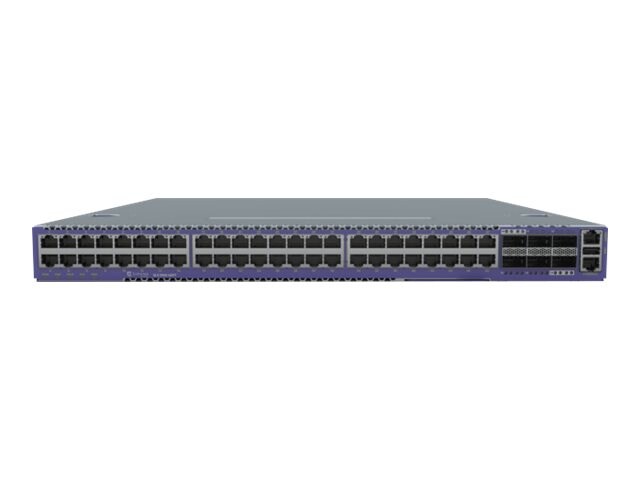

SLX9150 switches are purpose-built, high-density fixed form factor switches. They are designed for the needs of enterprise data centers and service providers.
-
19.90 lbs
-
# Ports: 48# Ports: 6
-
Switch, (2) power supplies, documentation
-
Chassis Form Factor: 1U RackmountColor: GrayForm Factor: Rack-mountableWeight Taxonomy: 19.93lbs
-
Virtual interfaces (VLANs): 4096
ACL: 2000
Maximum members in a standard LAG: 64
Bridge domains: 4096
IPv4 routes (Unicast): 128000
IPv6 routes (Unicast): 10000
Host IPv4 routes: 47000
Host IPv6 routes: 33000
Priority QoS queues: 8
Buffer capacity (MB): 24
MAC Address Table Size: 70K entries
Jumbo Frame Support: 9126 bytes -
RAM (installed): 16GB
-
1.0GHz CPU
16GB RAM
4GB Flash memory
128GB built-in solid state drive -
Networking Type: Switch
-
1.7"h x 17.3"w x 21.2"d
-
I/O:
(48) 10GBase-T SFP28
(6) 40/100GbE LAN QSFP+/QSFP28
(1) RJ-45 GbE LAN, management
(1) RJ-45 console management
(1) USB Type-A
(2) Power in -
# Power Supplies Installed: 2# Power Supplies Supported: 2Power Provided: 1500WPower Provided: 750
-
(2) 750W hot-plug power supplies; maximum.
Voltage required: 120 to 230V AC, 50 to 60Hz
Operational power consumption: 359W
Front-to-rear airflow -
# Processors Installed: 1Processor Speed: 1GHz
-
Networking Protocol: 100 Gigabit EthernetNetworking Protocol: 40 Gigabit EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1vNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3aeNetworking Protocol: IEEE 802.3baNetworking Protocol: IEEE 802.3xNetworking Protocol: IEEE 802.3zRemote Management Protocol: RSTPRouting Protocol: MSTPRouting Protocol: RSTPRouting Protocol: STP
-
Due to manufacturer restrictions, all sales on this item are final.
-
1 lbs
-
Compliant Standards: ANATELCompliant Standards: ANSI C63.4:2014Compliant Standards: AS/NZS CISPER 32:2015 Class ACompliant Standards: AS/NZX 60950-1Compliant Standards: ASTM D3580Compliant Standards: BSMICompliant Standards: CAN/CSA-C22.2 No. 62368-1-07 Second EditionCompliant Standards: CAN/CSA-C22.2 No. 62368-1-14 Second EditionCompliant Standards: CCCCompliant Standards: CDRHCompliant Standards: CISPER 11:2009 ED 5.0 Group 1, Class ACompliant Standards: CISPER 24:2010+AMD1:2015 Class ACompliant Standards: CISPER 32:2015 ED 2.0 Class ACompliant Standards: CNS 14336-1Compliant Standards: Directive 2014/35/EUCompliant Standards: EACCompliant Standards: EN 300 386 V2.1.1(2016-07) Class ACompliant Standards: EN 55011:2009+A1:2010 (Group 1, Class A)Compliant Standards: EN 55024:2010+A1:2015Compliant Standards: EN 55032:2015/AC:2016-07 Class ACompliant Standards: EN 60950-1Compliant Standards: EN 61000-3-2:2014 Class ACompliant Standards: EN 61000-3-3:2013Compliant Standards: EN 61000-4-11:2004/A1:2017Compliant Standards: EN 61000-4-2:2009Compliant Standards: EN 61000-4-3:2006+A1:2008+A2:2010Compliant Standards: EN 61000-4-4:2012Compliant Standards: EN 61000-4-5:2014Compliant Standards: EN 61000-4-6:2014+AC:2015Compliant Standards: EN 61000-4-8:2010Compliant Standards: EN 61000-6-2:2005+AC:2005Compliant Standards: EN 61000-6-4:2007+A1:2011Compliant Standards: EN 62368-1Compliant Standards: EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2Compliant Standards: EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3Compliant Standards: EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1eCompliant Standards: EN/ETSI 300 386:2008Compliant Standards: EN/ETSI 300 753 (1997-10)Compliant Standards: ETSI EN 300 019Compliant Standards: FCCCompliant Standards: FCC CFR47 Part 15 B Class ACompliant Standards: GB 4943.1Compliant Standards: GB/T9254-2008 Class ACompliant Standards: ICES-003Compliant Standards: IEC 60950-1Compliant Standards: IEC 61000-4-2:2008 ED 2.0Compliant Standards: IEC 61000-4-3:2006+AMD1:2007+AMD2:2010 ED 3.2Compliant Standards: IEC 61000-4-4:2012 ED 3.0Compliant Standards: IEC 61000-4-5:2014+AMD1:2017+ ED 3.1Compliant Standards: IEC 61000-4-6:2013+ ED 4.0Compliant Standards: IEC 61000-4-8:2009+ ED 2.0Compliant Standards: IEC 61000-6-2:2016 ED 3.0Compliant Standards: IEC 61000-6-4:2018 ED 3.0Compliant Standards: IEC 62368-1Compliant Standards: IEC/EN 60825-1Compliant Standards: IEC/EN 60825-2Compliant Standards: KCCCompliant Standards: MSIPCompliant Standards: NRCSCompliant Standards: RCMCompliant Standards: SABSCompliant Standards: ULCompliant Standards: UL 60950-1 Second EditionCompliant Standards: UL 62368-1 Second EditionCompliant Standards: VCCI Class A
-
Hard Drive Capacity: 128GBHard Drive Capacity: 16GBHard Drive Type: FlashHard Drive Type: Solid State Drive
-
