Temporarily Out-of-Stock
- Call for next available delivery
Ordering Information
$621.61
Quick View
Getting Details

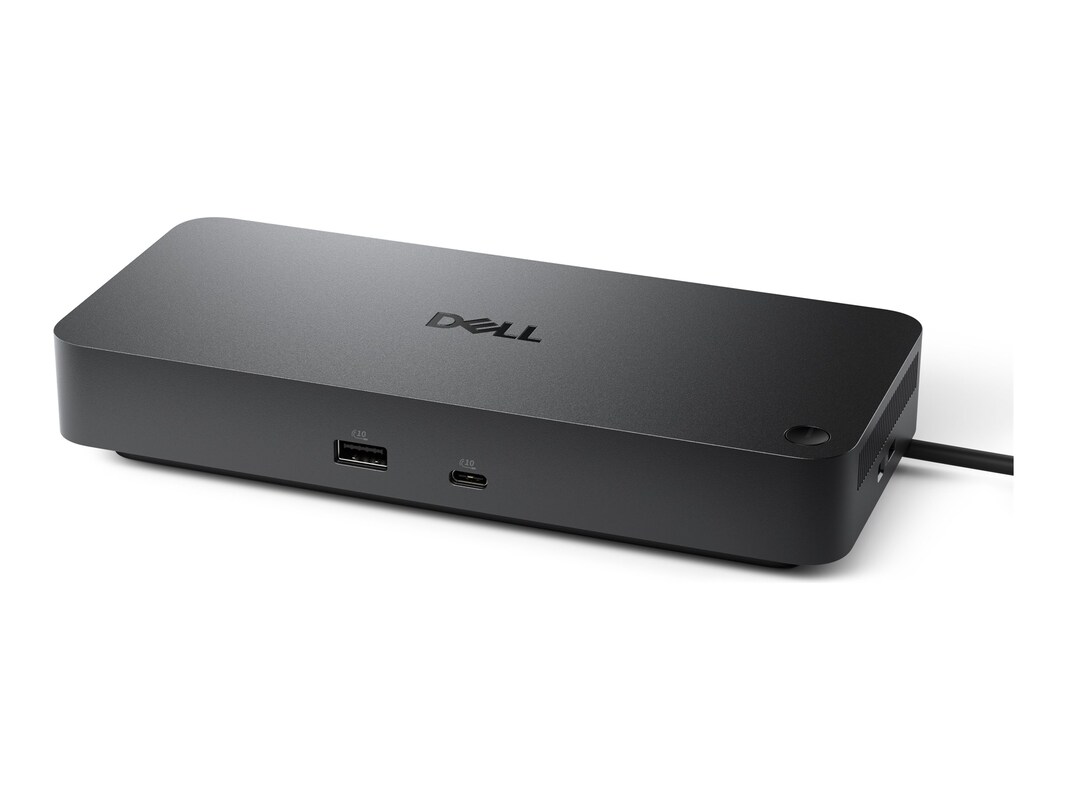

Conquer intense workloads with the most powerful Thunderbolt 5 Dock, and with up to 300W power delivery.
-
1.40 lbs
-
Audio Output Type: None
-
Connector: DisplayPortConnector: HDMIConnector: PowerConnector: RJ-45Connector: Thunderbolt 5Connector: USB 3.2 Gen2 Type A x 4Connector: USB-C x 2Connector Type: DisplayPortConnector Type: HDMIConnector Type: NetworkConnector Type: PowerConnector Type: Thunderbolt 5Connector Type: USB 3.2Connector Type: USB Type CConnector Type: USB-A
-
Dock, power adapter, power cord, documentation
-
Color: BlackColor Family: BlackManufacturer Product Line: Dell ProModel: Thunderbolt 5 Dock WD25TB5Weight Taxonomy: 21.9oz
-
CD/DVD Type: None
-
1.4"h x 8.1"w x 3.5"d
-
I/O:
(2) USB-C 3.2 Gen 2 (one DisplayPort 2.1)
(2) Thunderbolt 5
(4) USB-A 3.2 Gen 2 with PowerShare
(1) HDMI 2.1
(2) DisplayPort 2.1
(1) RJ-45 LAN
(1) Power in
-
Power Provided: 330Voltage Provided: 19.5V
-
Power delivery:
300W (Dell systems)
240W (non-Dell systems)
-
Networking Protocol: 2.5 Gigabit EthernetNetworking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: Gigabit Ethernet
-
Due to manufacturer restrictions, all sales on this item are final. For defective product, technical issues or support please contact Dell Technical Support directly at 1-800-624-9896.
-
1.37 lbs
-
Compliant Standards: DisplayPort 2.1Compliant Standards: Thunderbolt 5
-
Storage Controller Type: None
-
Windows 10/11
Ubuntu 24.04
Red Hat Enterprise Linux 9.7
ChromeOS 141
macOS
OS Required: Apple MacOSOS Required: Google Chrome OSOS Required: Google Chrome OS 141OS Required: Microsoft Windows 10 / 11OS Required: Red Hat Enterprise LinuxOS Required: Red Hat Enterprise Linux 9.7OS Required: Ubuntu 24.04OS Required: Windows 10OS Required: Windows 11 -
43211602
-
Warranty Period: 3 year limited warranty
