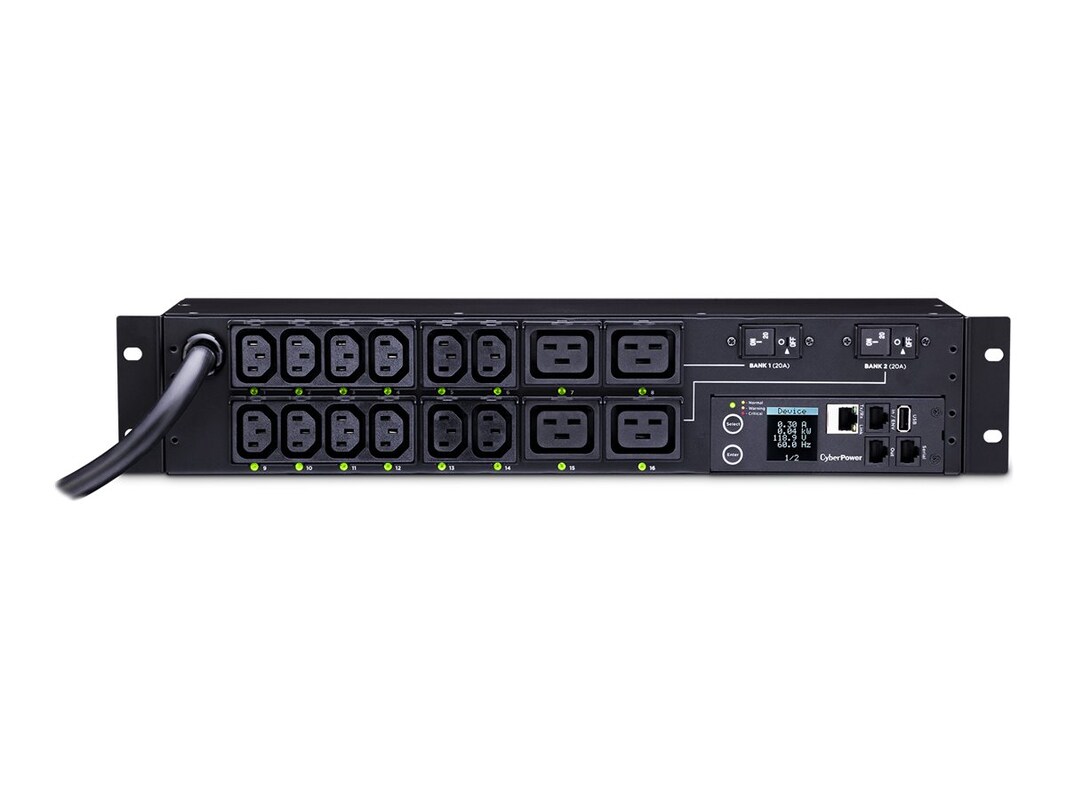

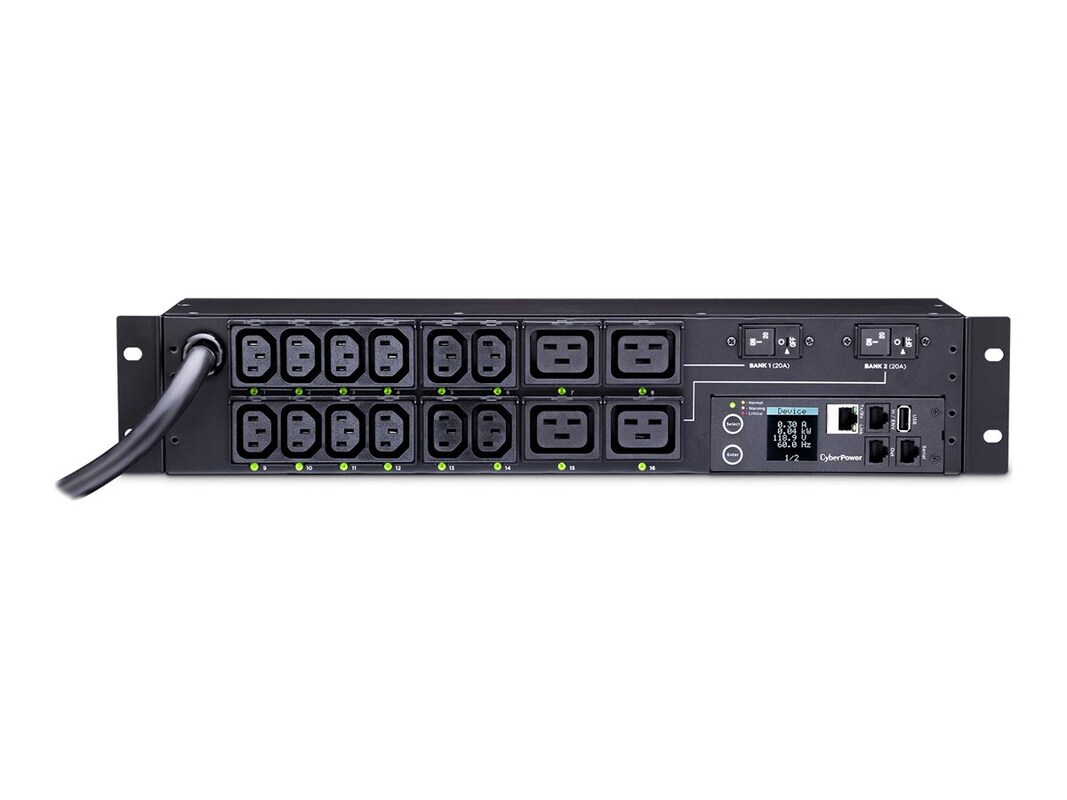

CyberPower Switched 2U PDU 200-240V 30A, L6-30P Input, (12) C13 (4) C19 Outlets

9.90 lbs

Power Distribution:
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design:
Safeguards against accidental power shutdown.

Switchable Outlets:
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

CyberPower Management Console:
CyberPower Management Console is a hardware interface built into switched PDUs. Users can remotely switch individual PDU.

Remote and Local Monitoring:
The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.

Automatic Event Notifications:
Provide immediate updates about power events via email, SMS text, or SNMP traps.

Upgradeable Firmware:
Downloadable firmware updates that provide improvements to programs that run the PDU.

Power Control Display:
Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Network-Grade Plugs and Outlets:
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Twist-Lock Plug:
The user can secure the plug into an outlet by twisting and locking into place to prevent accidental disconnection.

Long Input Power Cord:
Allows the user to place the PDU where it’s needed because the power cord reaches distant power sources.

Cord Retention Tray:
Secures power cords. Keeps cord organized and accessible by securing power cord. The cord-retention tray also helps cords stay plugged in.

Configurable Mounting Brackets:
Allows for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

PDU, (2) mounting brackets, (12) M4x8 bracket mounting screws, (6) M5x12 rack mounting screws and washers, (2) cord retention trays, (12) M3x6 cord retention tray screws, (24) cable ties, RJ45/DB9 Serial port connection cable, documentation

3.5"H x 17.05"W x 4.41"D

Connectivity: RJ45, Serial
SNMP / HTTP Remote Monitoring:
IPv4,
TCP/IP,
UDP,
SNMPv1,
HTTP,
NTP,
DNS,
Telnet,
DHCP,
SMTP,
FTP,
IPv6,
SNMPv3,
HTTPs,
SSH,
SSL,
TLS,
LDAP(S),
RADIUS,
Syslog,
CLI,
Windows AD

PDU Type: Switched
Phase: Single Phase

Nominal Input Voltage: 200-240Vac
Frequency: 50Hz/60Hz
Maximum Input Current: 30A (Derated to 24A)
Plug Type: NEMA L6-30P
Plug Style: Straight, Twist Lock
Cord Length (ft.): 12
Cord Length (m): 3.7

Nominal Output Voltage: 200-240Vac
Overload Protection: 30A (Derated 24A)
Overload Protection (Each Bank): 20A
Outlets – # of Banks" 2
Outlets – Total: 16
Outlets – Front: 16
Outlets – Rear: 0
Outlet Type: (12) IEC-320 C13, (4) IEC-320 C19
Controllable Outlets: 16
Meter Readout: Power Control Display
LED Indicators: Tx/Rx, LINK, Normal/Warning/Critial Status

Standard Form Factor: 2U Rackmount
Form Factors Supported: Vertical or horizontal mounting supported in wallmount applications, racks and a variety of other surface types
Style: Horizontal Rackmount, Wallmount
Enclosure Construction: Steel
Cord Retention Tray/Cord Organizers: Yes
External Site Ground Pin: Yes
Adjustable Mounting Brackets: 1 set
Installed Rack Height: 2U

Operating Temperature: 32 F to 113 F (0 C to 45 C)
Operating Humidity: 0% – 95% non-condensing
Maximum Operating Elevation: 11,483 ft (3,500 m)
Maximum Storage Elevation: 50,000 ft (15,000 m)
