Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
-
In Stock
- Ships in 24-48 Hours
Ordering Information
Was
$179.95
$25.14 (13%)
Now
$154.81
Quick View
Getting Details

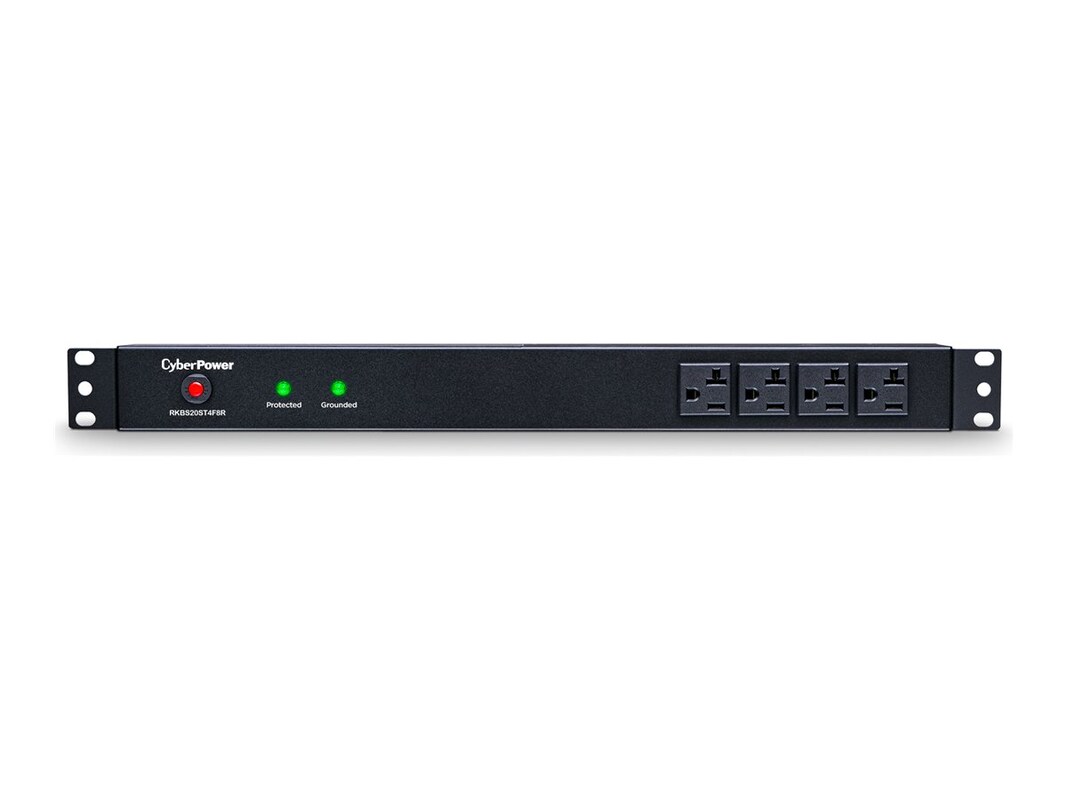

The CyberPower 12-outlet (4 Front and 8 Rear) rack mounted Rackbar surge suppressor (RKBS20ST4F8R) provides 120V, 20A output and a surge suppression rating of 1,800 joules. It distributes power to (12) NEMA 5-20R receptacles from a single NEMA L5-20P twist-lock plug. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty and $150,000 Connected Equipment Guarantee ensures the Rackbar surge suppressor is free of defects in design, assembly, material or workmanship.
-
4.90 lbs
-
Rack Size: 1U
Style: Rackmount, Vertical Rackmount, Under-Counter
Form Factors Supported: 1U rackmount, 0U vertical rackmount, undercounter installation supported
Cord Retention Tray/Cord Organizers: Yes
Adjustable Mounting Brackets: (2) sets(L-short/L-long)
External Site Ground Pin: Yes
Material of Construction: Metal
Certifications: UL1363 UL1449 certified by ETL(USA), CSA C22.2(Canada), RoHS Compliant -
# Ports: 12Connector: Power NEMA 5-20 (F)Connector: Power NEMA L5-20Connector: Power NEMA L5-20 (M)
-
Unit, mounting brackets, documentation
-
Color: BlackForm Factor: Rack-mountableManufacturer Product Line: CyberPower Rackbar Surge ProtectionModel: RKBS20ST4F8RWeight Taxonomy: 4.85lbs
-
1.75"h x 17.5"w x 2.25"d
-
Input
Plug Type: NEMA L5-20P
Plug Style: Straight
Cord Length: 15ft
Output
Outlets, Total: (12)
Outlets, Front: (4)
Outlets, Rear: (8)
Outlet Type: NEMA 5-20R -
Surge Protection Rating: 1800JoulesSurge Suppression: YesVoltage Provided: 120VVoltage Provided: AC 120V
-
Input
Voltage: 120V
Frequency: 50Hz/60Hz
Maximum Input Current: 20A
Output
Overload Protection: 20A
Nominal Output Voltage: 120V
LED Indicators: Power On(Green), Grounded (Green)
Surge Protection and Filtering
Surge Suppression: 1,800 Joules
Protection Modes: N-H, N-G, and H-G
Maximum Surge Current: 90,000 Amps
Maximum Surge Voltage: 6,000 Volts
Clamping Voltage: N-H, H-G 400V, N-G 500V
Response Time: (1) nanosecond
EMI/RFI Filtration: Yes
Attenuation: Up to 50dB -
This product is subject to our return policy. Please see our complete return policy for details.
-
41.99 lbs
-
Compliant Standards: CSA C22.2Compliant Standards: ETLCompliant Standards: RoHSCompliant Standards: UL 1363Compliant Standards: UL 1449
-
39121610
-
Warranty Period: Limited lifetime
