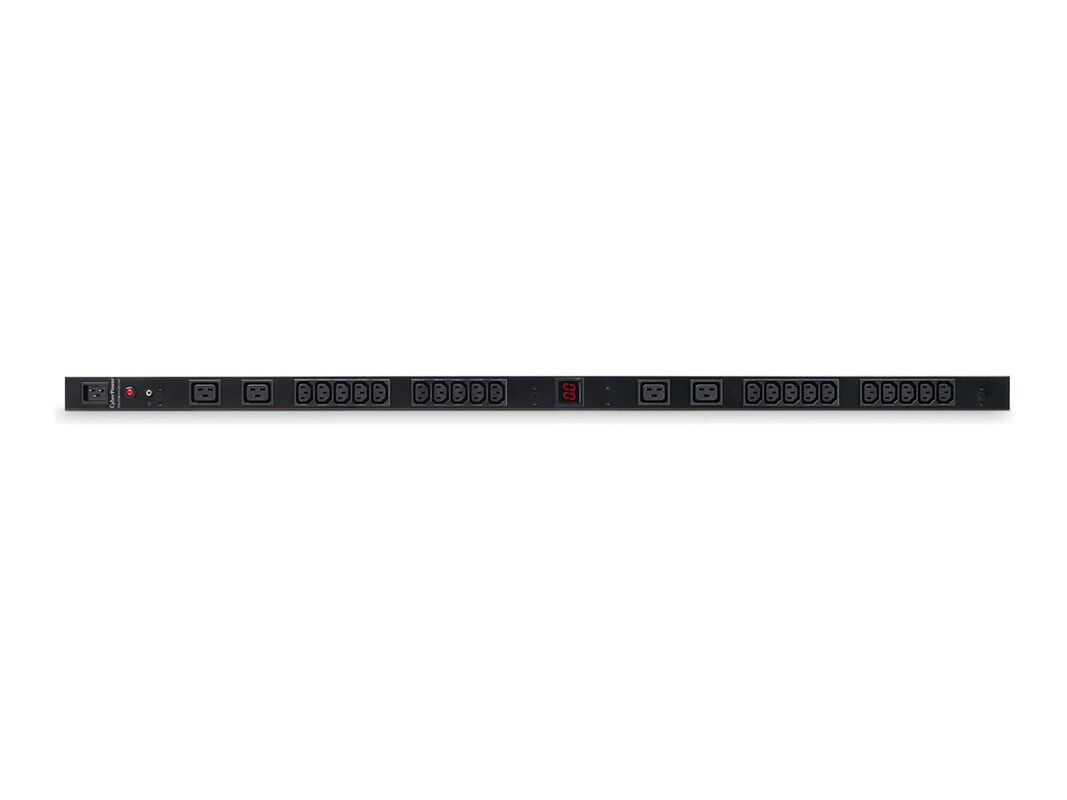

The CyberPower 24-outlet (24 Front) 0U vertical rack mount metered power distribution unit (PDU20MVHVIEC24F) provides 200/230V, 20A output. It distributes power to (24) IEC-320 (4 C19, 20 C13) receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
-
7.00 lbs
-
Specifications
Style: Rackmount, Vertical Rackmount, Wallmount/Under-Counter
Form Factors Supported: Vertical or horizontal mounting supported in wallmount applications, racks and a variety of other surface types
Cord Retention Tray/Cord Organizers: Yes
Adjustable Mounting Brackets: (3) sets (L-short/L-long/flat)
External Site Ground Pin: Yes
Certifications: UL60950_1 certified by ETL (USA), CSA C22.2 (Canada), RoHS Compliant -
# Ports: 24Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power IEC 320 EN 60320 C20 (M)Connector: Power IEC 60320 C20
-
PDU, cord organizers, adjustable mounting brackets, documentation
-
Color: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableWarranty Period: Limited lifetime
-
48"h x 1.75"w x 2.25"d
-
Plug Type: IEC-320 C20
Plug Style: Straight
Cord Length: 10ft
Outlets, Total: (24)
Outlets, Front: (4) C19 + (20) C13
Outlets, Rear: 0
Outlet Type: IEC-320 C19/C13 -
Voltage Provided: 230VVoltage Provided: AC 200-230V
-
Input
Voltage: 200V/230V
Frequency: 50/60Hz
Maximum Input Current: 20A (derated to 16A)
Output
Overload Protection: 16A
Nominal Output Voltage: 200V/230V -
This product is subject to our return policy. Please see our complete return policy for details.
-
12.4 lbs
-
Compliant Standards: CSA C22.2Compliant Standards: ETLCompliant Standards: RoHSCompliant Standards: UL 60950-1
-
39121017
-
Lifetime
-
Lifetime
