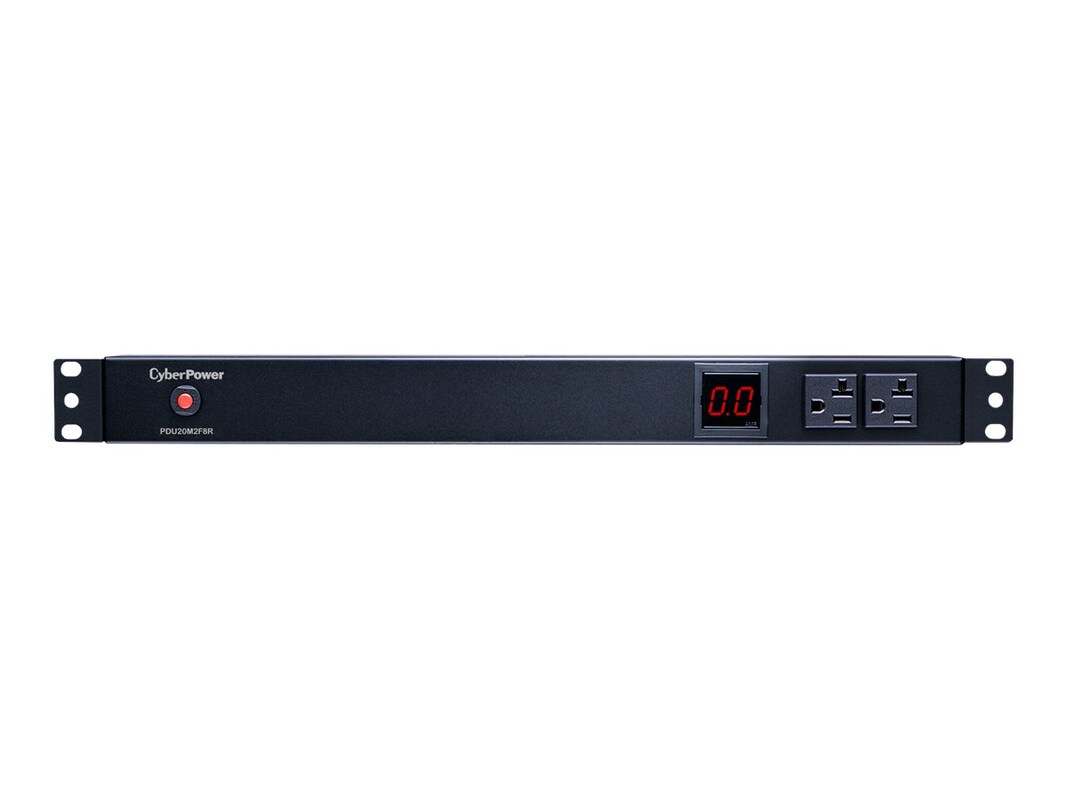

                The CyberPower 10-outlet (2 Front and 8 Rear) rack mount Metered power distribution unit (PDU20M2F8R) provides 120V, 20A output. It distributes power to (10) NEMA 5-20R receptacles from a single NEMA 5-20P plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.

        -
                5.00 lbs
-
                Physical
 Rack Size: 1U
 Style: Rackmount, Vertical Rackmount, Under-Counter
 Form Factors Supported: 1U rackmount, 0U vertical rackmount, undercounter installation supported
 Cord Retention Tray/Cord Organizers: Yes
 Adjustable Mounting Brackets: (2) sets (L-short/L-long)
 External Site Ground Pin: Yes
 Certifications
 UL1363 certified by ETL (USA), CSA C22.2 (Canada)
 RoHS Compliant
-
                # Ports: 10Connector: Power NEMA 5-20Connector: Power NEMA 5-20 (F)Connector: Power NEMA 5-20 (M)
-
                PDU, adjustable mounting brackets (2 sets), documentation
-
                Attributes: MeteredColor: BlackForm Factor: 1U RackmountForm Factor: Rack-mountableManufacturer Product Line: CyberPower Metered SeriesModel: PDU20M2F8RWeight Taxonomy: 5.07lbs
-
                1.75"h x 17.5"w x 2.25"d
-
                Plug Type: NEMA 5-20P
 Plug Style: Straight
 Cord Length: 15 feet
 Outlets: Total (10), Front (2), Rear (8)
 Outlet Type: NEMA 5-20R
-
                Voltage Provided: 120VVoltage Provided: AC 120V
-
                Input
 Voltage: 120VAC
 Current: 20A max
 Frequency: 50/60Hz
 Output
 Overload Protection: 20A
 Nominal Output Voltage: 120VAC
-
                This product is subject to our return policy. Please see our complete return policy for details.
-
                6.67 lbs
-
                Compliant Standards: CSA C22.2Compliant Standards: ETLCompliant Standards: RoHSCompliant Standards: UL 1363
-
                39121017
-
                Warranty Period: Limited lifetime
