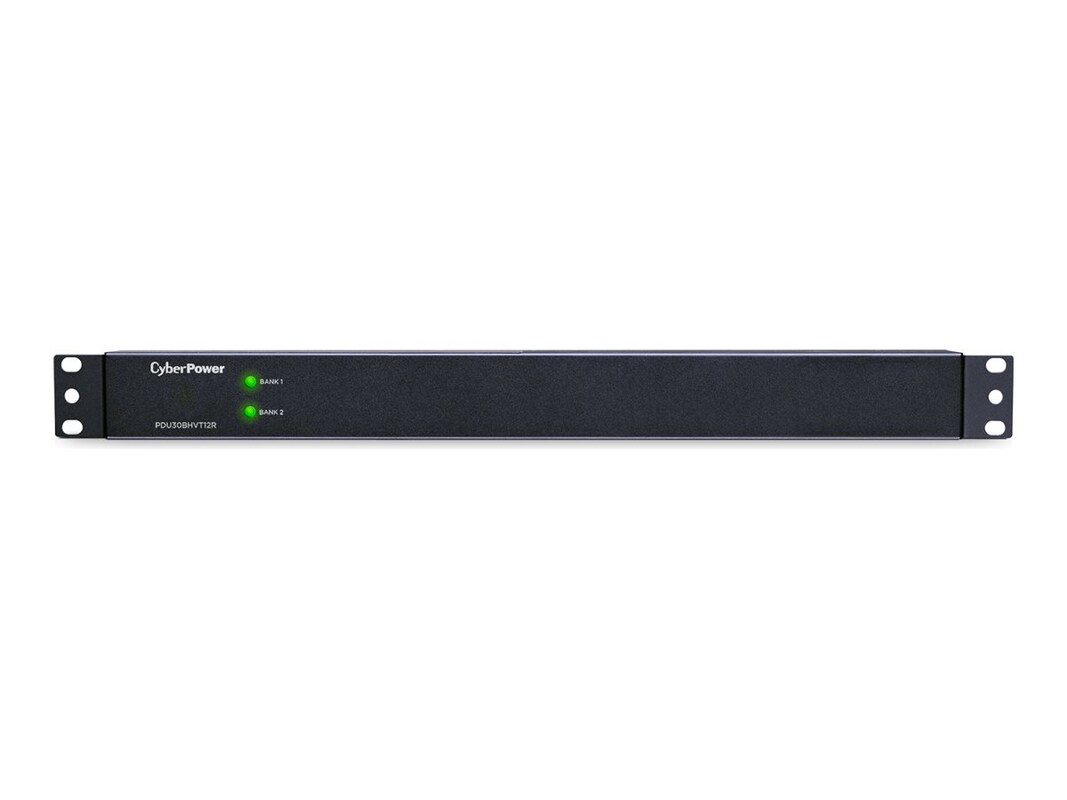

The CyberPower 12-outlet (12 Rear) rack mount basic power distribution unit (PDU30BHVT12R) provides 200V/230V 30A output. It distributes power to (12) IEC-320 C13 receptacles from a single NEMA L6-30P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.
-
4.50 lbs
-
Physical
Rack Size: 1U
Style: Rackmount, Vertical Rackmount, Under-Counter
Form Factors Supported: 1U rackmount, 0U vertical rackmount, undercounter installation supported
Cord Retention Tray/Cord Organizers: Yes
Adjustable Mounting Brackets: (2) sets (L-short/L-long)
External Site Ground Pin: Yes
Certifications
UL1363 certified by ETL (USA), CSA C22.2 (Canada)
RoHS Compliant -
# Ports: 12Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power NEMA L6-30Connector: Power NEMA L6-30 (M)
-
PDU, adjustable mounting brackets (2 sets), documentation
-
Color: BlackForm Factor: 1U RackmountForm Factor: Rack-mountableManufacturer Product Line: CyberPower Basic SeriesModel: PDU30BHVT12RWeight Taxonomy: 4.41lbs
-
1.75"h x 17.5"w x 1.5"d
-
Plug Type: NEMA L6-30P
Plug Style: Straight
Cord Length: 10 feet
Outlets: Rear (12) IEC-320 C13 -
Voltage Provided: 230VVoltage Provided: AC 200/230V
-
Input
Voltage: 200/230VAC
Current: 30A max (derated to 24A)
Frequency: 50/60Hz
Output
Overload Protection: (2) 16A CB
Nominal Output Voltage: 200/230VAC -
This product is subject to our return policy. Please see our complete return policy for details.
-
6.3 lbs
-
Compliant Standards: CSA C22.2Compliant Standards: ETLCompliant Standards: RoHSCompliant Standards: UL 60950-1
-
39121017
-
Warranty Period: Limited lifetime
