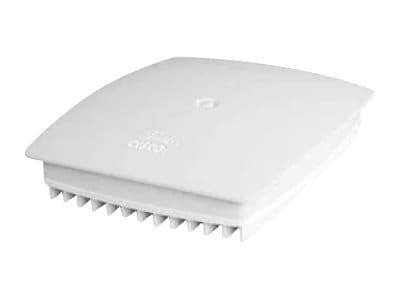

The Cisco USC 8738 integrates multiaccess technology into a single small cell to support concurrent 3G and LTE operation with SON capability.
The Cisco USC 8000 Series offers mobile operators transparent and fully coordinated mobile coverage for environments where the macro network cannot do so cost-effectively by using a single, high-density, multitechnology controller for management and autoconfiguration of the in-building system. These locations range from venues for indoor events with high data requirements to large enterprises in high-density urban areas.
The Cisco USC 8738 scales easily to provide concurrent 3G voice coverage relief as well as positions operators to offload high-capacity 4G demands to meet next-generation customer needs, such as voice over LTE and video. The solution can support up to 200 small cells, providing coverage and capacity for more than 500,000 square feet (46,000 square meters) of building space. The USC 8738 can be installed easily on walls or ceilings, and its network connectivity and power are provided over Ethernet. The USC 8738 is convection-cooled with a built-in antenna, but is also available with external antennas.
The Cisco USC 8000 Series offers mobile operators transparent and fully coordinated mobile coverage for environments where the macro network cannot do so cost-effectively by using a single, high-density, multitechnology controller for management and autoconfiguration of the in-building system. These locations range from venues for indoor events with high data requirements to large enterprises in high-density urban areas.
The Cisco USC 8738 scales easily to provide concurrent 3G voice coverage relief as well as positions operators to offload high-capacity 4G demands to meet next-generation customer needs, such as voice over LTE and video. The solution can support up to 200 small cells, providing coverage and capacity for more than 500,000 square feet (46,000 square meters) of building space. The USC 8738 can be installed easily on walls or ceilings, and its network connectivity and power are provided over Ethernet. The USC 8738 is convection-cooled with a built-in antenna, but is also available with external antennas.
-
3.00 lbs
-
Connectivity Technology: Wireless
-
(1) Universal Small Cell 8738 (mounting hardware included)
Ceiling or wall mount -
Antenna Type: InternalColor: WhiteWeight Taxonomy: 3.02lbs
-
Features:
- Multiple FDD band combinations
- 32 UMTS channels, 32 active LTE users, 128 LTE RRC_Connected users
- Peak DL/UL UMTS throughput of 21 or 5 Mbps
- Peak DL/UL LTE throughput of 100 or 50 Mbps
- Ability to deploy over existing Ethernet switching infrastructure (VLAN)
- Power-over-Ethernet Plus (PoE+)
- Wall and ceiling mountable
- Certificate-based authentication with Cisco USC 8088 Controller
Environmental Properties:
Temperature:
- Operating, Verticall Mounted: 32 to 122 F (0 to 50 C)
- Operating, Horizontally Mounted: 32 to 104 F (0 to 40 C)
- Storage: 32 to 185 F (0 to 85 C)
Humidity:
- Operating: 0 to 90%
- Storage: 0 to 90% -
Modem Type: Wireless cellular modem
-
2.1"h x 8.1"w x 9.4"d
-
(1) RJ-45
-
Cellular Enhancement Protocol: LTECellular Enhancement Protocol: UMTSNetworking Protocol: 100 Gigabit EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.3atNetworking Protocol: IPSecNetworking Protocol: X.509
-
Due to manufacturer restrictions, all sales on this item are final.
-
0 lbs
-
Compliant Standards: ANATELCompliant Standards: CAN/CSA-C22.2 No. 60950-1Compliant Standards: Directive 2002/95/ECCompliant Standards: EN 301 489.23Compliant Standards: EN 301 489-1Compliant Standards: EN 301 908-1Compliant Standards: EN 301 908-14Compliant Standards: EN 301 908-3Compliant Standards: EN 50385Compliant Standards: EN 60950Compliant Standards: EN 62311Compliant Standards: FCC Part 15 ACompliant Standards: FCC Part 24Compliant Standards: FCC Part 27Compliant Standards: ICES-003 Class ACompliant Standards: IEC 60950Compliant Standards: IEEE 1588Compliant Standards: IFETELCompliant Standards: IP30Compliant Standards: NRTLCompliant Standards: R&TTE Directive 1999/5/ECCompliant Standards: RSS-133Compliant Standards: RSS-139Compliant Standards: UL 60950-1
-
43222631
-
Call for Warranty
-
Call for Warranty
-
The Cisco USC 8738 includes 1-year limited hardware warranty with a 30-day return for repair. More detailed warranty information is available on Cisco.com at the Product Warranties page.
