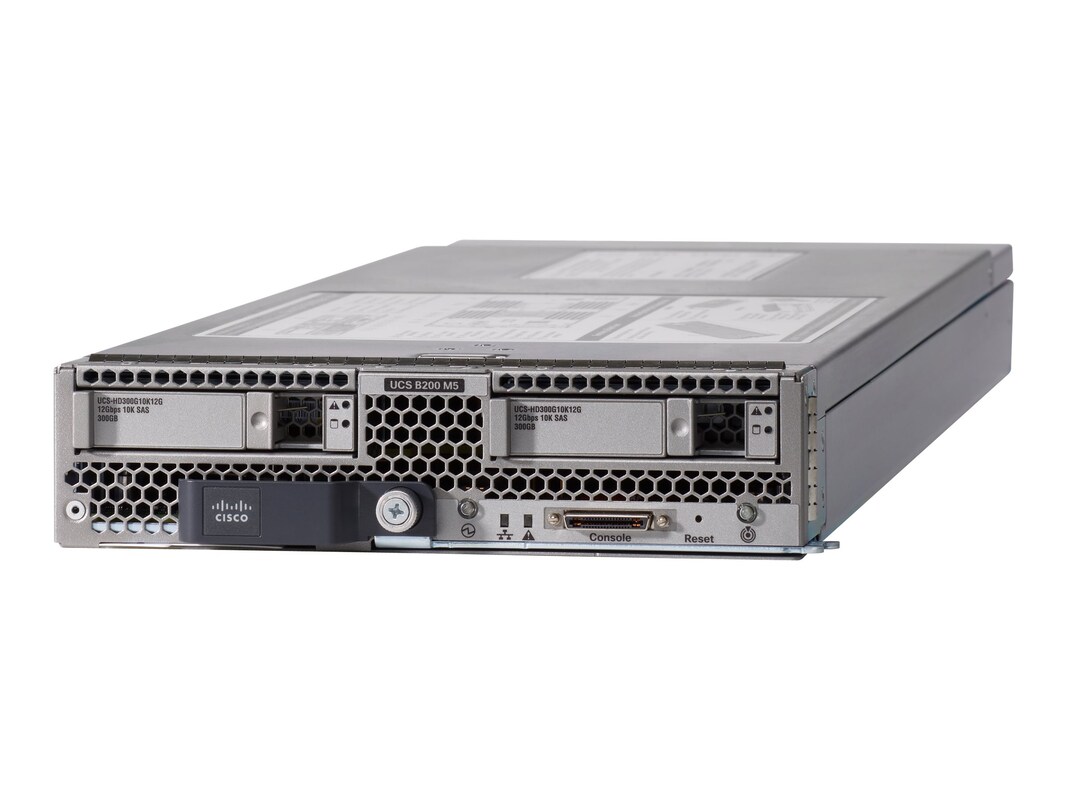

Delivering performance, versatility and density without compromise, the Cisco UCS B200 M5 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database. The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Cisco's Unified Computing System portfolio in a half-width blade form factor.
-
Blade server, (2) CPU heatsinks, (2) blanking panels, (12) DIMM blanks, documentation
-
EPEAT Compliant: YesePEAT Level: EPEAT Bronze
-
Chassis Form Factor: BladeColor: GrayForm Factor: DIMM 288-pinPrinter Type: NoneSystem Type: ServerWarranty Period: 3 yearsWeight Taxonomy: 9.5lbs
-
Cache Memory (installed): 13MBFlash Memory Form Factor: SD Memory CardMemory Attributes: Load-Reduced DIMM (LRDIMM)Memory Attributes: Through-silicon via DIMMs (TSV DIMMs)RAM (installed): 96GBRAM (max): 3072GBRAM Technology: DDR4 SDRAM
-
96GB (6x16GB) ECC DDR4 SDRAM, upgradeable to 3072GB.
There are twelve DIMM slots. Six slots are occupied by removable 16GB modules; the other slots are open.
Video memory:
Integrated Matrox G200e graphics. -
There is no operating system pre-installed.
-
OS Provided: No operating systemOS Provided: No Operating System Installed
-
CD/DVD Type: No Optical DriveCD/DVD Type: None
-
2.0"h x 9.6"w x 24.4"d
-
Expansion slots:
(2) M.2 card slots
(2) SD card slots
(2) Expansion slots
Expansion bays:
(2) 2.5" HS bays
I/O:
(1) KVM
(1) USB 3.0 (internal)
Networking controller:
Cisco UCS Virtual Interface Card 1345, supports 40GbFCoE -
# Processors Installed: 2# Processors Supported: 2Data Bus Speed: 2400MHzNumber of Cores: 10-coreProcessor Features: Intel Turbo Boost TechnologyProcessor Manufacturer: IntelProcessor Model Number: 4114Processor Speed: 2.2GHzProcessor Speed (Boosted): 3GHzProcessor Type: Xeon SilverProcessor Upgradability: Upgradable
-
Networking Protocol: 40Gb Fibre Channel over Ethernet (FCoE)
-
Due to manufacturer restrictions, all sales on this item are final.
-
1 lbs
-
Compliant Standards: ACPI 4.0Compliant Standards: EPEAT Bronze
-
Hard Drive Capacity: 0GBHard Drive Type: Hot-swapHard Drive Type: No HDDHard Drive Type: NoneStorage Controller Type: SATA/SAS
-
43211512
-
Display Technology: None.Video Card: Matrox G200e
