Temporarily Out-of-Stock
- Call for next available delivery

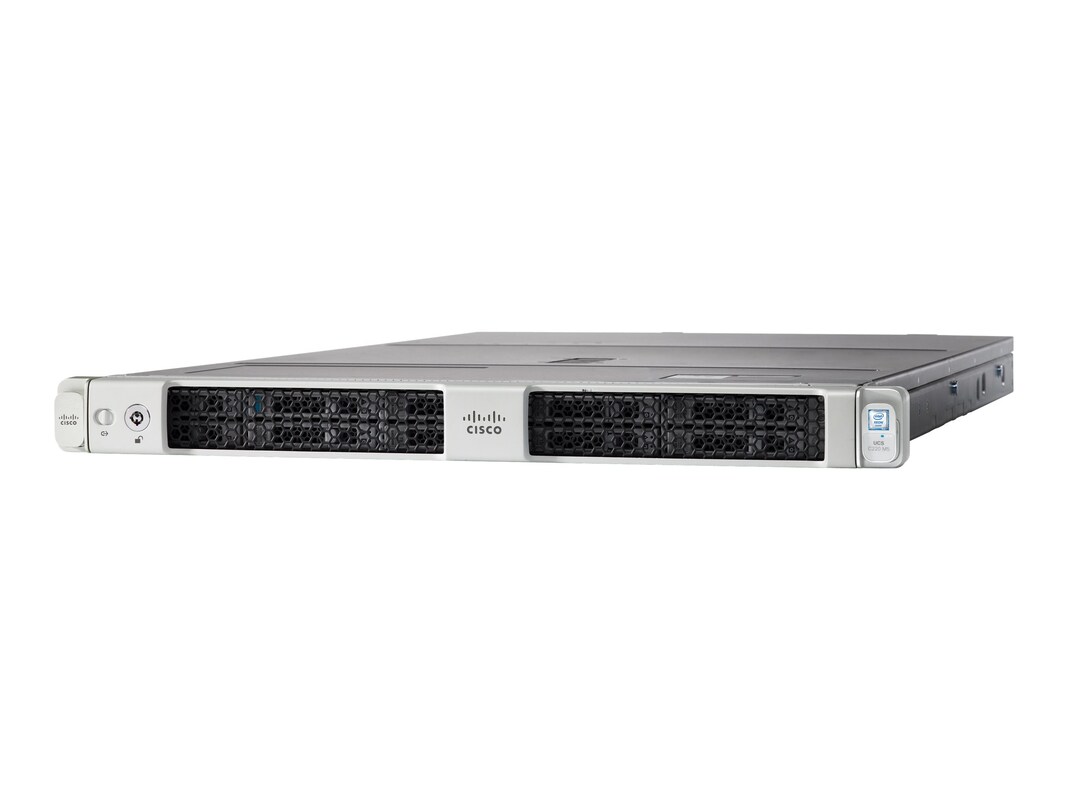

The Cisco UCS C220 M4 rack server is a versatile, high-density, general-purpose enterprise infrastructure and application server. It delivers high performance for a wide range of enterprise workloads, including virtualization, collaboration, and bare-metal applications.
-
# External 2.5" Bays: 10
-
Server, (2) power supply blanking panels, (10) drive blanking panels, interposer board (8 drive), (2) power supplies, documentation
-
Chassis Form Factor: 1U RackmountChassis Form Factor: Rack-mountableColor: GrayColor: SilverForm Factor: DIMM 288-pinManufacturer Product Line: Cisco UCSModel: SmartPlay Select C220 M5S Standard 1Printer Type: NoneSystem Type: Server
-
Operating temperature: 41 to 95 F
Operating humidity: 10 to 90%, non-condensing -
Cache Memory (installed): 11MBFlash Memory Form Factor: SD Memory CardMemory Attributes: 6-channel memory architectureMemory Attributes: Load-Reduced DIMM (LRDIMM)Memory Rating: PC4-21300RAM (installed): 64GBRAM (max): 3072GBRAM Technology: DDR4 SDRAM
-
64GB (4x16GB) 2666MHz* ECC DDR4 SDRAM, upgradeable to 3072GB.
There are twenty-four 288-pin DIMM slots. Four slots are occupied by removable 16GB modules; the other slots are open.
*Memory will operate at 2400MHz due to processor limitations
Memory maximums:
Load-reduced ECC: 3072GB
Video memory: integrated ASPEED Pilot 4 graphics with 16MB dedicated video RAM. Connects via VGA interface. -
There is no operating system pre-installed.
-
OS Provided: No Operating System Installed
-
CD/DVD Type: No Optical DriveCD/DVD Type: None
-
1.7"h x 16.9"w x 29.8"d
-
Expansion slots:
(1) PCIe 3.0 x24, half-length/half-height (x16 mode/NCSI support)
(1) PCIe 3.0 x24, three-quarter-length/full-height (x16 mode)
(2) mLOM
(1) SD Memory Card
Expansion bays:
(10) 2.5" HS bays
I/O:
(2) USB 3.0
(1) VGA
(1) RJ-45 serial
(2) RJ-45 LAN (10GbE)
(1) RJ-45 management
(1) KVM
(2) Power in
Networking controller:
Cisco UCS Virtual Interface Card 1387, Intel X550
Features: Wake on LAN (WoL)
Storage controller:
Integrated RAID controller, SAS 12Gbps interface type, 2GB buffer size, supports RAID levels 0/1/10. -
# Power Supplies Installed: 2# Power Supplies Supported: 2Power Provided: 1540WPower Provided: 770
-
(2) 770W hot-plug power supplies
1+1 power redundancy
Nominal voltage: 120 to 230V AC, 50 to 60Hz -
# Processors Installed: 2# Processors Supported: 2Data Bus Speed: 2400MHzNumber of Cores: 8-coreProcessor Features: Intel Turbo Boost TechnologyProcessor Manufacturer: IntelProcessor Model Number: 4110Processor Speed: 2.1GHzProcessor Speed (Boosted): 3GHzProcessor Type: Xeon SilverProcessor Upgradability: Upgradable
-
Networking Protocol: 10 Gigabit EthernetNetworking Protocol: 40 Gigabit EthernetNetworking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: Wake on LAN (WoL)Remote Management Protocol: CLIRemote Management Protocol: IPMI 2.0Remote Management Protocol: SNMP 2Remote Management Protocol: SNMP 3
-
Due to manufacturer restrictions, all sales on this item are final. Call the Cisco Technical Assistance Center (TAC) for defective product and technical issues at 1-800-553-6387
-
1 lbs
-
Compliant Standards: ACPI 4.0Compliant Standards: AS/NZS 60950-1Compliant Standards: AS/NZS CISPR 32 Class ACompliant Standards: CAN/CSA C22.2 No. 60950-1 Second EditionCompliant Standards: CISPR 24Compliant Standards: CISPR 32 Class ACompliant Standards: CNS 13438 Class ACompliant Standards: Directive 2014/30/EUCompliant Standards: Directive 2014/35/EUCompliant Standards: EN 300386Compliant Standards: EN 55032 Class ACompliant Standards: EN 60950-1 Second EditionCompliant Standards: EN55024Compliant Standards: EN61000-3-2Compliant Standards: EN61000-3-3Compliant Standards: FCC CFR47 Part 15 ACompliant Standards: GB 4943-2001Compliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1 Second EditionCompliant Standards: KN32 Class ACompliant Standards: KN35Compliant Standards: UL 60950-1 Second EditionCompliant Standards: VCCI Class A
-
Hard Drive Type: Hot-swapHard Drive Type: NoneHard Drive Type: RemovableStorage Controller RAID Level: JBODStorage Controller RAID Level: RAID 0Storage Controller RAID Level: RAID 1Storage Controller RAID Level: RAID 10Storage Controller Type: RAIDStorage Controller Type: SAS 12.0 Gbps
-
43211501
-
Display Technology: None.Video Card: ASPEED Pilot 4Video Card: IntegratedVideo RAM (installed): 16MB
-
Warranty Period: 3 years
