Temporarily Out-of-Stock
- Call for next available delivery
- ***NOT SOLD STANDALONE***

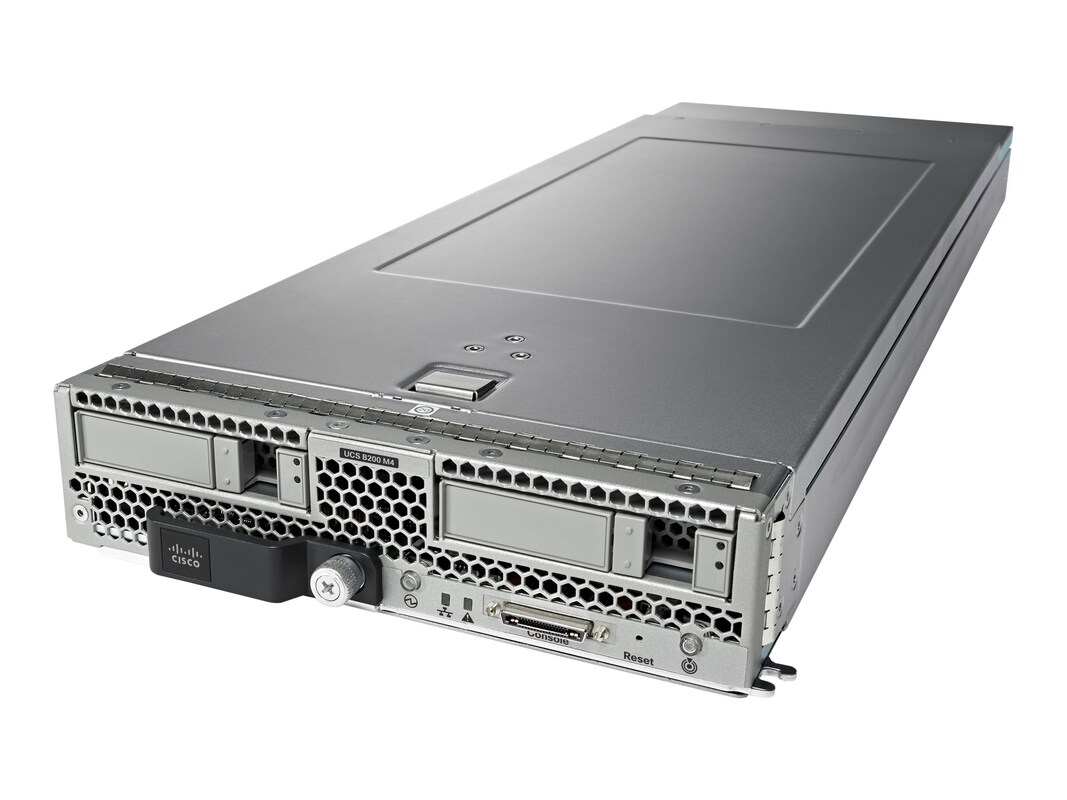

Optimized for data center or cloud, the Cisco UCS B200 M4 can quickly deploy stateless physical and virtual workloads, with the programmability of the UCS Manager and simplified server access of SingleConnect technology.
The UCS B200 M4 is built with the Intel Xeon processor family, 128 GB of memory (with 32 GB DIMMs), up to two drives, and up to 80 Gbps total bandwidth. It offers exceptional levels of performance, flexibility, and I/O throughput to run the most demanding applications.
In addition, Cisco UCS has the architectural advantage of not having to power and cool switches in each blade chassis. Having a larger power budget available for blades allows Cisco to design uncompromised expandability and capabilities in its blade servers.
The UCS B200 M4 is built with the Intel Xeon processor family, 128 GB of memory (with 32 GB DIMMs), up to two drives, and up to 80 Gbps total bandwidth. It offers exceptional levels of performance, flexibility, and I/O throughput to run the most demanding applications.
In addition, Cisco UCS has the architectural advantage of not having to power and cool switches in each blade chassis. Having a larger power budget available for blades allows Cisco to design uncompromised expandability and capabilities in its blade servers.
-
# External 2.5" Bays: 8
-
Server, (2) CPU Heatsinks, rack rail kit, (8) 2.5 inch HDD blanking panels, keyboard cable, mouse cable, video cable, (2) power supplies, documentation
-
Chassis Form Factor: Rack-mountableColor: SilverForm Factor: DIMM 288-pinPrinter Type: NoneSystem Type: ServerWarranty Period: 3-year warranty
-
Operating temperature: 41 to 95 F
Operating humidity: 10 to 90%, non-condensing -
Cache Memory (installed): 20MBMemory Attributes: Load-Reduced DIMM (LRDIMM)RAM (installed): 64GBRAM (max): 768GBRAM Technology: DDR4 SDRAM
-
64GB (4x16GB) 2400MHz* ECC DDR4 SDRAM, upgradeable to 768GB.
There are twenty-four 288-pin DIMM slots. Four slots are occupied by removable 16GB modules; the other slots are open.
*Memory will operate at 2133MHz due to processor limitations
Memory maximums:
Registered ECC: 384GB
Load-reduced ECC: 768GB
Video memory: integrated Matrox G200e graphics with 8MB dedicated video RAM. Connects via VGA interface. -
There is no operating system pre-installed.
Software included:
Cisco ONE Foundation -
OS Provided: No operating system
-
CD/DVD Type: None
-
1.7"h x 16.9"w x 29.8"d
-
Expansion slots:
(1) PCIe 3.0 x24, 3/4 length, full-height (x16 mode)
(1) PCIe 3.0 x24, 1/2 length, low-profile (x16 mode)
(2) SD card (internal)
Expansion bays:
(8) 2.5" HS bays
I/O:
(2) USB 3.0
(1) VGA
(1) RJ-45 serial
(2) RJ-45 LAN (GbE)
(1) RJ-45 management
(1) KVM (front)
(2) SFP+ LAN (10GbE)
(2) Power in
Networking controller:
Intel l350
Features: PXE support
Storage controller:
(2) Integrated SAS 12Gbps RAID controllers, four channels per controller, supports RAID levels 0/1/5/6/10. -
# Power Supplies Installed: 2# Power Supplies Supported: 2Power Provided: 770
-
(2) 770W hot-plug power supplies
1+1 power redundancy
Nominal voltage: 120 to 230V AC, 50 to 60Hz -
# Processors Installed: 2# Processors Supported: 2Chipset Type: Intel C612Data Bus Speed: 2133MHzNumber of Cores: 8-coreProcessor Features: Intel Turbo Boost TechnologyProcessor Manufacturer: IntelProcessor Model Number: E5-2620V4Processor Speed: 2.1GHzProcessor Speed (Boosted): 3GHzProcessor Type: XeonProcessor Upgradability: Upgradable
-
Networking Protocol: PXE support
-
Due to manufacturer restrictions, all sales on this item are final.
-
0.01 lbs
-
Compliant Standards: AS/NZS 60950-1Compliant Standards: BSMI CNS 13438 Class ACompliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: CSA C22.2 No. 60950-1 Second EditionCompliant Standards: Directive 2004/108/ECCompliant Standards: Directive 2006/95/ECCompliant Standards: EN 300386Compliant Standards: EN 60950-1 Second EditionCompliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN55022 Class ACompliant Standards: EN55024Compliant Standards: GB4943.1-2001Compliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1 Second EditionCompliant Standards: KN22 Class ACompliant Standards: KN24Compliant Standards: UL 60950-1 Second EditionCompliant Standards: VCCI Class A
-
Hard Drive Type: NoneStorage Controller RAID Level: RAID 0Storage Controller RAID Level: RAID 1Storage Controller RAID Level: RAID 10Storage Controller RAID Level: RAID 5Storage Controller RAID Level: RAID 6Storage Controller Type: RAID
-
43211501
-
Display Technology: None.Video Card: Matrox G200eVideo RAM (installed): 8MB
