- 1920 x 1080 Resolution
- 4.00mm 84.60mm Lens
- Capture Speed: 60 frames per second
- AS/NZS CISPR 32 Class A, CISPR 24, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 62236-4, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, KS C 9547, KS C 9815, KS C 9832 Class A, KS C 9835, NEMA TS-2, VCCI Class A Compliant

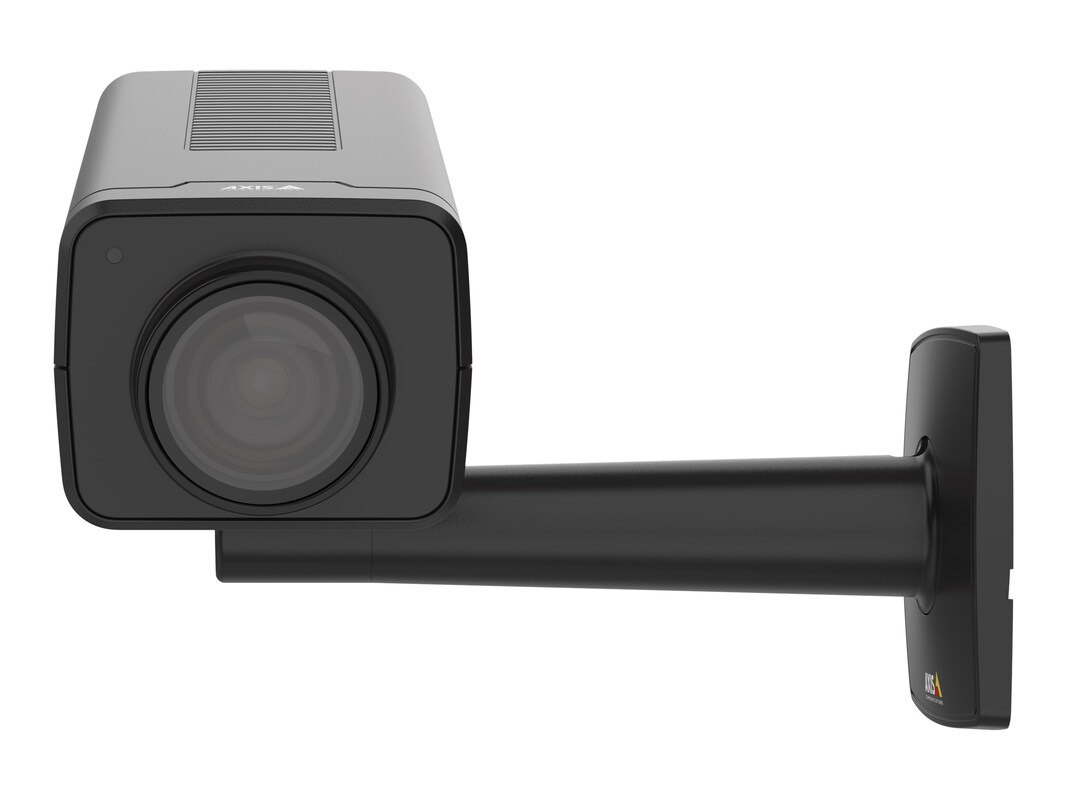

Designed for accessory housings and casings, this high-performance block camera with 21x zoom offers great details at long distances. And, it provides analytics metadata based on deep learning on the edge.
-
1.40 lbs
-
AXIS Q1715 features a deep learning processing unit (DPLU), enabling advanced features and powerful analytics based on deep learning on the edge. AXIS Object Analytics offers highly nuanced object classification and reliable detection with fewer false positives. Additionally, Axis Edge Vault ensures secure storage of all cryptographic keys and certificates and protects your Axis device ID, simplifying the authorization of Axis products on your network. It also includes a Trusted Platform Module (TPM), that is FIPS 140-2 Security Level 2 certified.
This lightweight block camera can be easily built into accessory housings and casings. It includes a serial port for controlling AXIS T99A10 Positioning Unit or pan-tilt motors. Plus, HDMI and HD-SDI outputs let you display live video on a public viewing monitor and you can connect to most video equipment. Thanks to I2C, it’s possible to control IR-illumination when mounted in optional AXIS TQ1809-LE Housing T92G. It even comes with supervised inputs to notify you if the connection is cut. And, it can be powered with DC power and PoE. Even if there is a power outage, redundant DC power ensures a reliable power supply to safeguard your data.
AXIS Q1715 delivers HDTV 1080p at 60 fps and 21x optical zoom for all the details. It ensures the required pixel density and highest image quality for performing analytics. Thanks to Lightfinder 2.0, it captures images with more realistic and saturated colors and sharper images of moving objects. And, Axis Forensic WDR ensures clarity even when there’s both dark and light areas in the scene. It offers electronic image stabilization (EIS) for stable video despite vibration. Furthermore, with scene profiles and auto-rotate functionality, it ensures optimal coverage and always-great image quality. -
Connector: 3.5mm audioConnector: HDMIConnector: microUSBConnector: RJ-45Connector: RS-422Connector: RS-485Connector Type: AudioConnector Type: EthernetConnector Type: HDMIConnector Type: Micro USBConnector Type: RS-422Connector Type: RS-485
-
camera, Windows decoder 1-user license, stand, connector kit, TORX T20 screw driver, RESISTORX L-key, terminal block connector, documentation
-
Color: BlackWarranty Period: 5 yearsWeight Taxonomy: 22.93oz
-
Focal Length (max): 84.6mmFocal Length (min): 4mm
-
RAM (installed): 2GB
-
Optical Sensor Type: RGB CMOS
-
2.6"h x 3.1"w x 7.7"d
-
(1) RJ-45
(1) HDMI Type A
(2) 3.5mm audio (in, out)
(1) 6-pin 2.5mm terminal block
(1) RS485/RS422
(1) MicroSD slot -
Consumption: 13.5W (max); 12W (typ.)
-
Networking Protocol: ARPNetworking Protocol: BonjourNetworking Protocol: CIFSNetworking Protocol: DDNSNetworking Protocol: DHCPNetworking Protocol: DNSNetworking Protocol: EAPNetworking Protocol: FTPNetworking Protocol: HTTPNetworking Protocol: HTTPSNetworking Protocol: ICMPNetworking Protocol: IGMPNetworking Protocol: IGMPv2Networking Protocol: IGMPv3Networking Protocol: IPv4Networking Protocol: IPv6Networking Protocol: LLDPNetworking Protocol: MQTTNetworking Protocol: NTPNetworking Protocol: QOSNetworking Protocol: RTCPNetworking Protocol: RTPNetworking Protocol: RTSPNetworking Protocol: SFTPNetworking Protocol: SMBNetworking Protocol: SMTPNetworking Protocol: SNMP 1Networking Protocol: SNMP 2cNetworking Protocol: SNMP 3Networking Protocol: SOCKSNetworking Protocol: SRTPNetworking Protocol: SSHNetworking Protocol: TCP/IPNetworking Protocol: TLSNetworking Protocol: UDP/IPNetworking Protocol: UPnPNetworking Protocol: USGv6
-
This product is subject to our return policy. Please see our complete return policy for details.
-
1 lbs
-
Compliant Standards: AS/NZS CISPR 32 Class ACompliant Standards: CISPR 24Compliant Standards: CISPR 35Compliant Standards: EN 50121-4Compliant Standards: EN 55032 Class ACompliant Standards: EN 55035Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN 61000-6-1Compliant Standards: EN 61000-6-2Compliant Standards: FCC Part 15 B Class ACompliant Standards: IEC 60068-2-1Compliant Standards: IEC 60068-2-14Compliant Standards: IEC 60068-2-2Compliant Standards: IEC 60068-2-27Compliant Standards: IEC 60068-2-6Compliant Standards: IEC 60068-2-78Compliant Standards: IEC 62236-4Compliant Standards: IEEE 802.1xCompliant Standards: IEEE 802.3afCompliant Standards: IEEE 802.3atCompliant Standards: KS C 9547Compliant Standards: KS C 9815Compliant Standards: KS C 9832 Class ACompliant Standards: KS C 9835Compliant Standards: NEMA TS-2Compliant Standards: VCCI Class A
-
46171610
-
Digital Video Capture Resolution: 1920 x 1080Digital Video Capture Speed: 60frames per second
