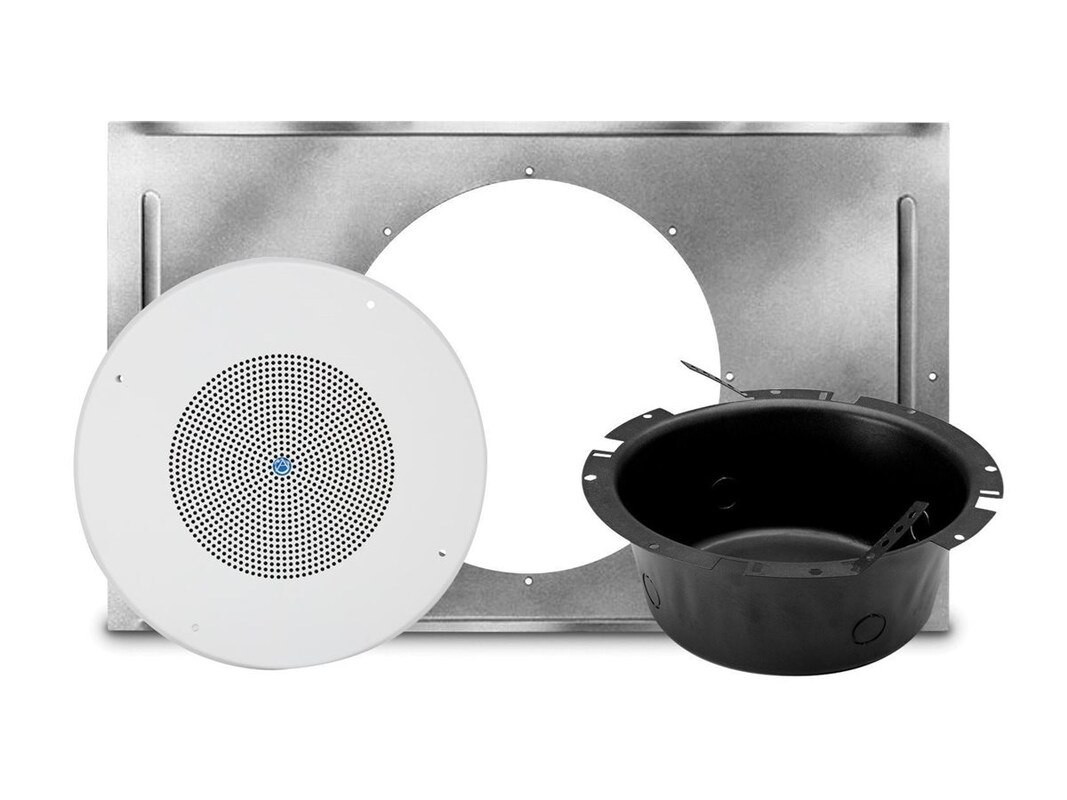

Atlas Sound SD72W Speaker, 62-8 Baffle, CS95-8 Back Box & 81-8R T-Bar Bridge Kit (4-pack)

This is a 4-pack.

This SD72W Speaker, 62-8 Baffle, CS95-8 Back Box & 81-8R T-Bar Bridge Kit is a complete solution for in-ceiling speaker applications. The speaker's sonic qualities ensure that contractors and designers who have worked with the Atlas in the past will know exactly what to expect when they use the SD72W. It is a dual cone, 25 watt 8" (205mm) speaker with a 10oz. ceramic magnet. It includes a curvilinear, treated paper cone for lower harmonic distortion. The speaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation and a factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts. It also operates within a frequency response range of 45Hz - 19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105°.

The SD72W includes a factory installed CRS baffle with concealed speaker mounting studs and includes screw mount hardware. The SD72W baffle features standard mounting holes to accommodate the majority of Atlas 8" tile bridges, mounting rings and enclosures. The CS95-8 enclosure is furnished with four combination conduit knockouts 1/2" – 3/4" (13-19mm), four J-clips and two flexible perforated mounting straps. One-piece CRS construction, undercoated, patch-jute lined, and finished in epoxy. The 81-8R tile bridge features a round cut-out designed to work with the CS95-8 enclosure. The unit is constructed of 24-gauge CRS with an electrogalvanized rust-resistant finish.
