Atlas Sound 8 10 oz Coaxial Loudspeaker w

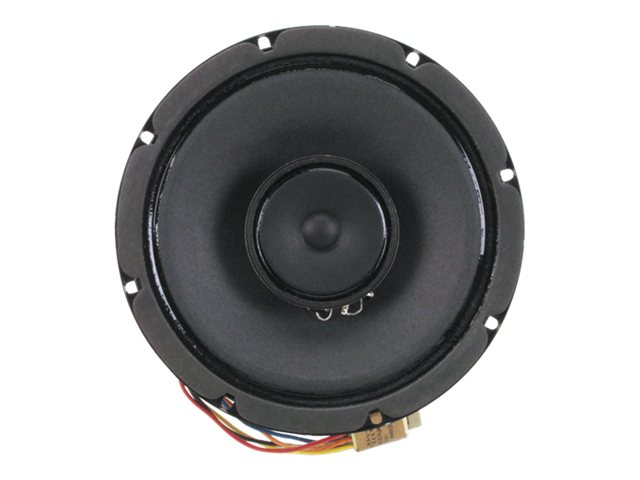

The GD87W is a high performance coaxial loudspeaker package with performance specifications identical to the legendary Atlas Sound Model C803A. This similarity in sonic quality insures that existing C803A systems may be expanded with the GD87W without any noticeable sonic or performance differences.
This coaxial loudspeaker features a 45 Hz - 19 kHz (nominal) frequency response and a broad, uniform dispersion pattern of 105° (2 kHz octave band). The GD87 combines a full-size 8" (203 mm) dia., low-frequency reproducer and a 3" (76 mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10oz. (260 g) ceramic magnet; the tweeter has a 2.35 oz. (67 g) ceramic magnet. The unit has an average sensitivity of 96 dB (1 W/1 M).
The loudspeaker is matched with a high efficiency 8 watt 70.7 V transformer with a maximum insertion loss of 0.6 dB. This premium transformer is constructed of audio grade laminations and has a full range frequency response of +1 dB from 50 Hz to 15 kHz. The primary taps are 1, 2, 4, and 8 watts.
The GD87W includes a factory installed 62-8 style CRS baffle with concealed loudspeaker mounting studs and includes screw mount hardware. The baffle finish is white powder coat epoxy.
