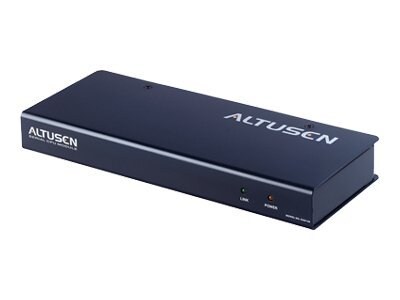

Aten Serial CPU Module for KM0216 KM0432 KM0832

1.80 lbs

Features:

Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances.*
Hot pluggable - add or remove computers without having to power down the switch.
Lifetime firmware upgrades.
Superior video quality - supports resolution of up to1024 x 768 within the distance of up to 500ft.(150m); DDC2B.
Built in ASIC for greater reliability and compatibility.
CPU module designed with automatic conversion to allow for flexible interface combinations(PS/2,USB,Sun and Serial) to control all computer types.

*Up to 500 ft.(150 m) between the Console/CPU modules and the Matrix KVM Switch for KM0832/ KM0432/ KM0216

Unit, power adapter, rackmount kit, firmware upgrade cable, (4) foot pads, documentation

3.2"h x 16.7"w x 7.9"d

(1) DB-9 RS-232 (F) serial port
(1) HDDB-15 (F) VGA monitor port
(1) mini-DIN (F) PS/2 keyboard port
(1) RJ-45 KVM Switch port
(1) DC voltage input from adapter

Power required: 5VDC, 300mA

This product is subject to our return policy. Please see our complete return policy for details.

10 lbs

43211601

3 Years

3 Years
