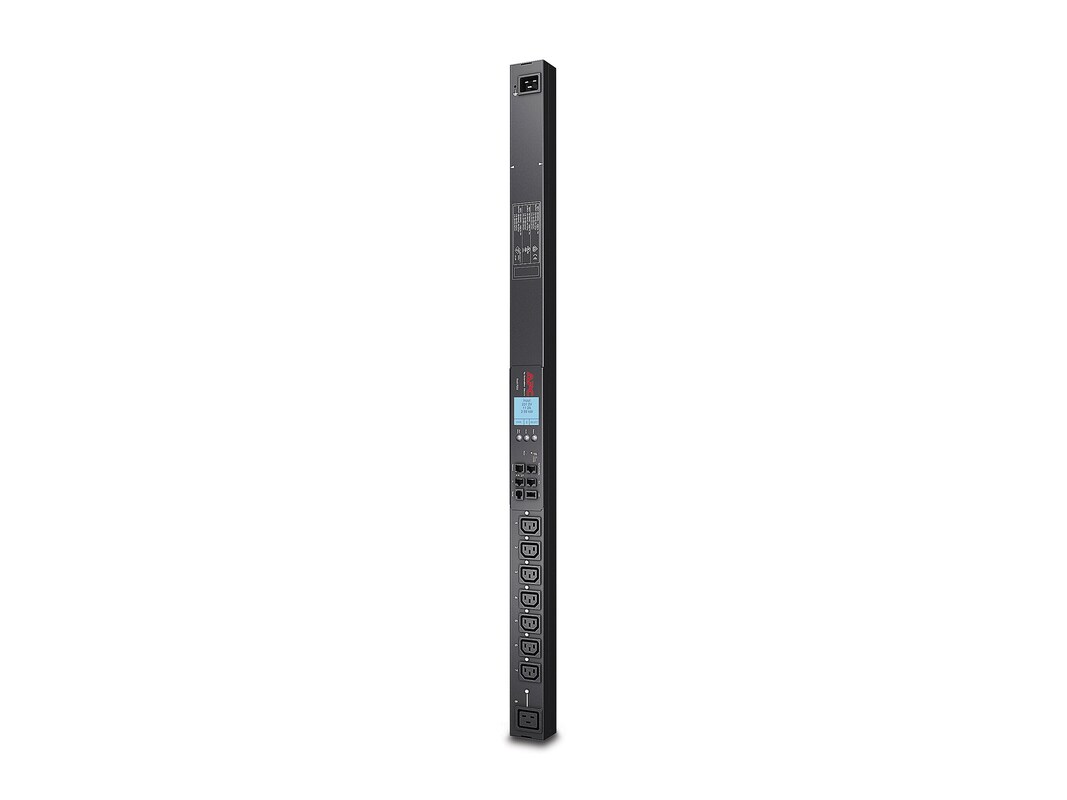

The American Power Conversion (APC) Switched Rack Power Distribution Unit (PDU) is a standalone, network-manageable power distribution device. The Rack PDU provides real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads. The Rack PDU provides for full control over outlets through remote commands and user interface settings. You can manage a Rack PDU through its Web interface, its command line interface (CLI), InfraStruxure Central, or Simple Network Management Protocol (SNMP).
-
7.10 lbs
-
Features
Peak load, and power and energy monitoring for all connected loads.
Voltage, current, and power monitoring for phases.
Current monitoring for outlet banks.
Configurable alarm thresholds that provide network and visual alarms to help avoid overloaded circuits.
Four levels of user access accounts: Administrator, Device User, Read-Only User, and Outlet User.
Independent outlet control.
Configurable power delays.
Up to twenty-four independent outlet user accounts.
Event and data logging.
E-mail notifications for Rack PDU and system events.
SNMP traps, Syslog messages, and e-mail notifications based on the severity level or category of
the Rack PDU and system events.
Security protocols for authentication and encryption.
Conformance
Regulatory Approvals: cUL Listed, EN 55022 Class A, EN 55024,EN 61000-3-2, EN 61000-3-3,FCC Part 15 Class A, ICES-003, PSE, UL Listed, VCCI Class A, VDE
Environmental Compliance: RoHS, REACH: Contains No SVHCs,Contains Lithium Battery -
# Ports: 8Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power IEC 60309 16A
-
PDU, power cord, sample locking IEC power cord, rack mounting brackets, serial cable, documentation
-
Attributes: MeteredAttributes: SwitchedColor: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 7.05lbs
-
38.9"h x 2.2"w x 1.8"d
-
Output: (7) IEC-320 C13, (1) IEC-320 C19
Input: IEC 309 16A 2P+E
Cord Length: 9.84 feet (3 meters)
Number of Power Cords: (1) -
Voltage Provided: 230VVoltage Provided: AC 200/208/230V
-
Output
Nominal Output Voltage: 200V, 208V, 230V
Maximum Total Current Draw per Phase: 16A
Overload Protection: No
Input
Nominal Input Voltage: 200V, 208V, 230V
Input Frequency: 50/60Hz
Regulatory Derated Input Current (North America): 16A
Acceptable Input Voltage: 220-240VAC
Maximum Line Current per phase: 16A
Maximum Input Current per phase: 16A -
Remote Management Protocol: HTTPRemote Management Protocol: SNMPRemote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
12.1 lbs
-
Compliant Standards: CULCompliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN55022Compliant Standards: EN55024Compliant Standards: FCC Part 15 ACompliant Standards: ICES-003Compliant Standards: PSE MarkCompliant Standards: REACHCompliant Standards: RoHSCompliant Standards: ULCompliant Standards: VCCI Class A ITECompliant Standards: VDE
-
