Partial Quantity Available
- Call for next available delivery

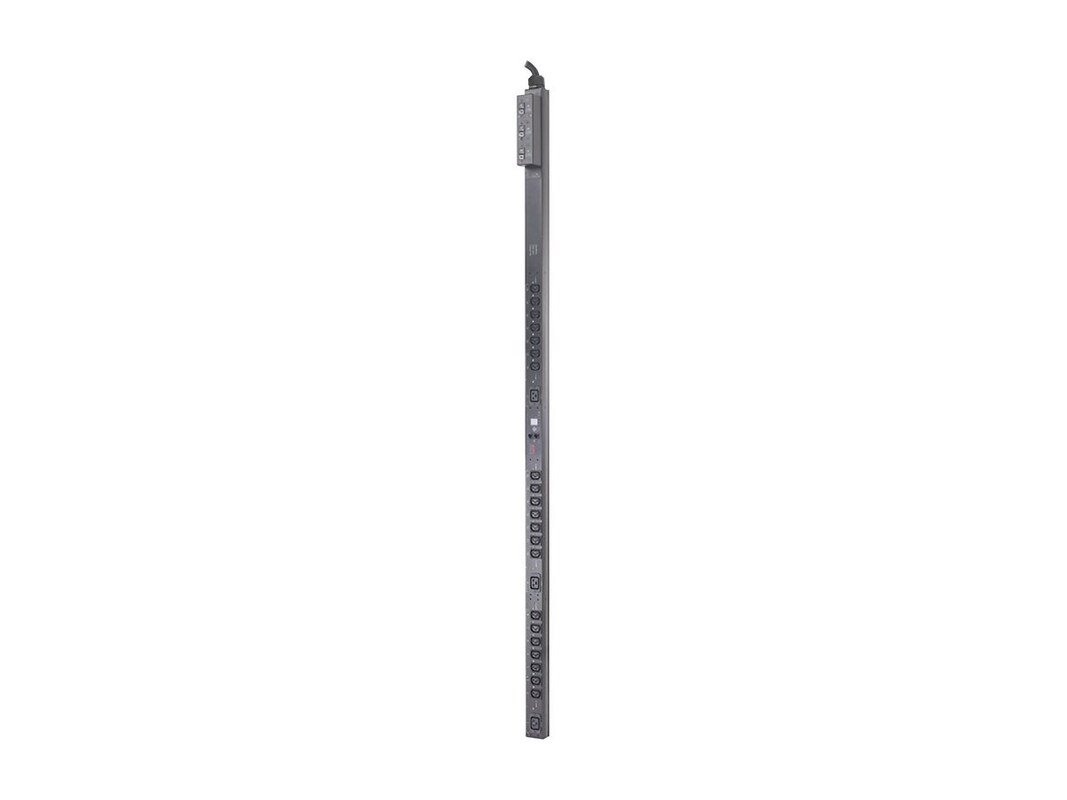

Switched Rack Power Distribution Units (PDUs) provide advanced load monitoring combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management.
# Ports: 24Connector: Power CS 8365, Power IEC 320 EN 60320 C13 (F), Power IEC 320 EN 60320 C19 (F)
PDU, cord retention bracket(s), rack mounting brackets, RS-232 configuration cable, toolless mounting kit, documentation CD, installation guide
Attributes: SwitchedForm Factor: 0U Rackmount
Local and web-based monitoring:
Status available to customers both in the data center and remotely.
Resettable circuit breakers:
Enables a quick recovery from overload events.
Toolless Rack Mounting Capabilities:
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Vertical Mounting Capabilities:
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
70"H x 2.2"W x 3.5"D
Power Provided: 12.5 kW, 208 V
Nominal Output Voltage: 208V
Overload Protection: Yes
Maximum Total Current Draw: 35
(21) IEC 320 C13 (Battery Backup)
(3) IEC 320 C19 (Battery Backup)
Nominal Input Voltage: 208V 3PH
Input frequency: 50/60 Hz
Input Connections: CS8365
Cord Length: 3ft ( 0.91meters )
Number of Power Cords: 1
Load Capacity: 12500VA
Maximum Input Current: 35A
Maximum Line Current: 35A
Operating Environment: 23 - 113 F ( -5 - 45 C )
Operating Relative Humidity 5 - 95 %
Operating Elevation: 0-10000ft ( 0-3000meters )
Storage Temperature: -25 - 65 C
Storage Relative Humidity: 5 - 95 %
Storage Elevation: 0-50000ft ( 0-15000meters )
This product is subject to our return policy. Please see our complete return policy for details.
Compliant Standards: CSA, CUL, FCC Part 15 A, ICES-003, REACH, RoHS, UL, UL 60950
2 years repair or replace
