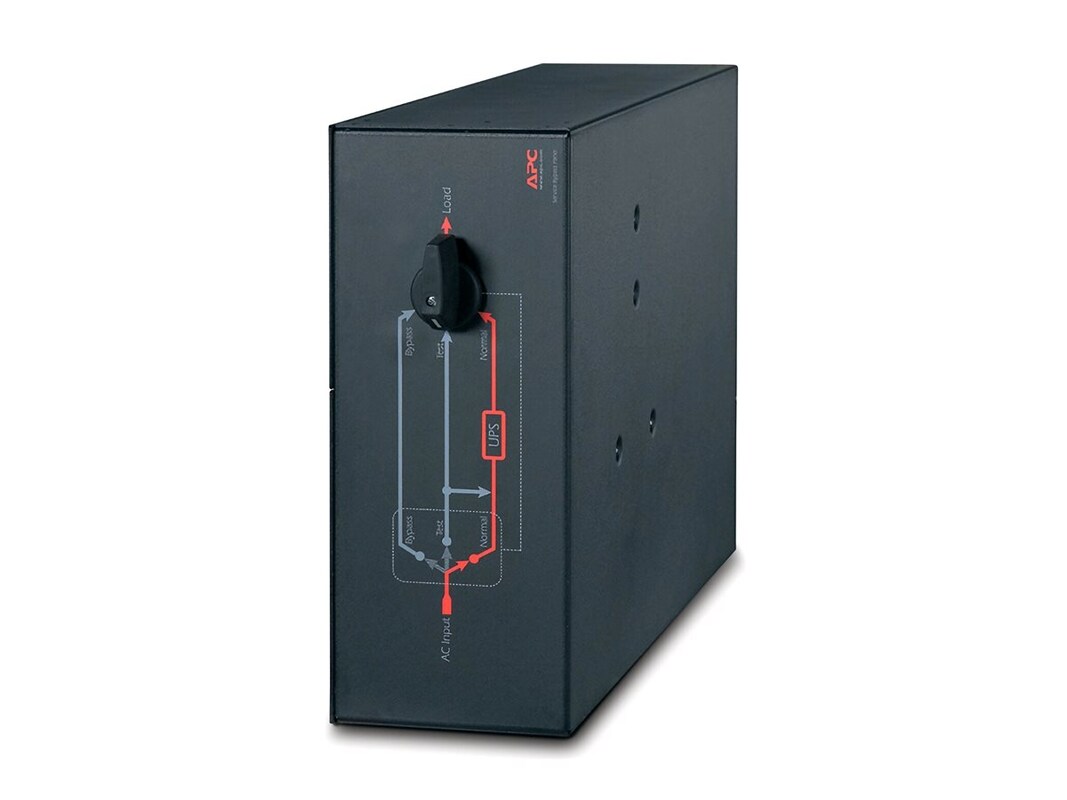

APC Service Bypass Panel for 200-240V, Hardwire Input Output

47.00 lbs

Unit, rack mounting brackets, documentation

7"h x 17"w x 26"d

Output Connections

(1) Hard Wire 3-wire (2PH + G)
(1) Hard Wire 3-wire (H N + G)
(1) Hard Wire 4-wire (2PH + N +G)

Input Connections

Hard Wire 3-wire (2PH + G)
Hard Wire 3 wire (1PH+N+G)
Hard Wire 4-wire (2PH+N+G)
Hard Wire 5-wire (3PH + N + G)
Number of Power Cords: (1)

Output

Nominal Output Voltage: 120, 200, 208, 230VAC
Maximum Total Current Draw per Phase: 100A
Overload Protection: Yes

Input

Nominal Input Voltage: 200, 208, 230, 480VAC 3-PH
Input Frequency: 50/60Hz
Acceptable Input Voltage: 200-240VAC
Maximum Line Current per phase: 100A
Maximum Input Current per phase: 100A
Load Capacity: 20kVA
Load Power Factor Range: 0 to 1

This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.

69 lbs

39121000
