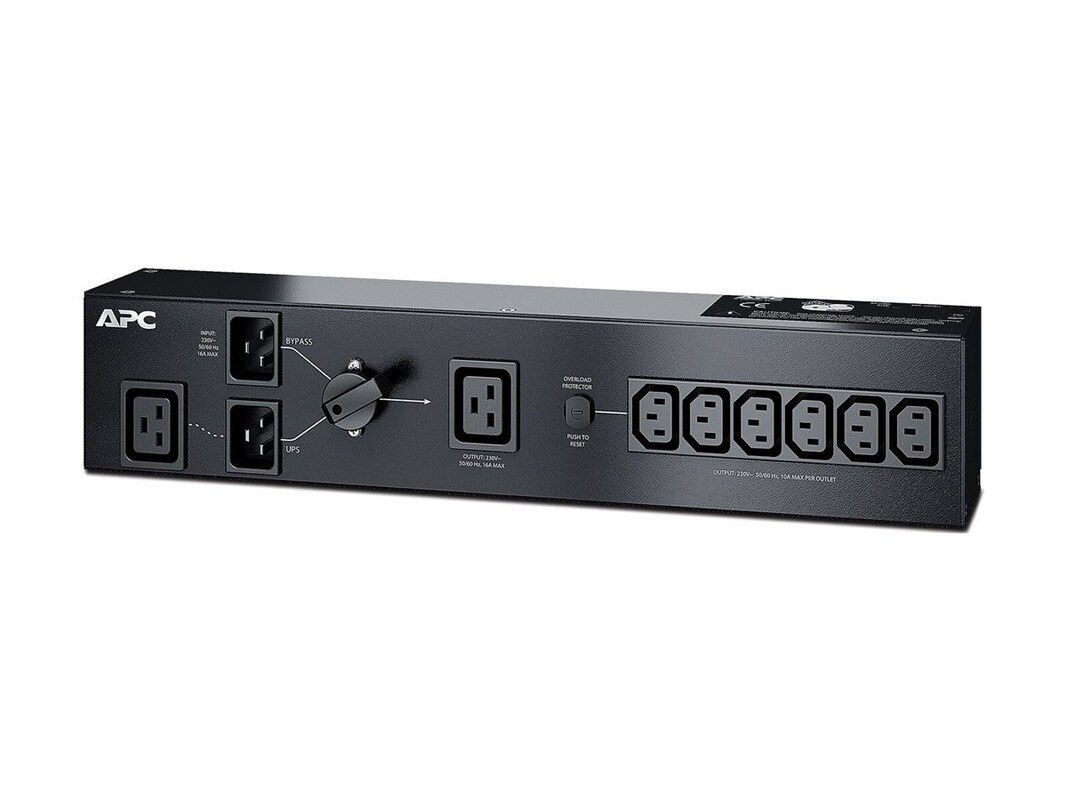

The Service Bypass Panels provide a wrap around system to allow easy maintenance of a UPS by isolating it from the critical load. The panels can be rack (2U) or wall mounted and are available with an integrated Power Distribution Unit (PDU).
-
4.60 lbs
-
Features
Bypass/UPS switch allows the switching of the supply to the load between the incoming supply and the UPS, so the UPS can be isolated for maintenance.
Equipment Outlets allowing the SBP to support multiple loads.
Output receptacle to feed UPS input.
Input receptacle to receive the output from the UPS.
Input receptacle to receive the external supply (utility).
Equipment outlet circuit breaker providing outlet protection.
Utility input terminal block access panel and hardwire knockout.
Equipment output terminal block access panel and hardwire knockout. -
Connector: Power IEC 60320 C20
-
unit, documentation
-
Color: BlackForm Factor: Rack-mountableProduct Type: Bypass switchWarranty Period: 2 yearsWeight Taxonomy: 4.63lbs
-
3.5"h x 17"w x 3"d
-
External supply input connection: IEC-320 C20
UPS Input / Output connections: IEC-320 C20 /C19
Load connections: IEC-320 C13 (6) + C19 (1)
Jumper cables: (2) IEC-320 C20 to C19 -
Power Capacity (VA): 3000VAVoltage Provided: AC 230V
-
Output
Nominal Input/Output voltage: 230V
Maximum total current: 16A
Switch characteristics: Break Before Make (BBM) / 4ms max. -
This product is subject to our return policy. Please see our complete return policy for details.
-
1 lbs
-
Compliant Standards: CECompliant Standards: REACHCompliant Standards: RoHSCompliant Standards: VDE
-
