Ordering Information
$451.83
Quick View
Getting Details

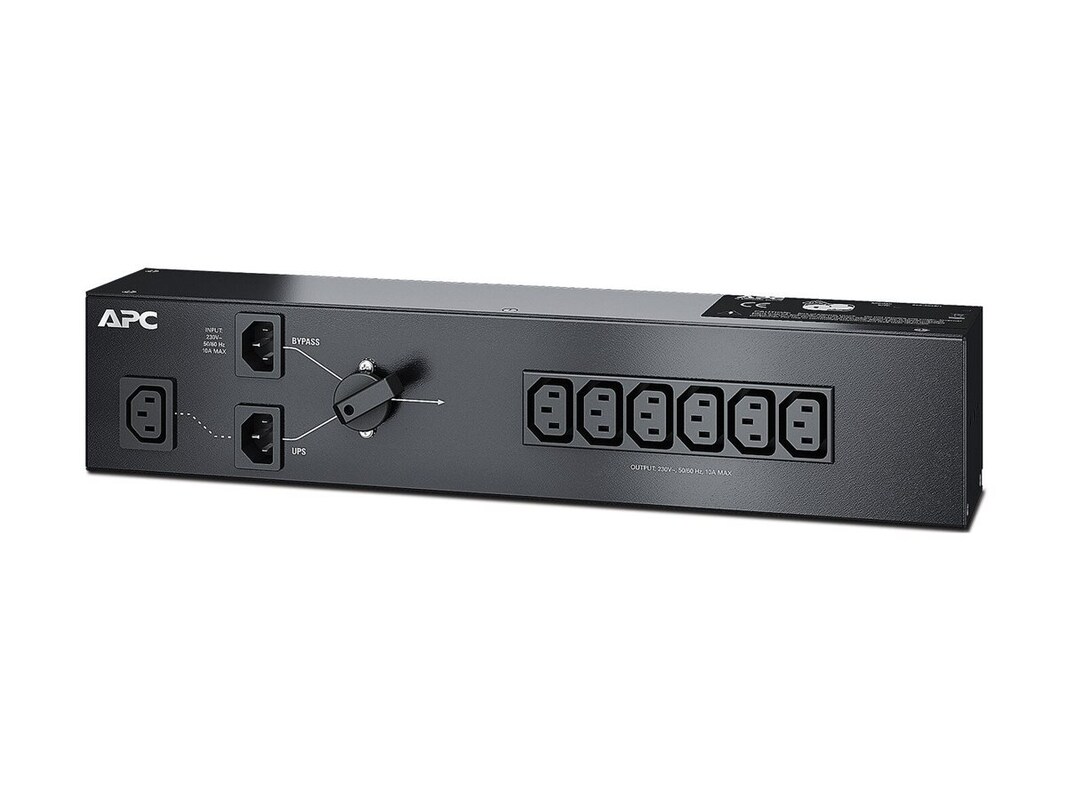

The APC service bypass panel (SBP), provides utility power to connected equipment during UPS maintenance.
-
4.40 lbs
-
Conformance
Regulatory Approvals: VDE
Environmental Compliance: RoHS 7b Exemption, REACH, Contains No SVHCs -
# Ports: 6Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C14 (M)Connector: Power IEC 60320 C14
-
Unit, rack mounting brackets, documentation
-
Color: BlackColor Family: BlackForm Factor: 2U RackmountForm Factor: Rack-mountableManufacturer Product Line: APCModel: Service Bypass PanelWeight Taxonomy: 4.41lbs
-
3.5"h x 17"w x 3"d
-
Output Connections: (6) IEC 320 C13, (1) IEC Jumper
Always on Outlets: (6)
Cord Length: 4ft (1.22 meters)
Input Connection: IEC-320 C14
Cord Length: 6.5 feet (1.98 meters)
Number of Power Cords: (1) -
Power Capacity (VA): 1500VAVoltage Provided: 230VVoltage Provided: AC 230V
-
Output
Nominal Output Voltage: 230V
Maximum Total Current Draw per Phase: 10A
Overload Protection: Yes
Input
Nominal Input Voltage: 230V
Input Frequency: 50/60Hz
Acceptable Input Voltage: 220-240VAC
Maximum Line Current per phase: 10A
Maximum Input Current per phase: 10A
Load Capacity: 1500VA
Load Power Factor Range: 0 to 1 -
This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.
-
7.7 lbs
-
Compliant Standards: REACHCompliant Standards: RoHS Exemption 7bCompliant Standards: VDE
-
39121017
-
Warranty Period: 2 years
