Temporarily Out-of-Stock
- Call for next available delivery

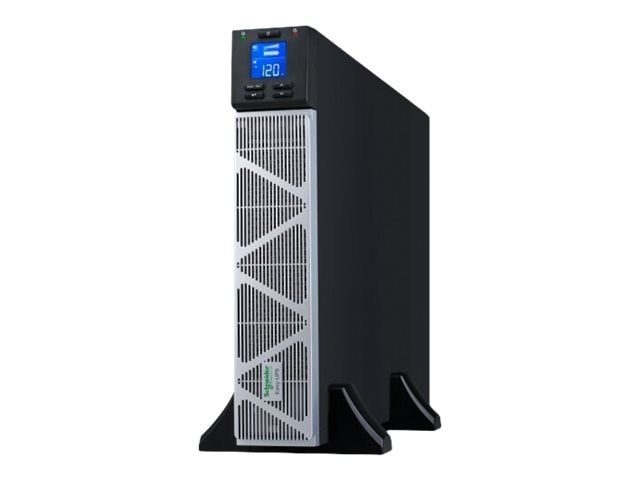

Double-conversion On-line UPS with Lithium-Ion battery to scalable runtime. Ideal UPS for essential power protection needs even in the most unstable power conditions.
-
48.70 lbs
-
# Ports: 6Communication Interface: USBConnector: Power NEMA 5-20RConnector: Power NEMA L5-30PConnector: Power NEMA L5-30R
-
UPS, RS-232 cable, USB cable, Rack Mounting brackets, Rack Mounting support rails, Stabilization feet, documentation
-
Color: BlackForm Factor: 2U Rackmount
-
3.4"h x 17.2"w x 24.9"d
-
(1) NEMA L5-30P
(6) NEMA 5-20R
(1) NEMA L5-30R
-
Battery Run Time (max): 84minPower Capacity (VA): 3000VAPower Provided: 2700WSurge Protection Rating: 220JoulesSurge Suppression: YesVoltage Provided: 120V
-
Input:
Efficiency at full load:
80...150 V full load
55...150 V 60 % load
Input Frequency: 40 - 70 Hz auto-sensing
Output:
Maximum configurable power in: 3000 VA
Max Configurable Power (Watts): 2700 W
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz sync to mains
Topology: Double Conversion Online
Wave type: Sine wave
Efficiency at full load: 90 % full load
Bypass type: Internal Bypass (Automatic and Manual)
Crest factor: 3:1
-
This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.
-
64.17 lbs
-
Compliant Standards: IP20Compliant Standards: NOMCompliant Standards: TUV
-
39121011
-
Warranty Period: 3 years
