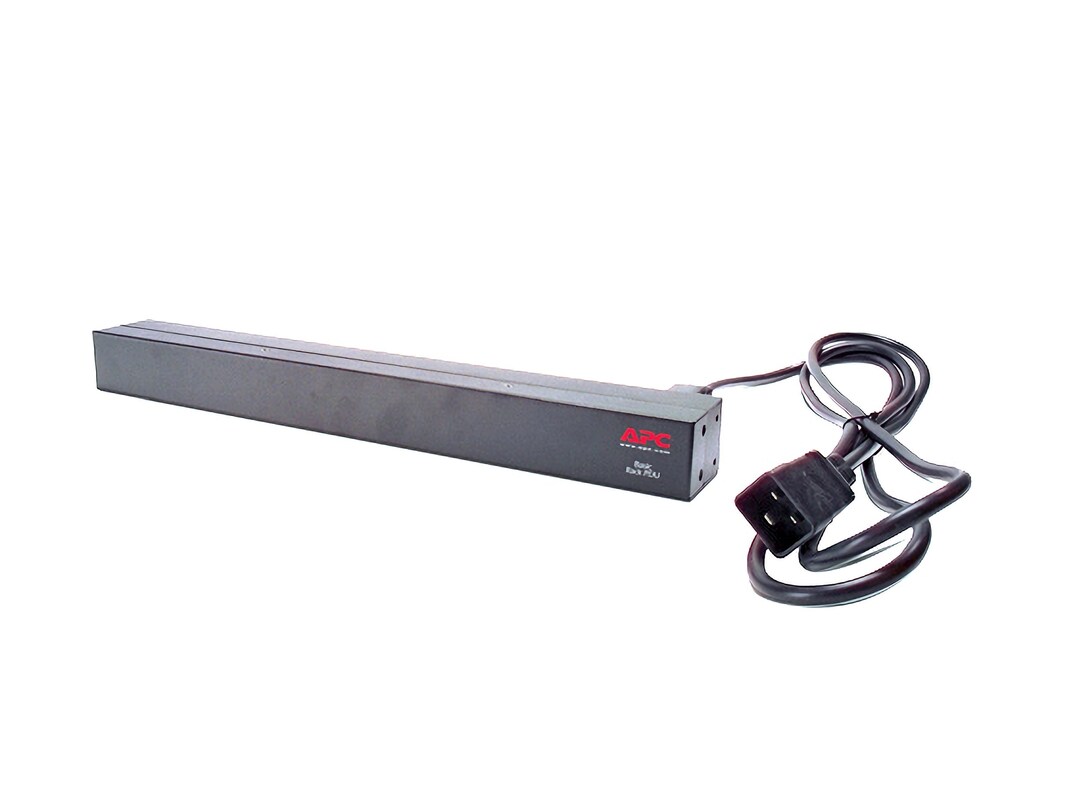

Basic Rack Power Distribution Units (PDUs) allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments.
This Rackmountable PDU features (12) IEC 320 C13 outlets and an IEC-320 C20 input conector with an 8.2 foot cord. The PDU provides 208V or 230V of power. It comes with an installation guide and brackets for rack mounting.
This Rackmountable PDU features (12) IEC 320 C13 outlets and an IEC-320 C20 input conector with an 8.2 foot cord. The PDU provides 208V or 230V of power. It comes with an installation guide and brackets for rack mounting.
-
4.50 lbs
-
Connector: Power IEC 60320 C20
-
PDU, rack hardware and documentation
-
Color: BlackColor Family: BlackForm Factor: Rack-mountableManufacturer Product Line: APC Basic Rack-Mount PDUWarranty Period: 2 yearsWeight Taxonomy: 4.41lbs
-
1.75"h x 17.6"w x 2.25"d
-
(12) IEC 320 C13 outlets
(1) IEC-320 C20 input plug with 8.2 feet of cord
-
Voltage Provided: 208VVoltage Provided: 230VVoltage Provided: AC 208/230V
-
Output Voltage(s) (main only): 208, 230 V
Maximum Total Current Draw per Phase: 16 A
Nominal input voltage: 208, 230
Input frequency (Hz): 50/60 Hz
Maximum Input Current per phase: 16.0 A
Load Capacity: 3680
-
This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.
-
8 lbs
-
Compliant Standards: CULCompliant Standards: ULCompliant Standards: UL 1363
-
39121017
| Description | Availability | Unit Price | ||
|---|---|---|---|---|
| View All Warranties | ||||
APC Smart-UPS SRT 5000VA 4250W 208V RM Online Extended Runtime (4) Outlets Internal Bypass (SRT5KRMXLT)
Recommended
- 18184928
- SRT5KRMXLT
-
In Stock
- Ships in 1-2 Business Days
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice/data networks, medical labs and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks.
When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5kVA).
The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass and input power factor correction.
When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5kVA).
The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass and input power factor correction.
