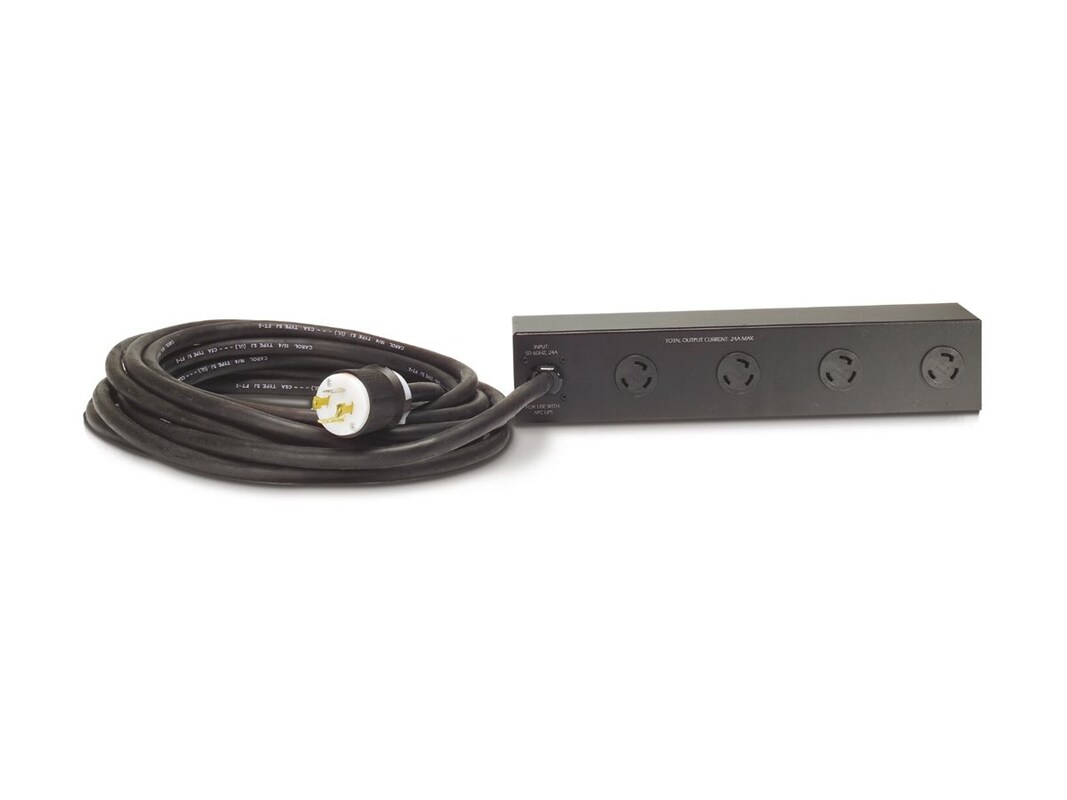

This APC Basic Rack Power Distribution Unit (PDU) is intended for use with 208V power. It features a NEMA L14-30 male plug for input power and (4) NEMA L6-30 female outlets. The PDU is rack mountable and ships with mounting brackets and an installation guide.
-
14.00 lbs
-
# Ports: 4Connector: Power NEMA L14-30Connector: Power NEMA L14-30 (M)Connector: Power NEMA L6-30 (F)
-
PDU, mounting brackets, documentation
-
Color: BlackColor Family: BlackForm Factor: Rack-mountableManufacturer Product Line: APC Basic Rack PDUWarranty Period: 2 yearsWeight Taxonomy: 14.11lbs
-
3.5"h x 17.2"w x 3.5"d
-
(4) NEMA L6-30R outlets
(1) NEMA L14-30P input cord, 28ft -
Voltage Provided: 208V
-
Nominal output voltage: 208 VA
Maximum Total Current Draw per Phase: 24A
Nominal input voltage: 208 V
Input frequency: 50/60 Hz
Load Capacity: 4,992 -
This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.
-
16 lbs
-
Compliant Standards: CULCompliant Standards: UL
-
39121017
