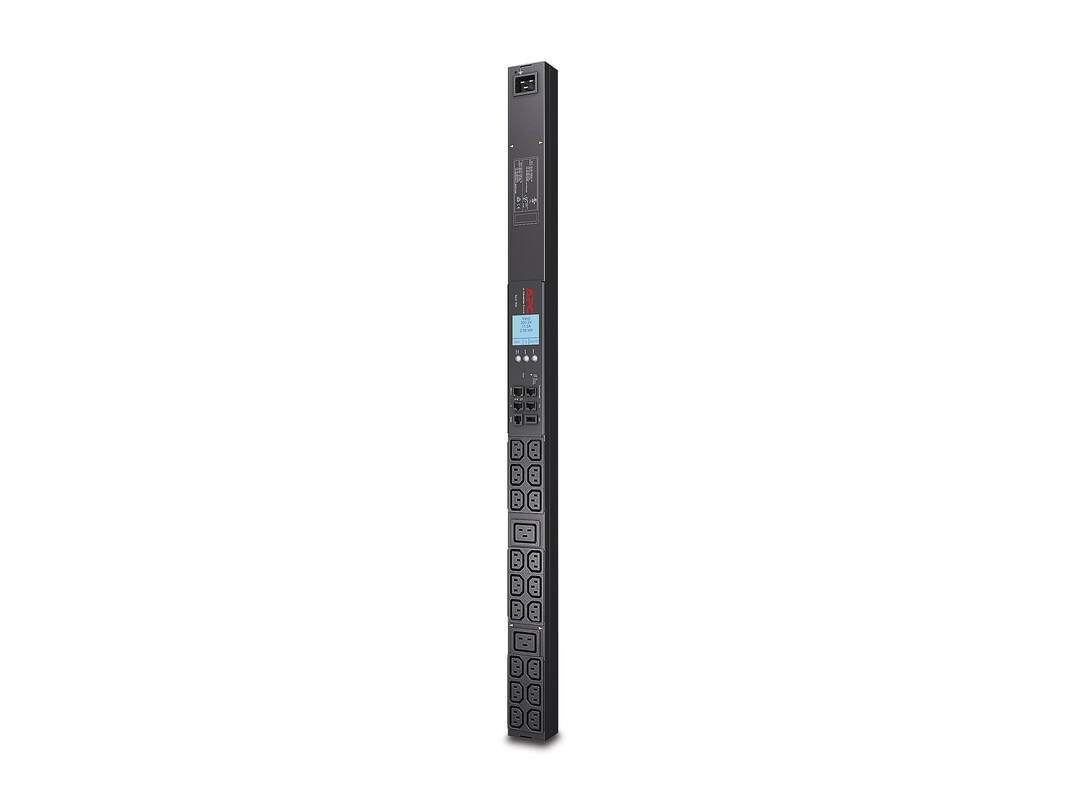

This APC Metered Rack Power Distribution Unit (PDU) provides active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. A metered rack PDU provides power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Real power monitoring, a temperature/humidity sensor port, locking IEC receptacles and ultra low profile circuit breakers are included. You can access and configure this Metered Rack PDU through secure Web, SNMP or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity and Energy Efficiency.
-
6.44 lbs
-
Conformance
Regulatory Approvals: CSA C22.2 No. 60950, IEC 60950, METI Denan, UL 60950-1, VDE
Environmental Compliance: RoHS, REACH: Contains No SVHCs, Contains Lithium Battery -
# Ports: 20Connector: Power IEC 309 (M)Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power IEC 60309 16A
-
PDU, power cord, RM brackets, serial cable, sample IEC cord, documentation
-
Attributes: MeteredColor: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 6.39lbs
-
35.5"h x 2.2"w x 1.7"d
-
Output Connections: (18) IEC-320 C13, (2) IEC-320 C19
Input Connection: IEC-309 16A 2P+E
Cord Length: 9.84 feet (3 meters)
Number of Power Cords: (1) -
Voltage Provided: 230VVoltage Provided: AC 230V
-
Output
Nominal Output Voltage: 230V
Maximum Total Current Draw per Phase: 16A
Overload Protection: No
Input
Nominal Input Voltage: 200V, 208V, 230V
Input Frequency: 50/60Hz
Acceptable Input Voltage: 100-240VAC
Maximum Line Current per phase: 16A
Maximum Input Current per phase: 16A -
Remote Management Protocol: HTTPRemote Management Protocol: SNMPRemote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
10.83 lbs
-
Compliant Standards: CSA 22.2 No. 60950Compliant Standards: IEC 60950Compliant Standards: REACHCompliant Standards: RoHSCompliant Standards: UL 60950-1Compliant Standards: VDE
-
