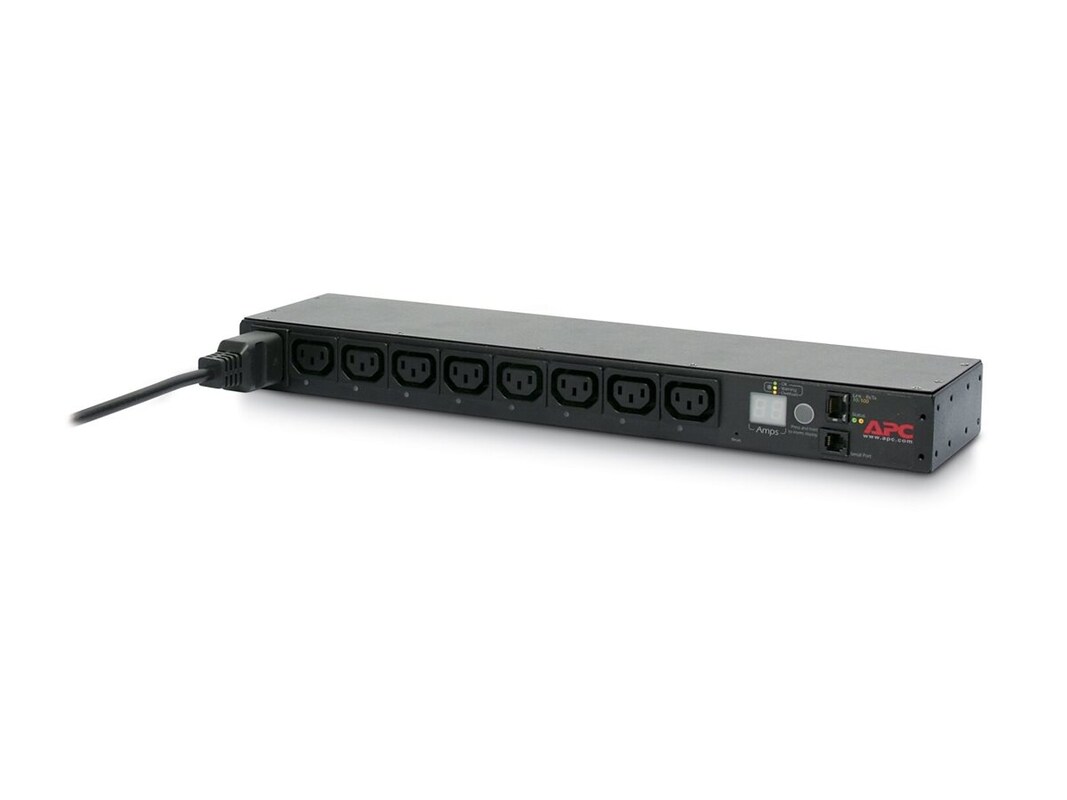

The American Power Conversion (APC) Switched Rack PDU is a stand-alone, network-manageable device that allows programmable control of eight power outlets. It has built-in network connectivity and monitors the aggregate current draw of the PDU both remotely and locally through the digital display.
The PDU has an IEC-320-C20 inlet on the front of the unit to connect the power cord, and it has eight IEC-320-C13 outlets which allow independent control of the connected equipment. The PDU provides 24 Outlet User accounts.
The PDU has an IEC-320-C20 inlet on the front of the unit to connect the power cord, and it has eight IEC-320-C13 outlets which allow independent control of the connected equipment. The PDU provides 24 Outlet User accounts.
-
5.00 lbs
-
Conformance
Approvals : cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI
Sustainable Offer Status
RoHS: Compliant
REACH: Contains No SVHCs
Battery Directive: Compliant -
# Ports: 8Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C20 (M)Connector: Power IEC 60320 C20
-
Unit, power cord, rack mounting brackets, documentation
-
Attributes: MeteredAttributes: SwitchedColor Family: BlackForm Factor: 1U RackmountForm Factor: Rack-mountableManufacturer Product Line: APC Switched Rack PDUWarranty Period: 2 yearsWeight Taxonomy: 4.98lbs
-
1.7"h x 17.5"w x 4.25"d
-
Input connector: IEC-320-C20 inlet, 8.2ft. cord (2.5m)
Output connectors: (8) IEC-320-C13 outlets -
Power Capacity (VA): 3680VAVoltage Provided: 208VVoltage Provided: 230V
-
Nominal input voltage: 208-230VAC
Regulatory Derated Input Current (North America): 16A
Acceptable input voltage: 200-240VAC
Maximum Input Current per phase: 20A
Input frequency: 50/60Hz
Load capacity: 3680VA -
Remote Management Protocol: HTTPRemote Management Protocol: SNMPRemote Management Protocol: Telnet
-
This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.
-
7.85 lbs
-
Compliant Standards: ANSI/UL 60950-1Compliant Standards: AS/NZSCompliant Standards: CECompliant Standards: CSACompliant Standards: CULCompliant Standards: EN 55022 Class ACompliant Standards: EN 55024Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN55022Compliant Standards: EN55024Compliant Standards: FCC Part 15 ACompliant Standards: GOSTCompliant Standards: ICES-003Compliant Standards: IRAMCompliant Standards: MICCompliant Standards: REACHCompliant Standards: RoHSCompliant Standards: ULCompliant Standards: VCCICompliant Standards: VDE
-
39121017
| Description | Availability | Unit Price | ||
|---|---|---|---|---|
| View All Warranties | ||||
APC Smart-UPS SRT 5000VA 4250W 208V RM Online Extended Runtime (4) Outlets Internal Bypass (SRT5KRMXLT)
Recommended
- 18184928
- SRT5KRMXLT
-
In Stock
- Ships in 24-48 Hours
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice/data networks, medical labs and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks.
When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5kVA).
The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass and input power factor correction.
When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5kVA).
The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass and input power factor correction.
