Temporarily Out-of-Stock
- Call for next available delivery

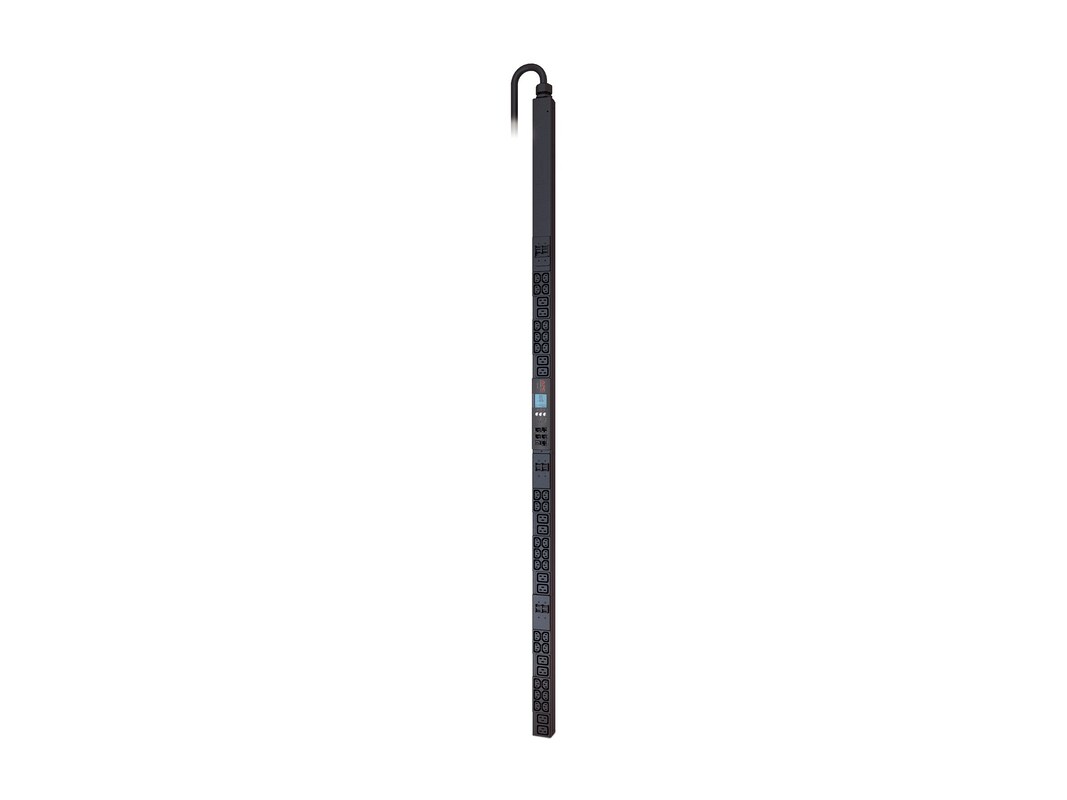

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity and Energy Efficiency.
-
19.18 lbs
-
Conformance: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, VCCI Class A, VDE, RoHS, REACH: Contains No SVHCs
-
# Ports: 42Connector: Power IEC 309 EN 60309 32AConnector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power IEC 60309 32A
-
PDU, rack mounting brackets, safety guide, serial configuration cable, documentation
-
Color: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 19.22lbs
-
72"h x 2.2"w x 2"d
-
Output Connections: (30) IEC 320 C13, (12) IEC 320 C19
Input Connection: IEC 309 32A 3P+N+E
Cord Length: 6 feet (1.83 meters) -
Voltage Provided: 230VVoltage Provided: 230V
-
Output
Nominal Output Voltage: 230V
Maximum Total Current Draw per Phase: 32A
Overload Protection: Yes
Input
Nominal Input Voltage: 400V 3PH
Input Frequency: 50/60Hz
Maximum Line Current per phase: 32A
Maximum Input Current per phase: 32A
Load Capacity: 22kVA -
Remote Management Protocol: HTTPRemote Management Protocol: SNMPRemote Management Protocol: SSHRemote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
25.4 lbs
-
Compliant Standards: EN 55022 Class ACompliant Standards: EN 55024Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN55022 Class ACompliant Standards: EN55024Compliant Standards: FCC Part 15 ACompliant Standards: ICES-003Compliant Standards: REACHCompliant Standards: RoHSCompliant Standards: VCCI Class A ITECompliant Standards: VDE
-
39121017
