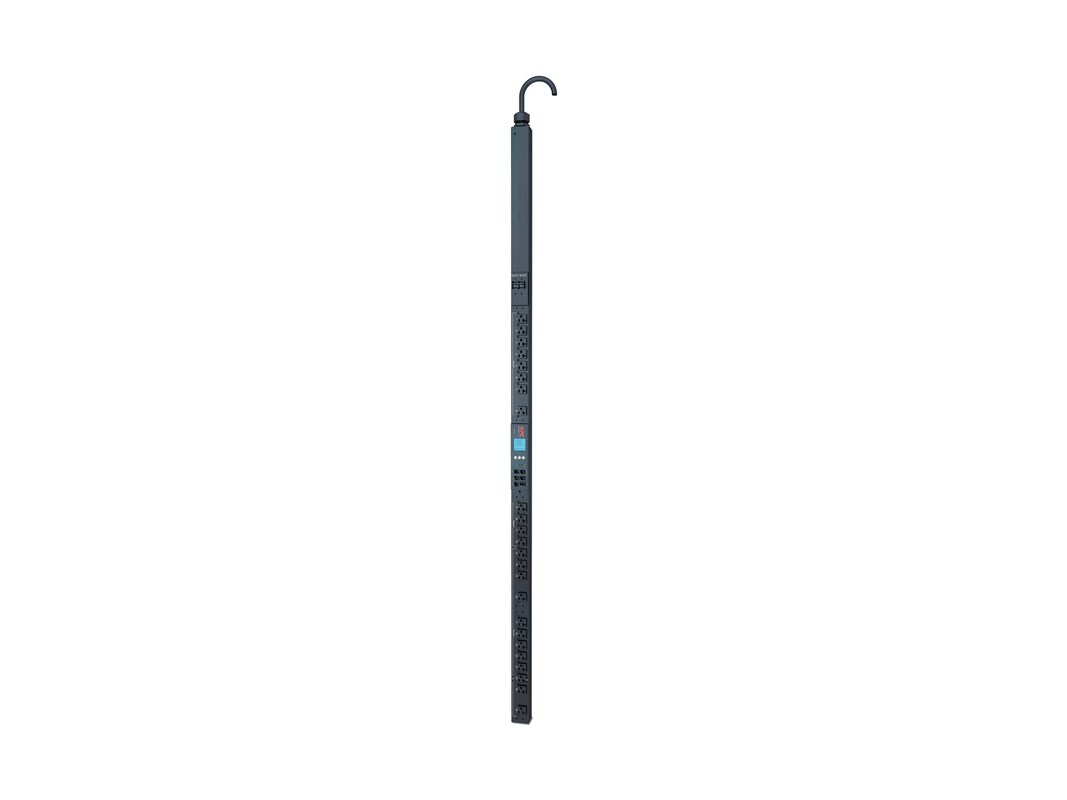

APC Metered-by-Outlet Switched Rack PDU 2G 100-120V 30A 0U L5-30P Input 10ft Cord (24) 5-20R Outlets
-
In Stock
- Ships in 48 Hours
Ordering Information
$2,327.13
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure and control Switched rack PDUs through secure Web, SNMP or Telnet Interfaces and is complimented by Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules.
-
17.71 lbs
-
Regulatory Approvals
cUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL 60950-1, UL Listed
RoHS Compliant
REACH: Contains No SVHCs
Battery Directive: Compliant
Battery Notes: Contains Lithium Coin Cell -
# Ports: 24Connector: Power NEMA 5-20 (F)Connector: Power NEMA L5-30Connector: Power NEMA L5-30 (M)
-
PDU, rack mounting brackets, serial configuration cable, documentation
-
Attributes: MeteredAttributes: SwitchedColor: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 17.75lbs
-
72"h x 2.2"w x 2"d
-
Output Connections: (24) NEMA 5-20R
Input Connection: NEMA L5-30P
Cord Length: 10 feet (3.05 meters)
Number of Power Cords: (1) -
Power Capacity (VA): 2880VAVoltage Provided: 100VVoltage Provided: 120VVoltage Provided: AC 100/120V
-
Output
Nominal Output Voltage: 100V, 120V
Overload Protection: Yes
Input
Nominal Input Voltage: 100V, 120V
Input Frequency: 50/60Hz
Regulatory Derated Input Current (North America): 24A
Acceptable Input Voltage: 100-120VAC
Maximum Input Current per phase: 30A
Load Capacity: 2880VA -
Remote Management Protocol: CLIRemote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: SNMPRemote Management Protocol: SSHRemote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
22.65 lbs
-
Compliant Standards: CULCompliant Standards: FCC Part 15 ACompliant Standards: ICES-003Compliant Standards: PSE MarkCompliant Standards: REACHCompliant Standards: RoHSCompliant Standards: UL 60950-1
-
