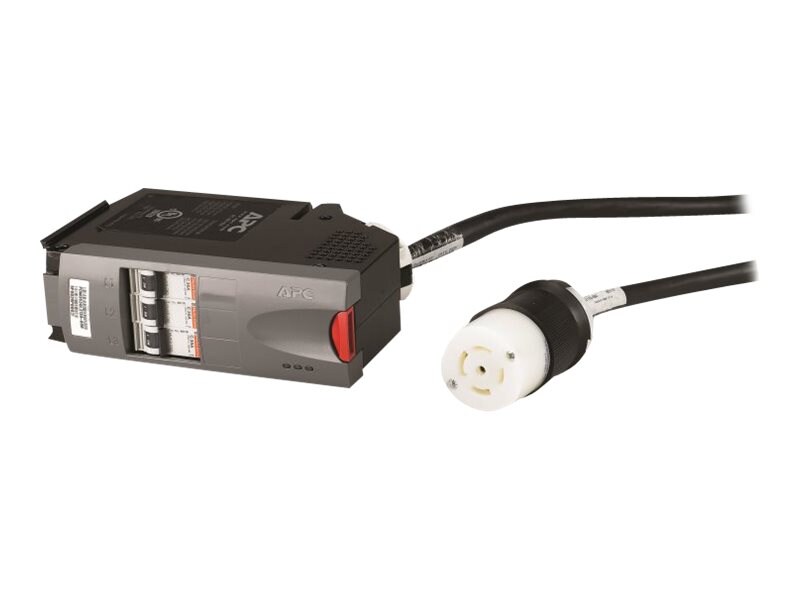

Factory assembled and tested Power Distribution Modules include circuit breaker, power cord, power connection, and circuit monitoring. Auto-detection of modules by the Modular PDU minimizes installation time.
-
12.60 lbs
-
Regulatory Approvals: UL Listed
Environmental Compliance: RoHS 7b Exemption -
# Ports: 1Connector: Power NEMA L21-30Connector: Power NEMA L21-30 (F)
-
Unit, documentation
-
Color: BlackForm Factor: Plug-in moduleManufacturer Product Line: APCModel: IT Power Distribution Module
-
860cm L
-
Output: (1) NEMA L21-30R
-
Voltage Provided: 208VVoltage Provided: AC 208V
-
Input: 208V 3-phase
Acceptable input voltage: 200-240VAC
Maximum line current per phase: 30A
Output: 208V 3-phase
Maximum total current draw per phase: 30A -
Remote Management Protocol: HTTPRemote Management Protocol: SNMP
-
This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.
-
13.8 lbs
-
Compliant Standards: RoHS Exemption 7bCompliant Standards: UL
-
39121017
-
Warranty Period: 1-year warranty
