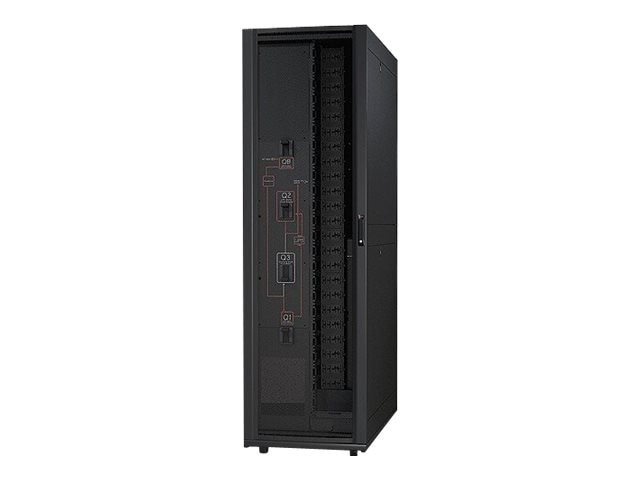

This 100kW Modular Power Distribution Unit with Isolation Transformer is a component of a fully scalable power distribution system that cost-effectively provides high levels of availability and enables the addition of circuits and cord-sets without requiring you to schedule outages or conduct dangerous hot work.
-
1800.00 lbs
-
Conformance
Regulatory Approvals: CSA C22.2 No. 60950-1-03, FCC Part 15 Class B, UL 60950-1
Standard Warranty: 1 year, repair or replace
Environmental Compliance: RoHS 7b Exemption -
# Ports: 1Connector: Hardwire 4-wire (3PH + G)Connector: Power Hard Wire 4-wire (3PH + G)
-
Unit, documentation
-
Color: BlackForm Factor: ExternalWarranty Period: 1-year warrantyWeight Taxonomy: 1803.36lbs
-
79"h x 23.6"w x 42.1"d
-
Output Connection: (1) Hard Wire 4-wire (3PH + N)
Input Connection: Hard Wire 4-wire (3PH + G) -
Power Capacity (VA): 100000VAPower Provided: 100kWVoltage Provided: 120VVoltage Provided: 208VVoltage Provided: AC 120/208V
-
Output
Nominal Output Voltage: 120V, 208V 3PH
Maximum Total Current Draw per Phase: 278A
Input
Nominal Input Voltage: 480V 3PH
Input Frequency: 60Hz
Maximum Line Current per phase: 159A
Maximum Input Current per phase: 146A
Load Capacity: 100kVA
Overload Capacity (at nominal rated input V): 125% overload for 10 minutes
Maximum Crest Factor: 1.4 -
This product is subject to our return policy. Please see our complete return policy for details.
-
1900 lbs
-
Compliant Standards: CSA C22.2 No. 60950-1-03Compliant Standards: FCC Part 15 BCompliant Standards: RoHS Exemption 7bCompliant Standards: UL 60950-1
-
