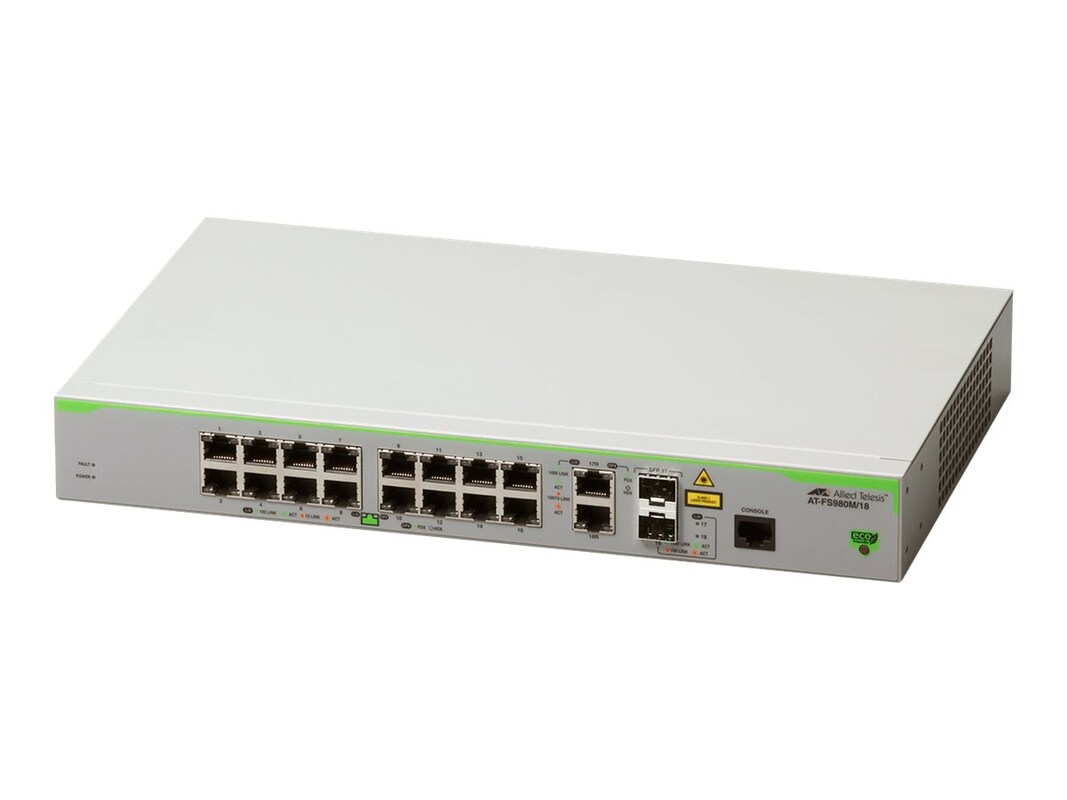

The FS980M/18 features 16 x 10/100TX ports and 2 combo (10/100/1000T or 100/1000X SFP) uplink ports.
The CentreCOM FS980M Series are cost-effective Fast Etherent switches for deployment at the network edge. As part of an Allied Telesis Management Framework (AMF) network, the FS980M switches utilize automated management and zero-touch recovery to lower running costs.
The CentreCOM FS980M Series are cost-effective Fast Etherent switches for deployment at the network edge. As part of an Allied Telesis Management Framework (AMF) network, the FS980M switches utilize automated management and zero-touch recovery to lower running costs.
-
4.70 lbs
-
# Ports: 16# Ports: 4
-
Switch, power supply, documentation
-
Chassis Form Factor: 1U RackmountColor: WhiteForm Factor: Rack-mountableManufacturer Product Line: Allied Telesis CentreCOMModel: FS980M/18Weight Taxonomy: 4.74lbs
-
Switching fabric bandwidth: 7.2Gbps
Forwarding performance: 5.36Mpps
Stacking bandwidth: 4Gbps
QoS hardware queues per port: 8
MAC Address Table Size: 16K entries
Jumbo Frame Support: 10000 bytes -
RAM (installed): 128MBRAM (installed): 512MBRAM Technology: DDR2 SDRAMRAM Technology: Flash
-
512MB DDR2 SDRAM
128MB Flash memory -
Networking Type: Switch
-
1.7"h x 13.0"w x 8.0"d
-
I/O:
(16) 100Base-TX RJ-45
(2) 1000Base-T RJ-45
(2) 1000Base-X SFP
(1) RJ-45 console
(1) Power in -
# Power Supplies Installed: 1
-
Internal power supply
Voltage required: 120 to 230V AC, 50 to 60Hz
Operational power consumption: 12W -
Networking Protocol: Fast EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1AXNetworking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1vNetworking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.2Networking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3acNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3xNetworking Protocol: IEEE 802.3zNetworking Protocol: IGMPNetworking Protocol: IGMP v2Networking Protocol: IGMP v3Networking Protocol: RIPNetworking Protocol: X.509Remote Management Protocol: CLIRemote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: RMON 1Remote Management Protocol: RMON 2Remote Management Protocol: RMON 3Remote Management Protocol: RMON 9Remote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Remote Management Protocol: SNMP 6Remote Management Protocol: SSH 6Remote Management Protocol: TelnetRemote Management Protocol: TFTPRouting Protocol: CIDRRouting Protocol: IGMPRouting Protocol: IGMPv2Routing Protocol: IGMPv3Routing Protocol: MLDRouting Protocol: MLDv2Routing Protocol: RIP-1Routing Protocol: RIP-2Routing Protocol: Static IPv4 routing
-
Due to manufacturer restrictions, all sales on this item are final.
-
1 lbs
-
Compliant Standards: AS/NZS CISPR22:2006Compliant Standards: CSA C22.2 No. 60950-1Compliant Standards: C-TickCompliant Standards: CULusCompliant Standards: EN 60950-1 Second EditionCompliant Standards: EN55022 Class ACompliant Standards: EN55024Compliant Standards: FCC Part 15 BCompliant Standards: IEC 60950-1 Second EditionCompliant Standards: TUVCompliant Standards: UL 60950-1 Second EditionCompliant Standards: VCCI Class A
-
43222612
