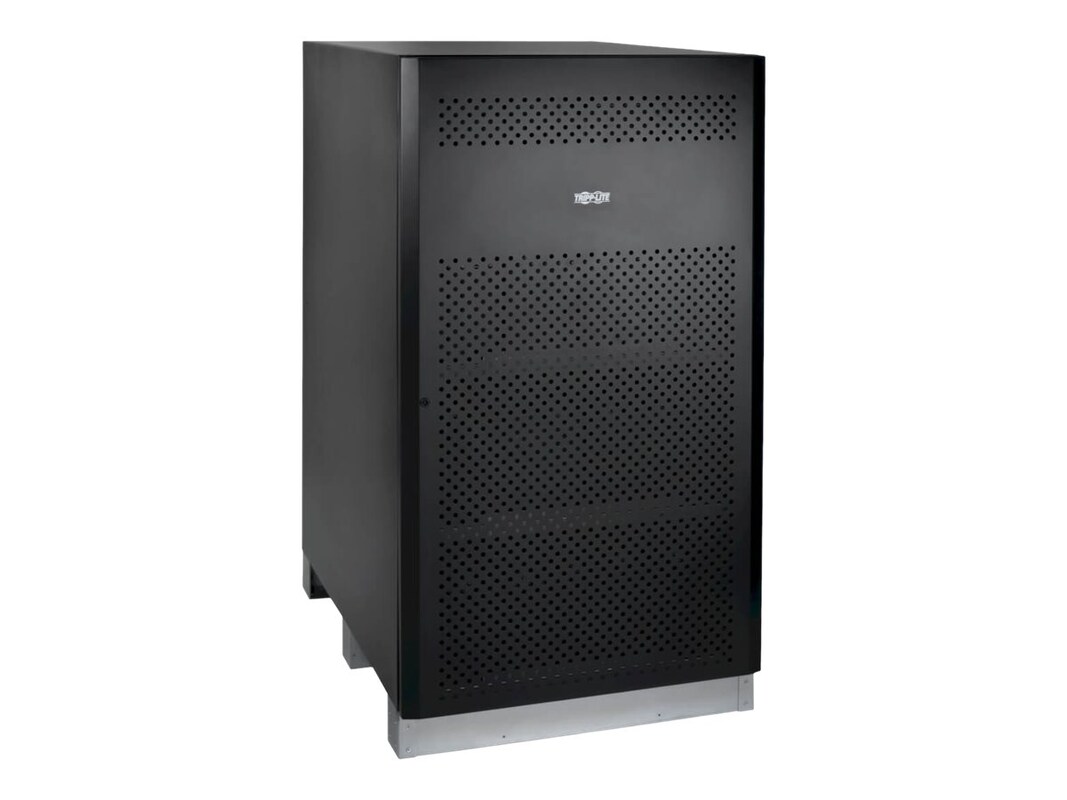

+/-240VDC Backup Battery Pack - You Provide the Batteries
The BP480V65-NIB is compatible only with Tripp Lite's 3-phase S3M30KX-NIB, S3M40KX-NIB, S3M60KX, S3M80KX, S3M100KX, S3M120KX, S3M160KX, S3M200KX and other UPS systems that specify the use of this battery pack. The UPS battery pack includes the steel enclosure and all required internal wiring and accessories for a quantity of 40 user-supplied 65Ah internal batteries (batteries not included). For the same battery pack with internal batteries included, see Tripp Lite's BP480V65.
Daisy-Chain Multiple Cabinets for Even Longer Extended-Run Operation
Multiple battery pack cabinets may be connected in parallel to provide the 3-phase UPS system with more runtime. Up to three external battery packs may be connected to the S3M30KX-NIB, S3M40KX-NIB, S3M60KX and S3M80KX. The S3M100KX, S3M120KX, S3M160KX and S3M200KX units can handle as many as seven BP480V65-NIBs connected in parallel. Hardwire installation is safe and simple. Circuit breakers provide overcurrent protection. Internal disconnect for battery isolation is included.
One-Year Warranty
The BP480V65-NIB is backed by a one-year warranty, ensuring reliability and performance.
The BP480V65-NIB is compatible only with Tripp Lite's 3-phase S3M30KX-NIB, S3M40KX-NIB, S3M60KX, S3M80KX, S3M100KX, S3M120KX, S3M160KX, S3M200KX and other UPS systems that specify the use of this battery pack. The UPS battery pack includes the steel enclosure and all required internal wiring and accessories for a quantity of 40 user-supplied 65Ah internal batteries (batteries not included). For the same battery pack with internal batteries included, see Tripp Lite's BP480V65.
Daisy-Chain Multiple Cabinets for Even Longer Extended-Run Operation
Multiple battery pack cabinets may be connected in parallel to provide the 3-phase UPS system with more runtime. Up to three external battery packs may be connected to the S3M30KX-NIB, S3M40KX-NIB, S3M60KX and S3M80KX. The S3M100KX, S3M120KX, S3M160KX and S3M200KX units can handle as many as seven BP480V65-NIBs connected in parallel. Hardwire installation is safe and simple. Circuit breakers provide overcurrent protection. Internal disconnect for battery isolation is included.
One-Year Warranty
The BP480V65-NIB is backed by a one-year warranty, ensuring reliability and performance.
-
347.50 lbs
-
Extends runtime of compatible UPS systems using special +/240VDC configuration
Requires 40 user-supplied 65Ah sealed lead acid batteries for operation
The battery cabling on this cabinet is designed for batteries that have "threaded battery posts" as described on the battery cabinet owner’s manual
Black steel cabinet matches UPS systems to give your server room a consistent look
Requires hardwire installation; circuit breakers provide overcurrent protection
Multiple battery pack cabinets may be connected in parallel to increase runtime
-
External Battery Pack (Batteries not included), Cable for jack, Attachment hardware for battery cable, documentation
-
Color: BlackForm Factor: ExternalManufacturer Product Line: Tripp LiteModel: External UPS Battery Pack, 40 65Ah, No Batteries Included - Compatible S3MX-Series 3-Phase UPS SystemWeight Taxonomy: 347.44lbs
-
59.1"h x 32.5"w x 44.7"d
-
Battery Capacity: 65AhBattery Type: UPS battery
-
This product is subject to our return policy. Please see our complete return policy for details.
-
347.45 lbs
-
Compliant Standards: RoHS
-
26111700
-
Warranty Period: 1-year warranty
